TRAVELSCOOT® Smart Luggage Kit Escape - Ablage-Plattform vorne
89,50 €*
Lagernd ✓, Test im Shop möglich 🗸, Lieferzeit:
- bei Versand: 1-3 Tage
- bei Abholung: sofort 🗸
Produktnummer:
13927.2
Produktinformationen "TRAVELSCOOT® Smart Luggage Kit Escape - Ablage-Plattform vorne"

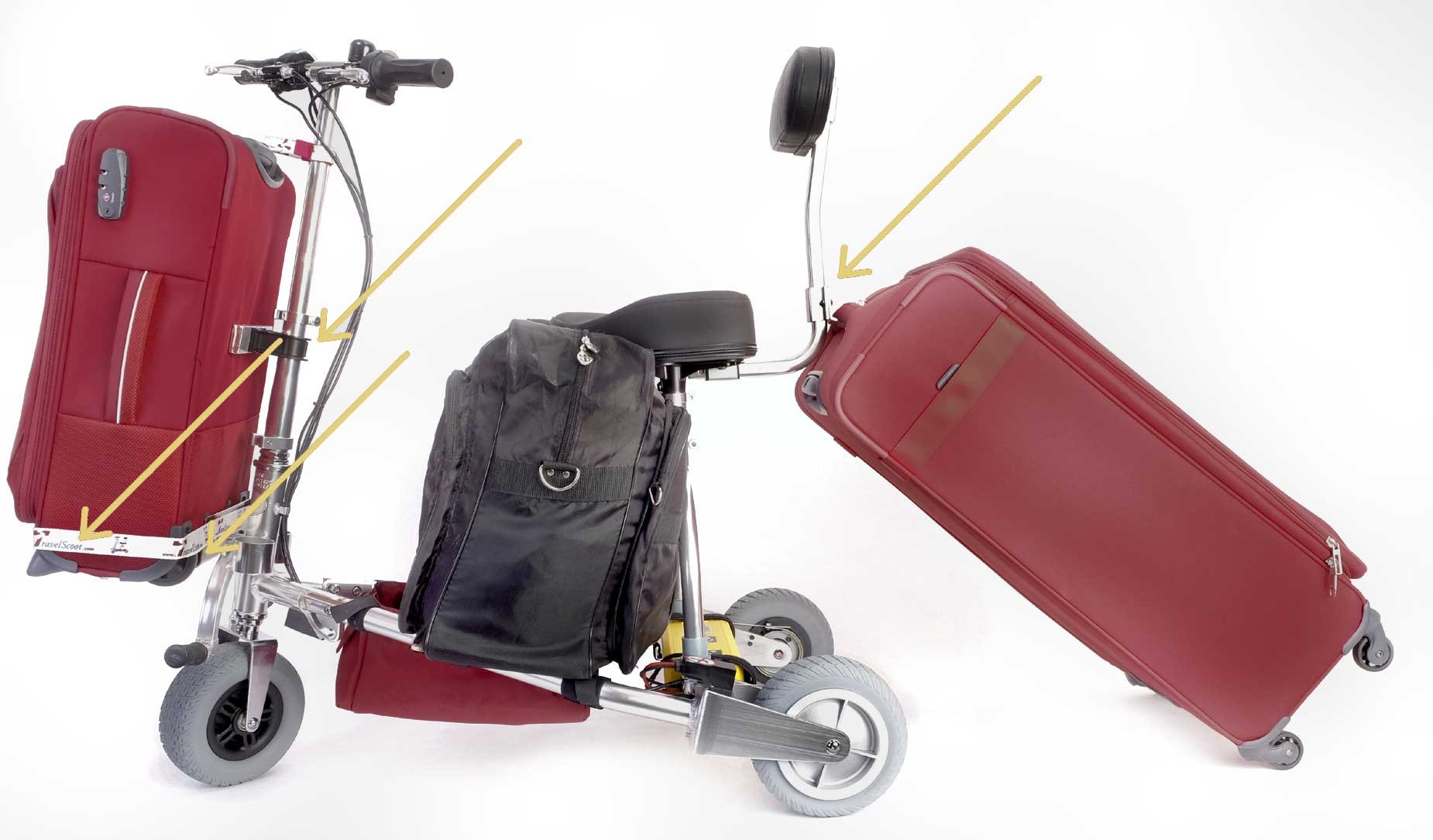

Bauteile aus Gesamtset zur Befestigung von maximal viel Gepäck am TRAVELSCOOT Escape & Shopping Cruiser
Bestehend aus:
Adapterschiene (zur Aufnahme der Ablage Plattform vorne)
Ablage-Plattform (L-förmiges Profil zur Aufnahme von Gepäck vorne)
Gurtsysteme zur Verzurrung des Gepäcks
Omega-förmiges Kunststoff-Teil (stabilisiert Gepäckt vorne an der Lenksäule)
Die abgebildeten Koffer und Reisetaschen sind nicht Bestandteil des Sets!
Bestehend aus:
Adapterschiene (zur Aufnahme der Ablage Plattform vorne)
Ablage-Plattform (L-förmiges Profil zur Aufnahme von Gepäck vorne)
Gurtsysteme zur Verzurrung des Gepäcks
Omega-förmiges Kunststoff-Teil (stabilisiert Gepäckt vorne an der Lenksäule)
Die abgebildeten Koffer und Reisetaschen sind nicht Bestandteil des Sets!
| ••• PRODUKTKATEGORIE: | REISEZUBEHÖR |
|---|
| Hersteller "TRAVELSCOOT"
TravelScoot Hartmut Huber
Grovestrasse 2
D-80997 München
E-Mail: international@travelscoot.com
Frage : Hi, What parts are included in support platform front?
Von : einem Kunden
Antwort des Shopbetreibers:
Dear, all parts except the hook for the luggage on the rear - back rest.
1) Remove part (see arrow)
S

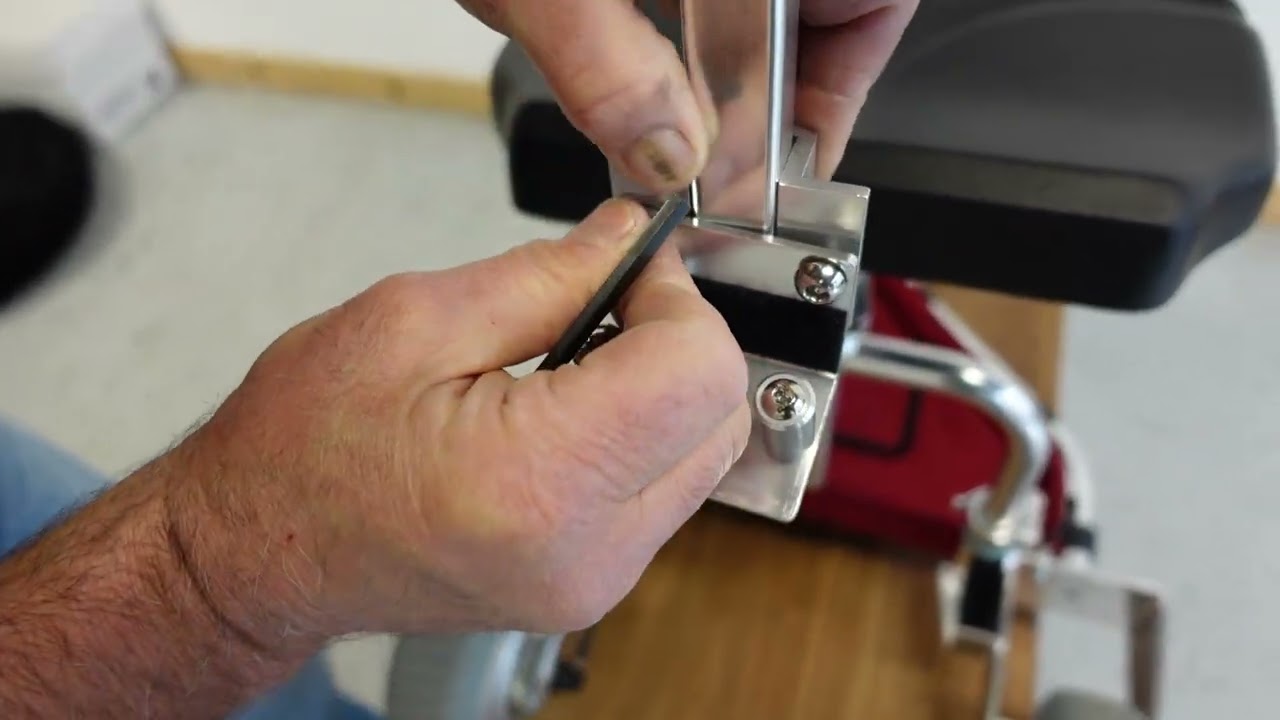

2) Insert the adapter rail (B) into the U-shaped basket
holder so that the smooth side is at the back.
B,
N
The two small screws act as locking pins.
The two small screws act as locking pins and are inserted into the holes
m 74
3) Slightly loosen the round-head screws and remove the
the angled storage platform (A) with the keyhole
with the keyhole openings over the screw heads and
and lower it into the slot. Tighten the screws
tighten the screws.
4) Snap the omega-shaped plastic part (spacer holder) (C)
over the steering column and attach the aluminium tube strip (C)
to it with the Velcro surfaces.
5) Attach the two short straps (D) to the case handle.
6) Attach the longer strap (E) with the Velcro surfaces to the
Traveiscots on the handle. the spacer holder =
(©) and strap (E) and stow them in your hand luggage.
7) Move the TravelScoot handlebars to the top position and
lock the lifting clamp.
Place the suitcase on the storage platform (A) and secure it with the short straps
the short straps (D) around the top of the steering column so that the suitcase
firmly against the spacer (C). The cables leading to the
to the control elements must be free and the handlebars must
remain rotatable. If this is not possible, the case does not comply with
the IATA dimensions.
Hold the belt over the case from below and tighten the belt clamp.
tighten. .
8) screw the rolling suitcase pulling device (F) onto the backrest holder
as far down as possible,
'
9) Hang up the wheeled suitcase.
After sitting on the seat
another piece of luggage
under the seat
)
Shopping br
10) Loop the straps (6) into the handles of the crate
and mark the top edge of the box in the centre. -p
8 17) Lift the crate onto the storage platform (A) so that the
mark with the control column, loop the straps (G) around the Omega
around the Omega spacer (C) and fasten,
Tighten the belt tensioners firmly. The two strong luggage
17] Attach the two strong rubber straps (H) to the box and to the cane/crutch holder.
and on the cane/crutch holder. These act as tilt dampers.
>
'Attention: A crate as in step
11.) can be filled with approx. 20
kilos, but care must be taken with regard to weight.
However, care must be taken with regard to the weight. As the Travelscoot
itself only weighs 16 kilos, there is a risk that the entire loaded structure will fall over the
loaded structure could tip over the front wheel. For this reason, additional containers should be carried on the rear TravelScoot
frame and these should be filled first as a counterweight.
be filled first.
Important: If the loaded crate is to be removed, it must be held and lifted by a second person.
be held and lifted by a second person before the belt buckle is opened and the luggage
the rubber straps (H) are removed
12) Extra belt (} for any use ee
== Sams
ÜravelScoot’
