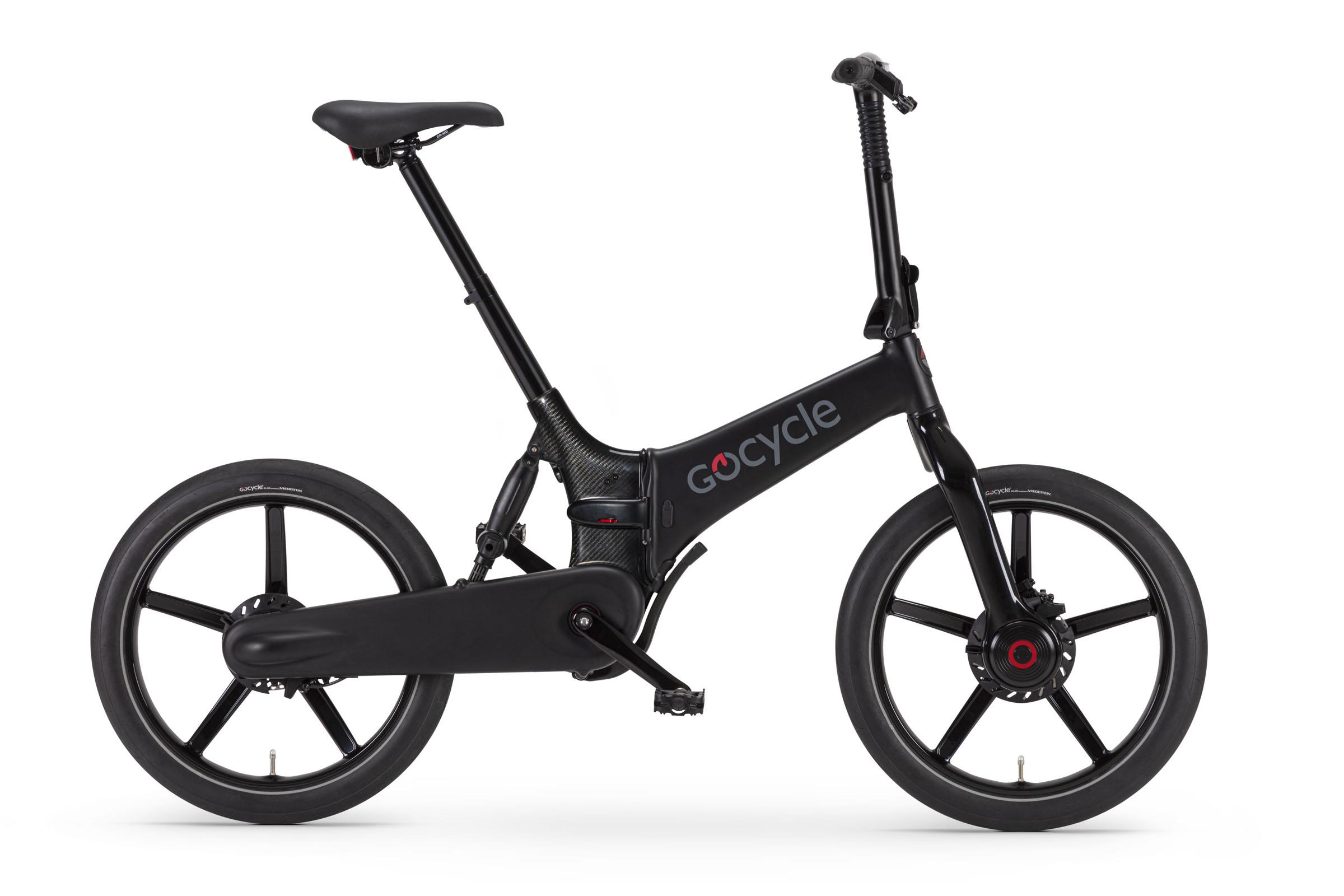

GOCYCLE G4i - schwarz

Produktinformationen "GOCYCLE G4i - schwarz"

All-New G4drive – Smooth and quiet, Gocycle’s bespoke new G4drive™ delivers more torque with class leading compact packaging.
Carbon Fibre mid-frame – This central component of G4’s monocoque chassis has the important job of connecting the hydroformed aluminium front frame and Gocycle’s patented magnesium Cleandrive.

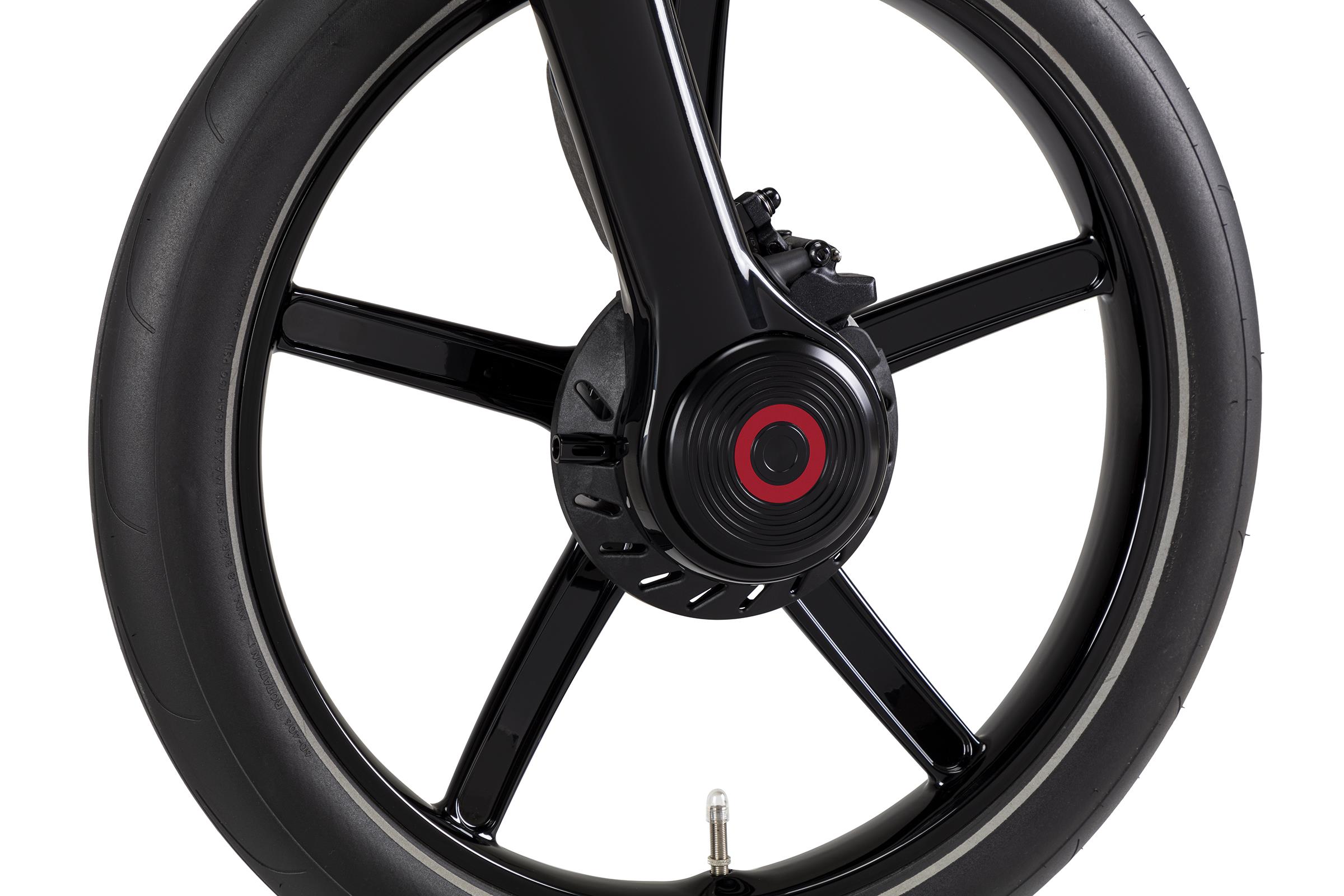

Carbon Fibre Single-Sided Front Fork – The Gocycle G4’s all-new single-sided carbon front fork houses the fully-integrated G4drive electric motor. Its smooth and flowing lines help to reduce stress and overall weight.
New Gocycle Tyre – MotoGP-inspired treaded tyre infused with silica compound for superior grip and sure -footed handling

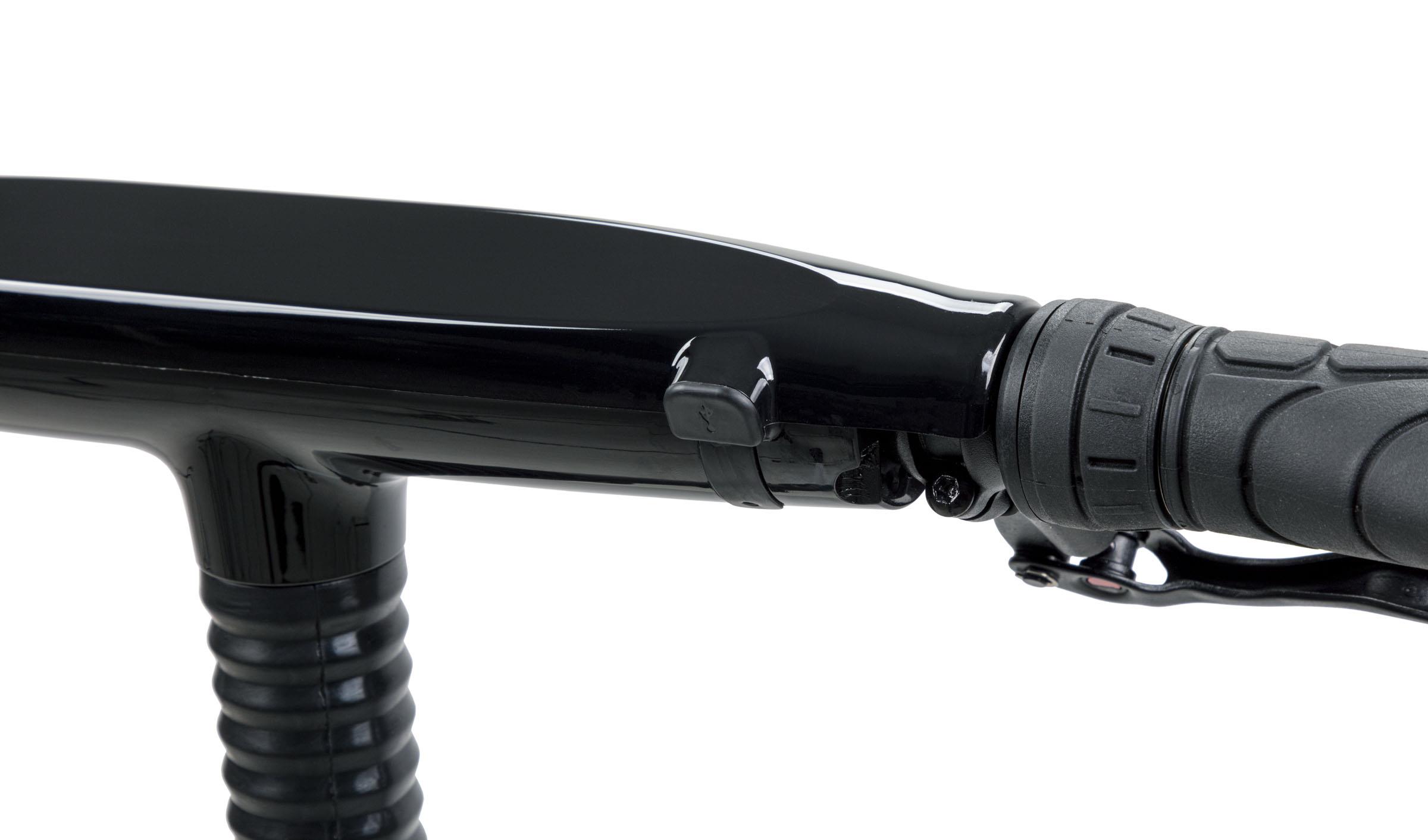

Integrated USB Port – 1amp USB charger for phone charging on the go
Low Energy Bluetooth ­– Improved phone and Gocycle app connectivity

Frame Colour G4i Matte Black
Frame Material Hydro-formed 6061 T6 alloy front frame, carbon fibre mid-frame and injection moulded magnesium Cleandrive
PitstopWheel® Magnesium with center hub mount
PitstopWheel® Colour Gloss Black
Motor Drive Control Pedal Torque Sensing

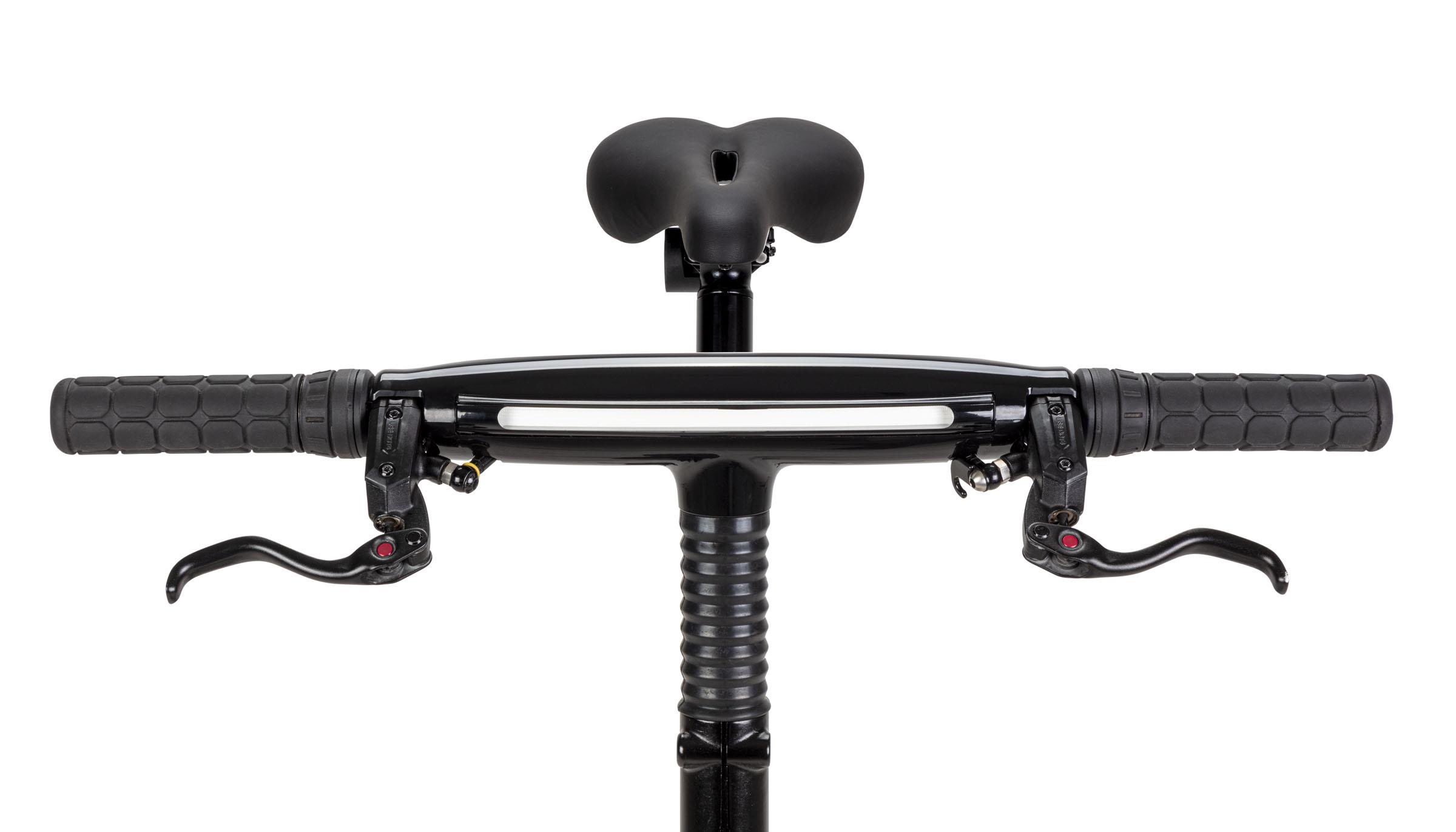

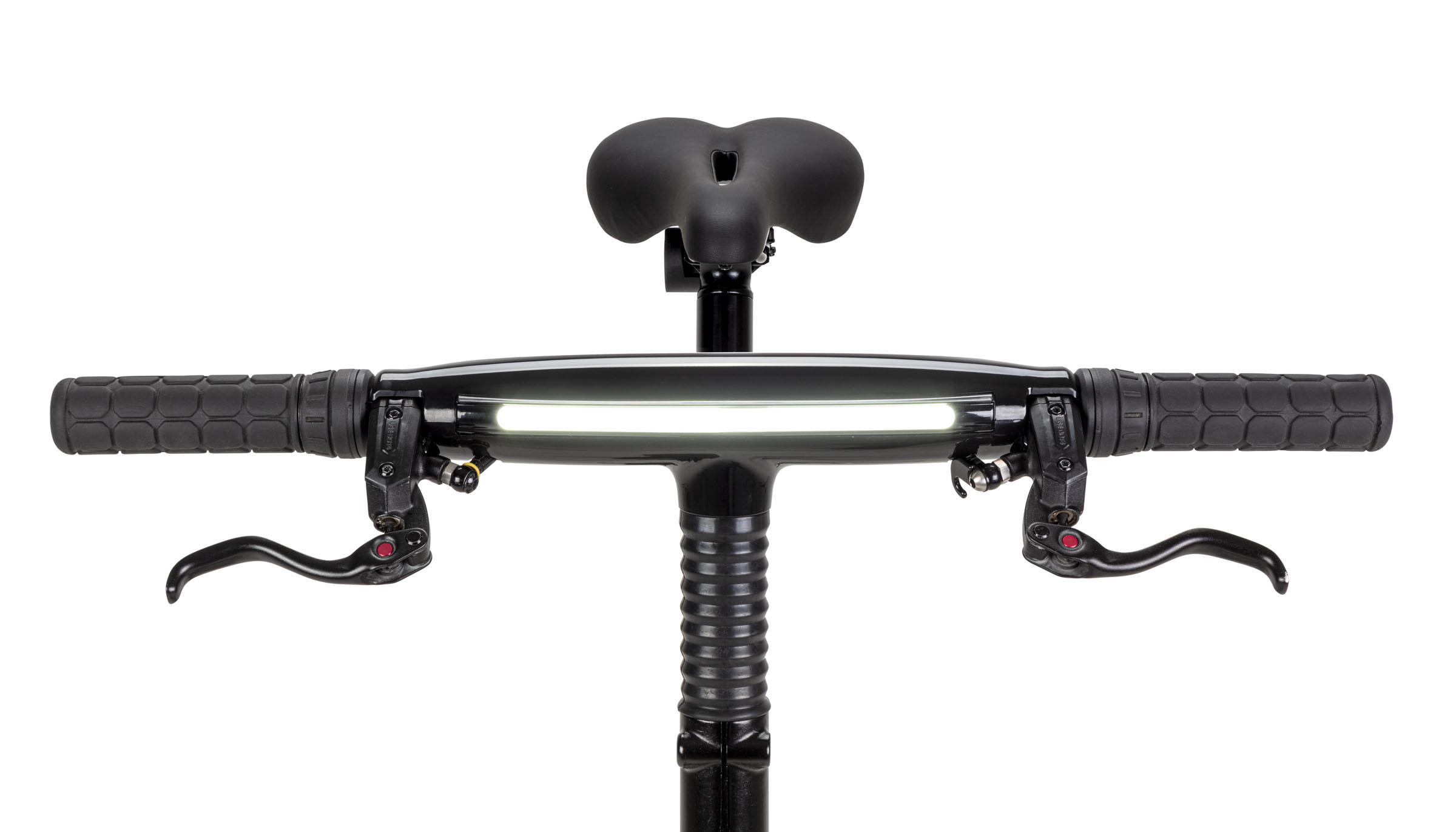

Daytime Running Light (DRL)** Gocycle Proprietary Light Pipe Technology, 4 running modes, user selectable
Smart Device Connectivity*** GocycleConnect® App via wireless Bluetooth®
Riding Modes City, Eco, On-Demand, Custom. Multiple, programmable through GocycleConnect™ App
Electric Drive Speed**** 20 mph / 25 kph
Range Up to 80km (50 miles), depending on pedal input
Motor***** Gocycle proprietary front hub motor, G4drive with traction control 500 watt US / 250 watt EU continuous
Battery****** Quick removable lithium ion: 10.4Ah, 36V, approx 375 Wh
Charging Time 3.5 hours
Motor Controller Gocycle proprietary
Handlebar Display Integrated dashboard display with fuel gauge, speed, gear, efficiency or Smart Device and GocycleConnect™ App
Shifting Gocycle electronic Predictive Shifting™
Transmission Patented Cleandrive® Shimano Nexus 3-speed
Gear Inches 1st=39.1 in, 2nd=53.3 in, 3rd=72.5 in
Gear Development 1st=3.1 m, 2nd=4.3 m, 3rd=5.8 m
Brakes Hydraulic disk, front and rear
Tyres Gocycle Tyre (406-60, 20 x 2.25 in)
Front Motor Fork Gocycle proprietary, single-sided, Carbon Fibre, fixed
Rear Suspension Gocycle Lockshock™ 25mm (1 in) travel

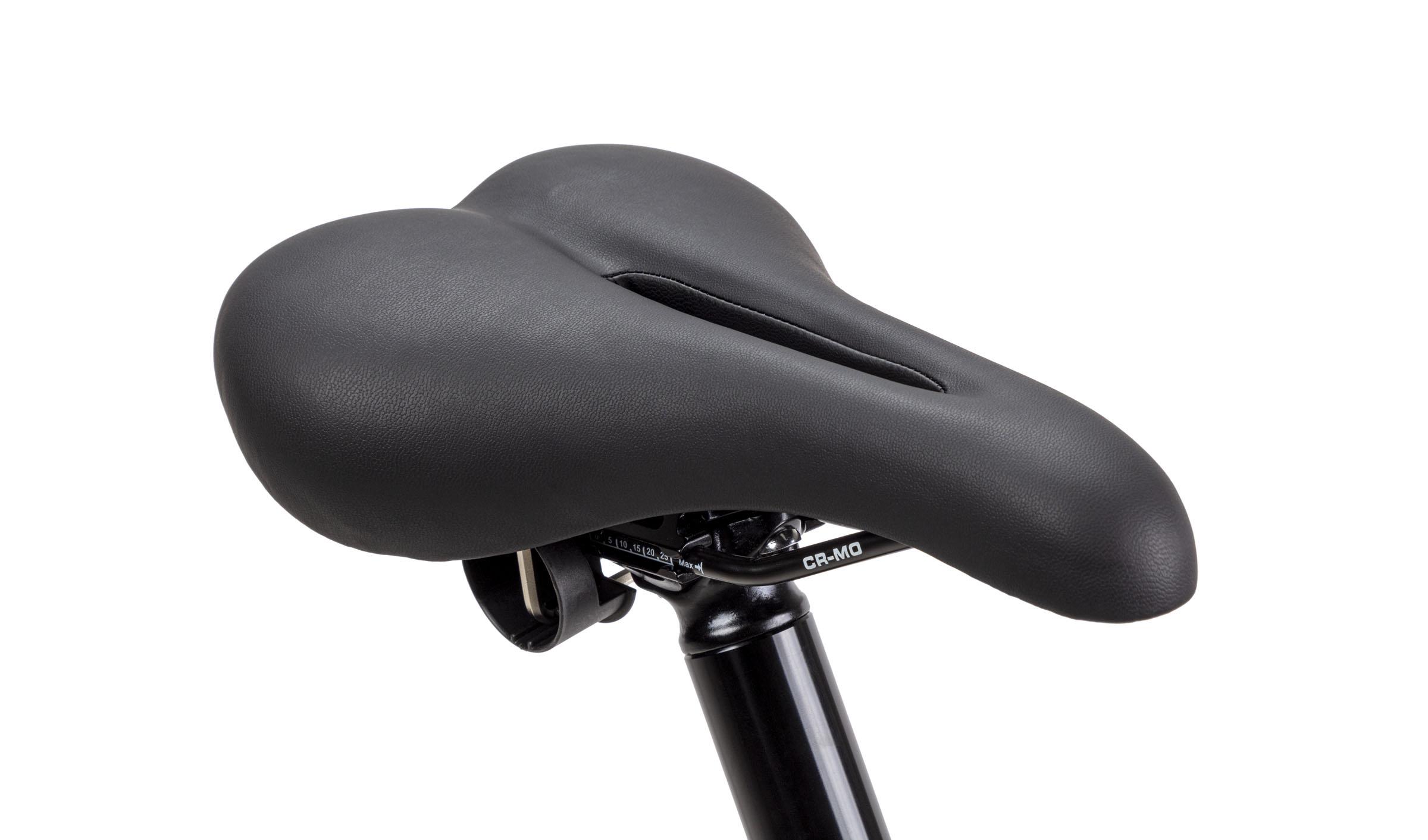

Saddle Velo D2 Comfort, Chro-mo Rails
Seat Post 34.9 mm Aluminium
Pedals MKS UX-D, One side EZY Detachable Pedal

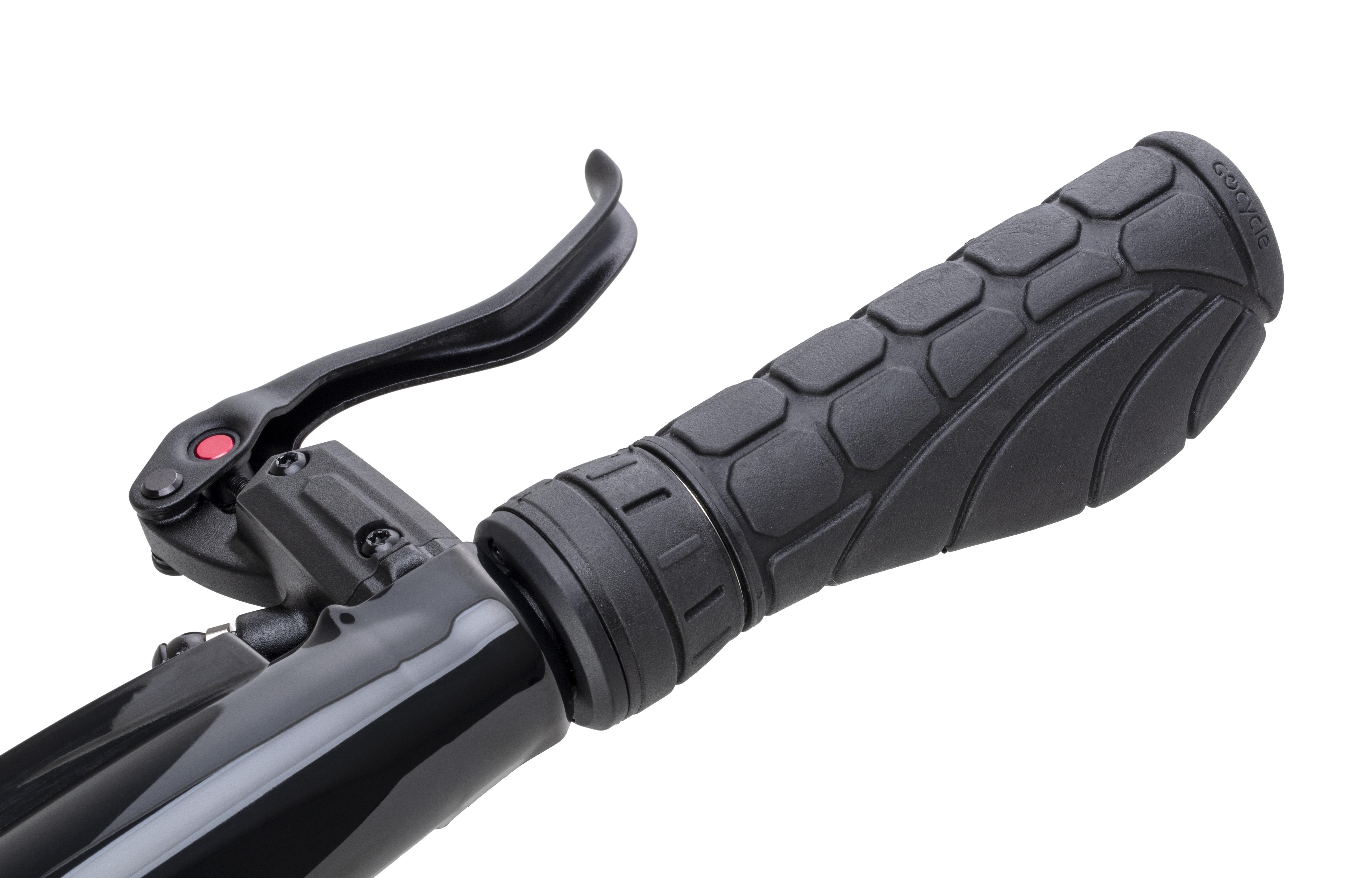

Grips Gocycle Ergo Comfort
Frame Size and Fit Universal Vgonomic™
Minimum Saddle Height******** 880mm (34.5")
Handlebar Stem Quick folding and height adjustment
Head Angle 70°
Seat Tube Angle 68°
Wheelbase 1065mm (42 in)
Bottom Bracket Height 275mm (11.5 in)

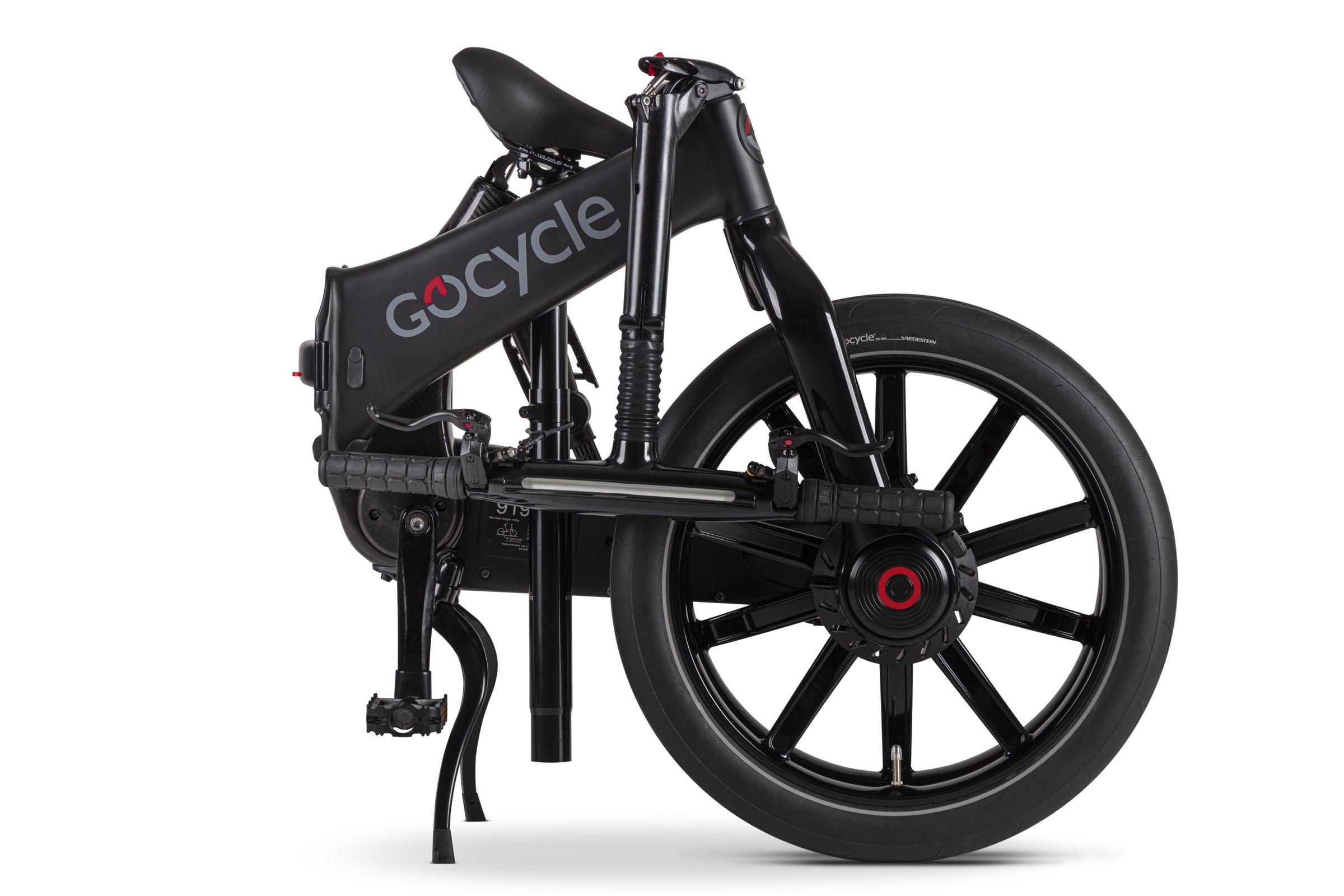

Folding Method Fast Folding frame and handlebar
Stowable Dimensions Kickstand down: L830mm x W370mm x H750mm (L32.7in x W14.6in x H29.5in) with removable pedal detached. Kickstand up: L880mm x W370mm x H615mm (L34.6in x W14.6in x H24.2in) with removable pedal detached
Approximate Weight 16.6kg (36.6 lbs) excluding kickstand & including pedals
Maximum Rider Weight******* 100kg (220 lbs), including clothing and luggage

*Technical specifications subject to change without notice.

** The purpose of the DRL is to enhance visibility of the Gocycle to other road users only. It is not intended to be a substitute for front and rear lights and should be accompanied with an additional set of front and rear lights approved for the territory you are riding. We recommend that you consult the relevant national safety organization or a reputable cycle dealer on what the minimum recommended lighting requirements are in your particular country or region.

***Electric bicycle speed regulations vary by country—consult your local authority for information.

****Electric bicycle motor regulations vary by country—consult your local authority for information.

*****Battery capacity and performance may vary from battery pack to battery pack.

******This product has been designed with a maximum recommended weight limit of 100kg (220lbs) for the rider, clothing and all luggage, and is intended for use on paved roads. For rider and luggage weight 100-115kg (220-250lbs): riding style, road condition, tire pressures and luggage position may reduce product service life. Luggage weight should not exceed 10% of total rider and luggage weight. Never exceed rider and luggage weight of 115kg (250lbs) at any time. Exceeding this limit will void all warranties and may result in the product being unsafe for operation.

********The minimum saddle height can vary when a different saddle is installed. Gocycle also offers a compact seatpost which reduces the minimum seatpost height by 70mm.

Last updated 08 March 2021

The GocycleConnect 7.0 app supports iOS 8.0 and above on iPhone 4s, iPhone 5, iPhone 5s, 6, 6 plus, 6s, 6s plus, 7, 7 plus, 8, 8 plus, iPhone SE, and iPhone X, XR, XS. The GocycleConnect 7.0 app for Android supports Android versions 4.0, 4.1, 4.2, 4.3, 4.4, 5.0, 5.1, 6.0, 7.0, 7.1, and 8.0 on 11,247 Android dev
