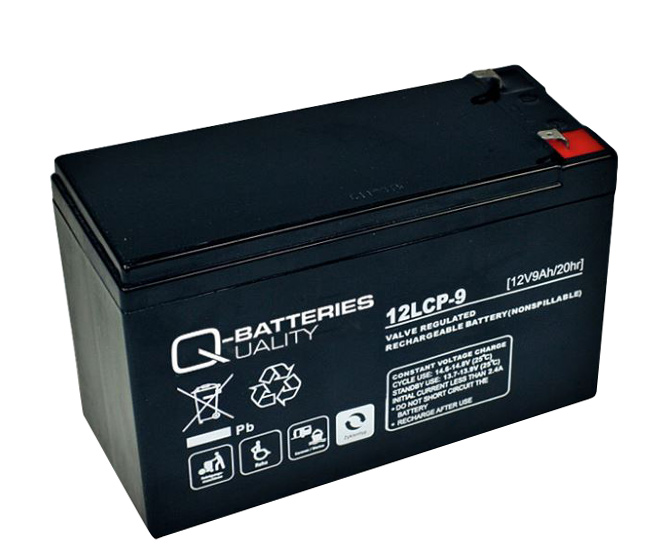

12V 9Ah Bleivliesakku Zyklentyp Q-Batteries AGM - Deep Cycle

Product information "12V 9Ah Bleivliesakku Zyklentyp Q-Batteries AGM - Deep Cycle "

151 x 65 x 94 Specially manufactured for rehabilitation and electrical engineering. 12V 9Ah lead-acid battery as a cycle-resistant version

The batteries in the Q-Batteries LC and LCP series with valve-regulated AGM (Absorbent Glass Mat) technology are specially designed for use in cyclical applications.

Compared to gel batteries, the internal resistance of AGM batteries is significantly lower, allowing them to supply larger amounts of current to consumers when required. Thanks to the use of special lead plates and a special electrolyte, the batteries have an excellent service life and cycle stability.
ATTENTION: Rechargeable batteries require care! Recharge the batteries immediately after each use. Do not store the batteries discharged! In the event of prolonged storage, remove the contact (possibly remove the fuse) between the batteries/device to avoid creeping discharge! Properties:
- Absorbent Glass Mat (AGM) technology
- Maintenance-free (no need to top up with water)
- sealed, valve regulated (VRLA)
- Very low self-discharge, < 3% per month
- Very long service life
- Low internal resistance
- 450-550 cycles at 75% depth of discharge

Technical data:
- Nominal capacity 9 AH (20H)
- Nominal voltage 12 Volt
- Faston connections 4.8mm
- Length 151 mm
- Width 65 mm
- Height 94 mm (without connections)
- Height max. 100mm
- Weight 2.2 kg

--- SUBCATEGORIES ---: LEAD ACCU (Pb)
- Operating voltage range: 12 - 14.8 Volt
| Manufacturer "Q-BATTERIES"
