ACCESSORIES for E-BIKESKETTLER QUADRIGA TOWN & COUNTRY COMP 750 red
SPERRGUT
€3,665.00*
In stock ✓, OPERATING HOLIDAYS until 12.09.25 - dispatch 15.09. 2-3 days
- Product specials:
- Fully networked BOSCH smart system
- Over-the-air updates
- Quality & support "Made in Germany"
- Aluminium frame of the highest quality
Pick your accessory
€109.95*
€129.95*
€112.95*
€89.10*
from €89.00*
€49.95*
€36.95*
€44.95*
from €119.95*
€54.95*
€67.95*
Product number:
14824.2
EAN:
4251238554469
Product information "KETTLER QUADRIGA TOWN & COUNTRY COMP 750 red"

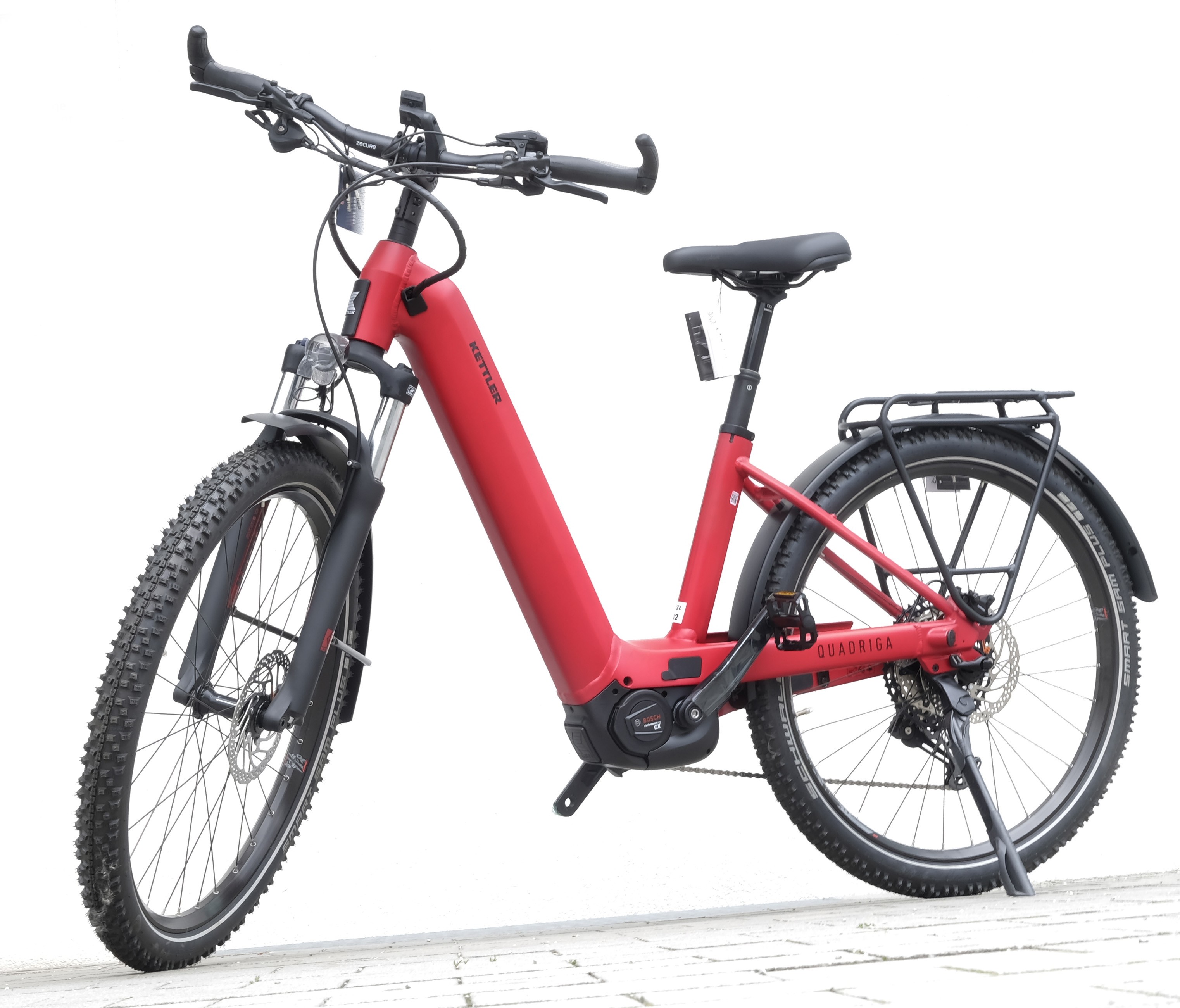

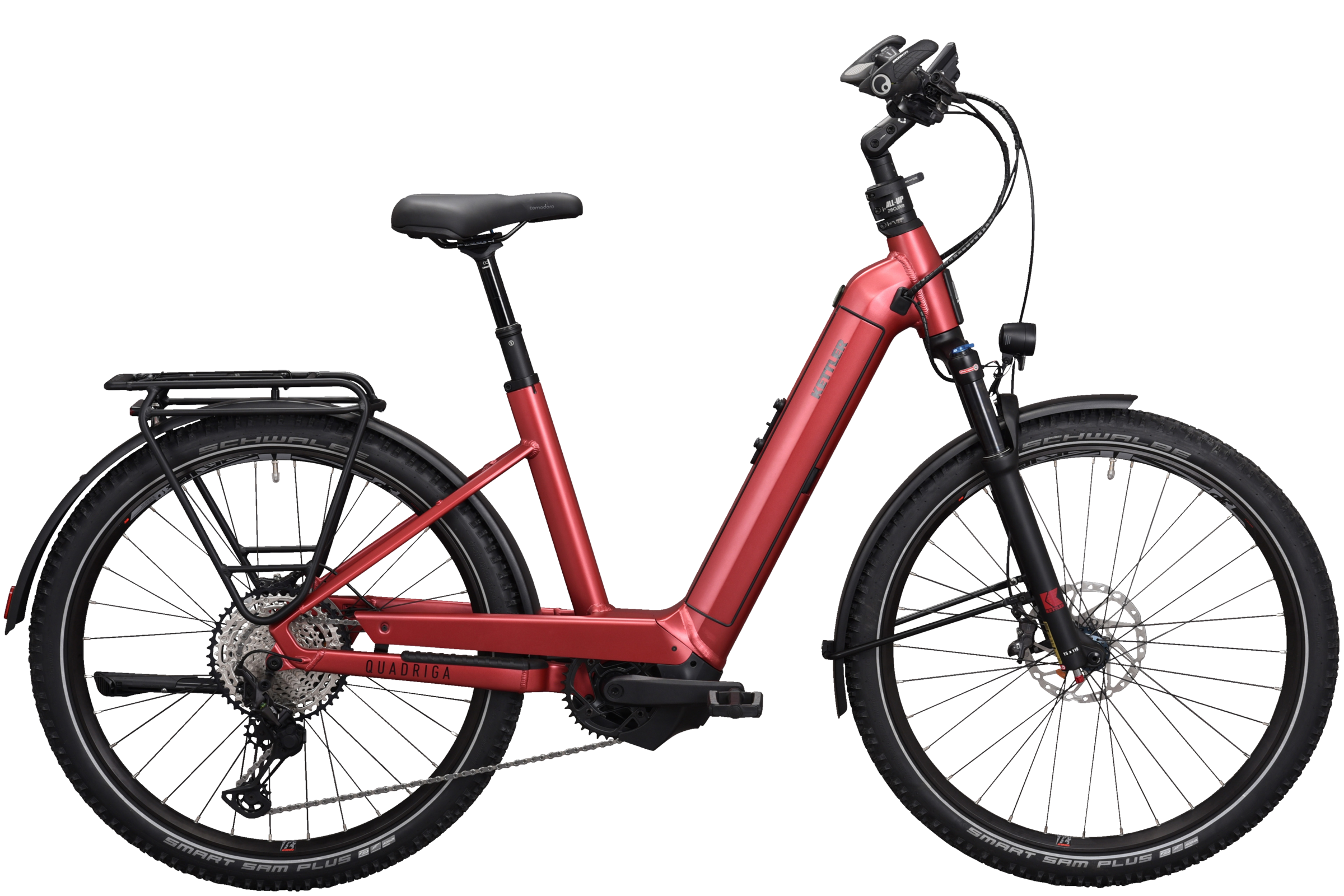

Grippy tyres, 100 mm front suspension travel and a suspended and lowerable seat post (Eurobike Award winner 2019) make the QUADRIGA TOWN & COUNTRY COMP 750 ideal for touring and everyday rides on poor paths and unpaved terrain. Equipped with the new smart system from Bosch - consisting of the E-Bike Flow app, control unit, display, battery and drive - the e-bike is fully connected. The high-torque Bosch Performance Line BES3 CX motor provides a powerful boost, while the integrated 750 Wh battery enables long ranges. All relevant fitness data can be displayed on the keyless Kiox 300 colour display, which can be controlled via the LED Remote. It is also connected to the E-Bike Flow app via the LED Remote. The app can be used to customise riding modes, record activities and integrate fitness apps. With 12-speed derailleur gears, pedalling is easy even on steep climbs. The MonkeyLoad system luggage carrier, the extremely bright 100 lux spotlight and the option of easily attaching a child trailer using the K-Link adapter ensure maximum suitability for everyday use.
SPECIFICATIONS

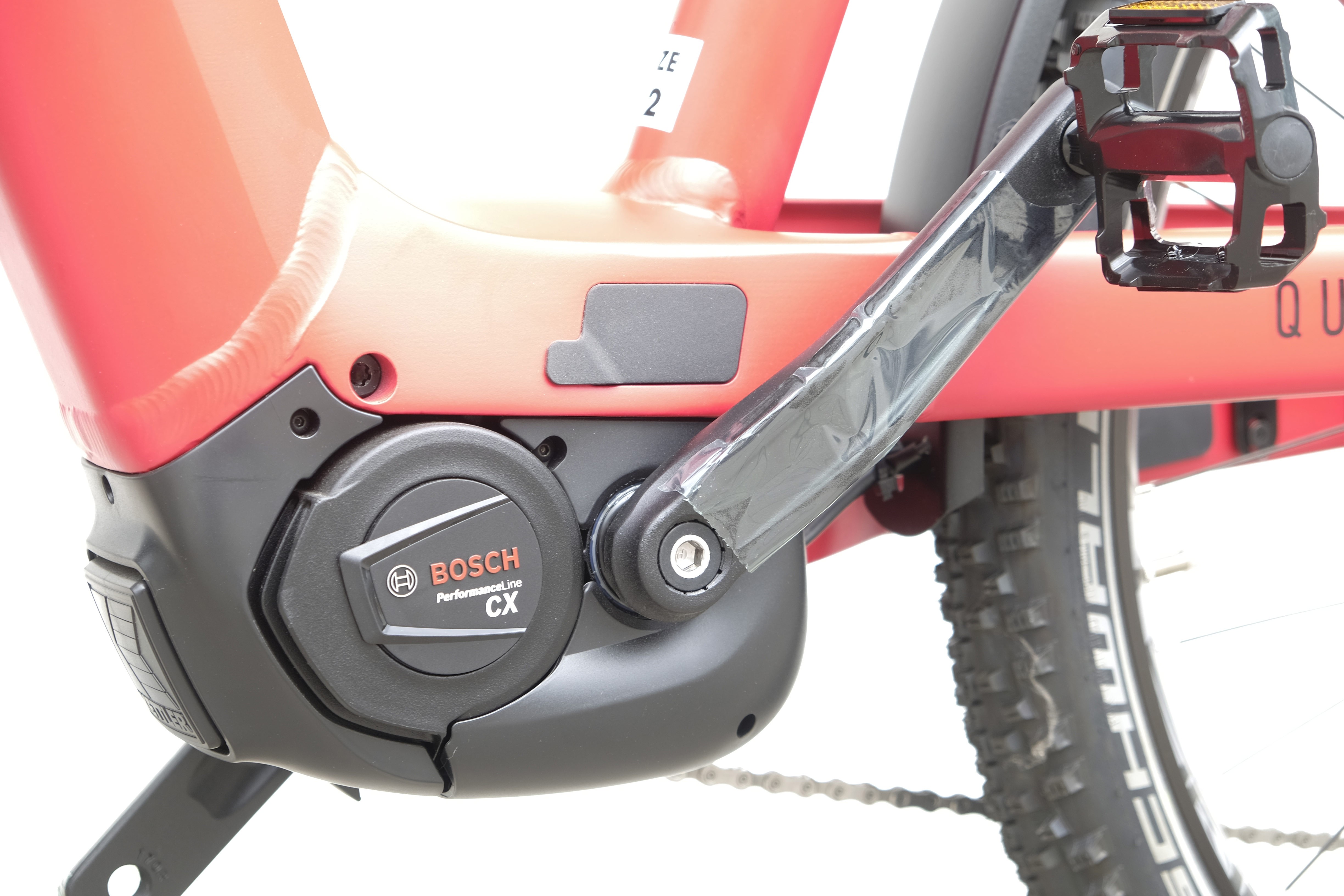

MOTOR Bosch Performance Line CX (Smart System) 25/85Nm MOTOR TYPE Mid-engine MOTOR SUPPORT up to 25 km/h

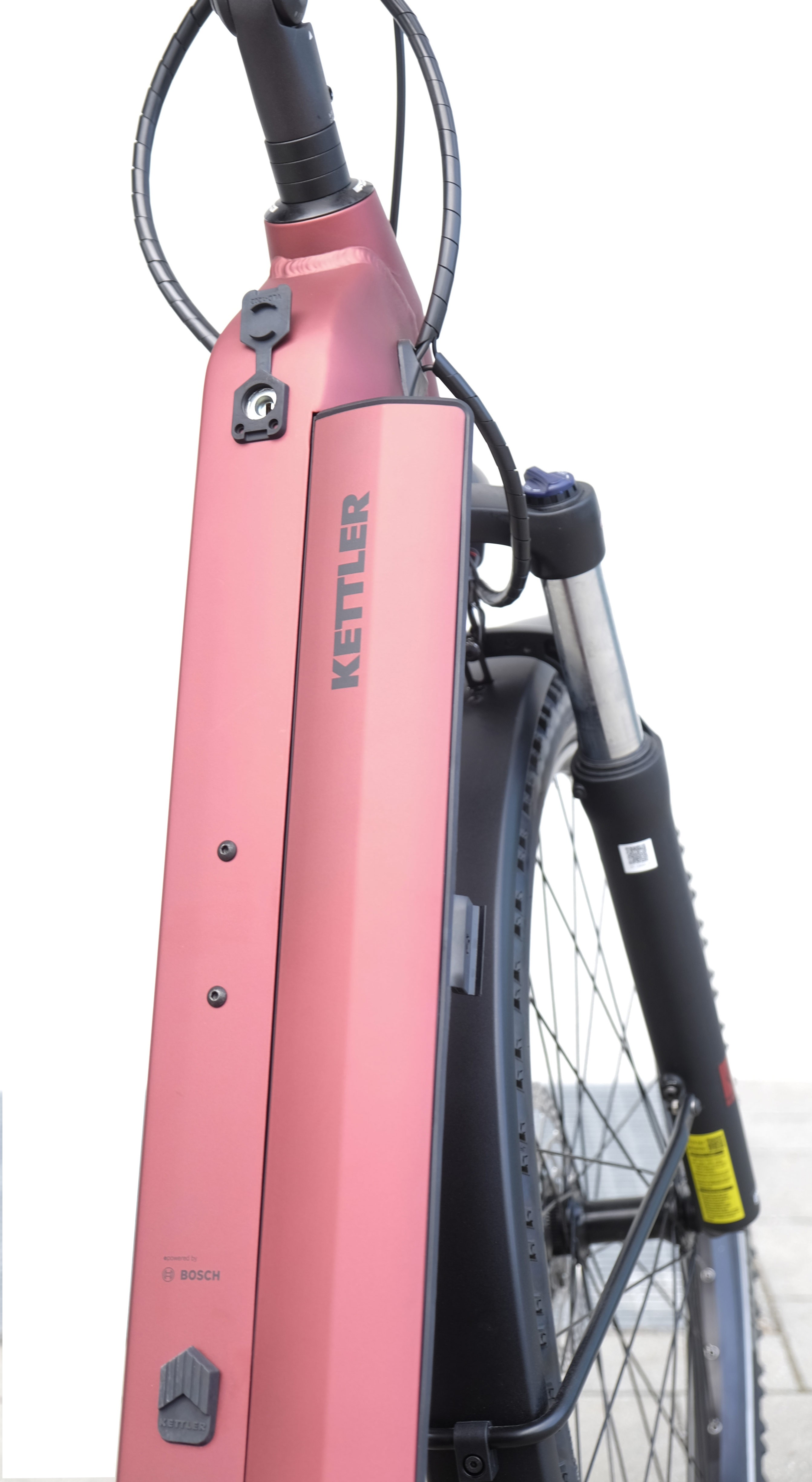

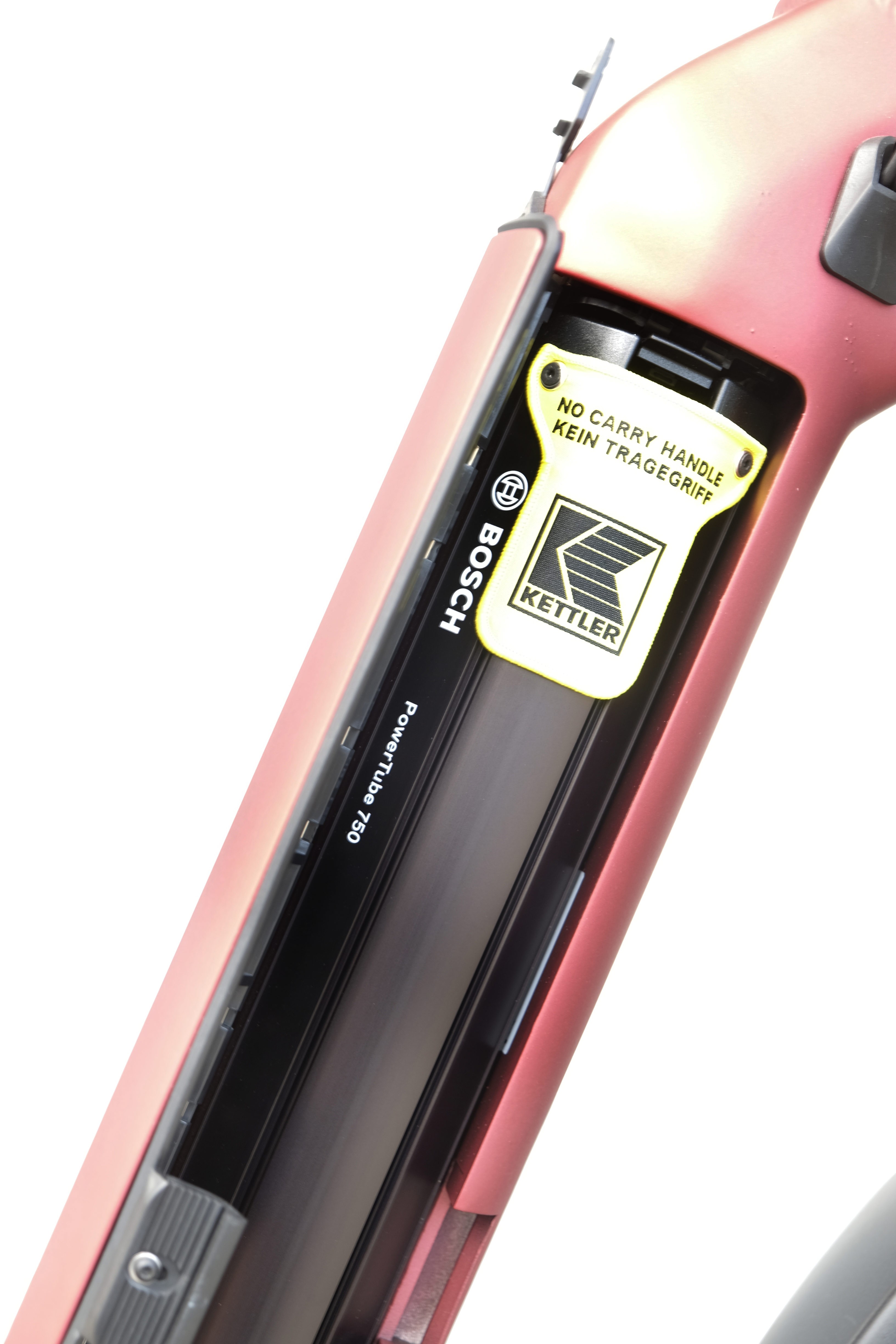

BATTERY Bosch PowerTube Vertical 750
DISPLAY Bosch KIOX 300
FRAME MATERIAL AluminiumPowerful, long range and fully networked
FRAME SIZE 46 cm (see variations)

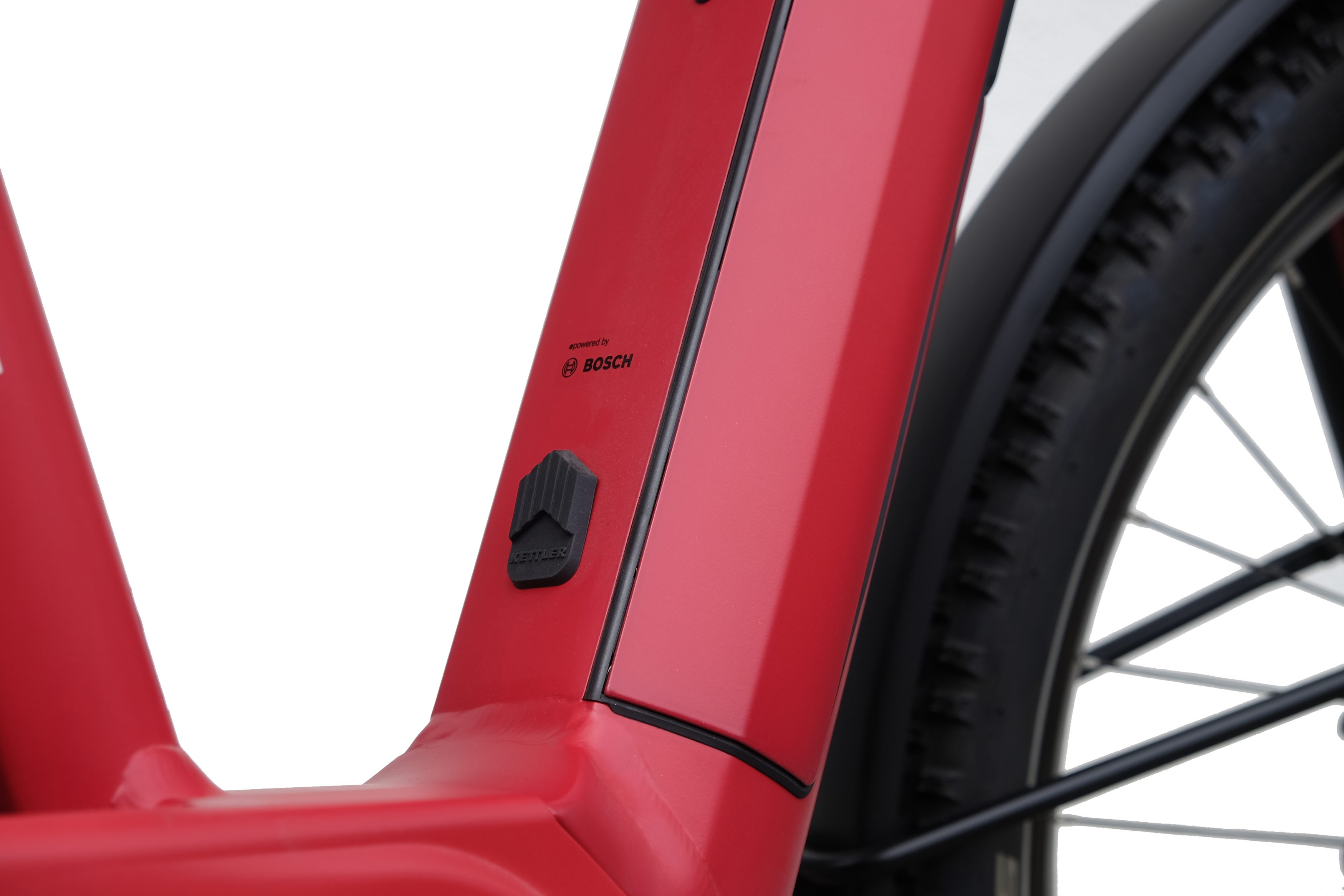

High-quality aluminium frame
Maximum range for many metres in altitude and long tours with the PowerTube 750

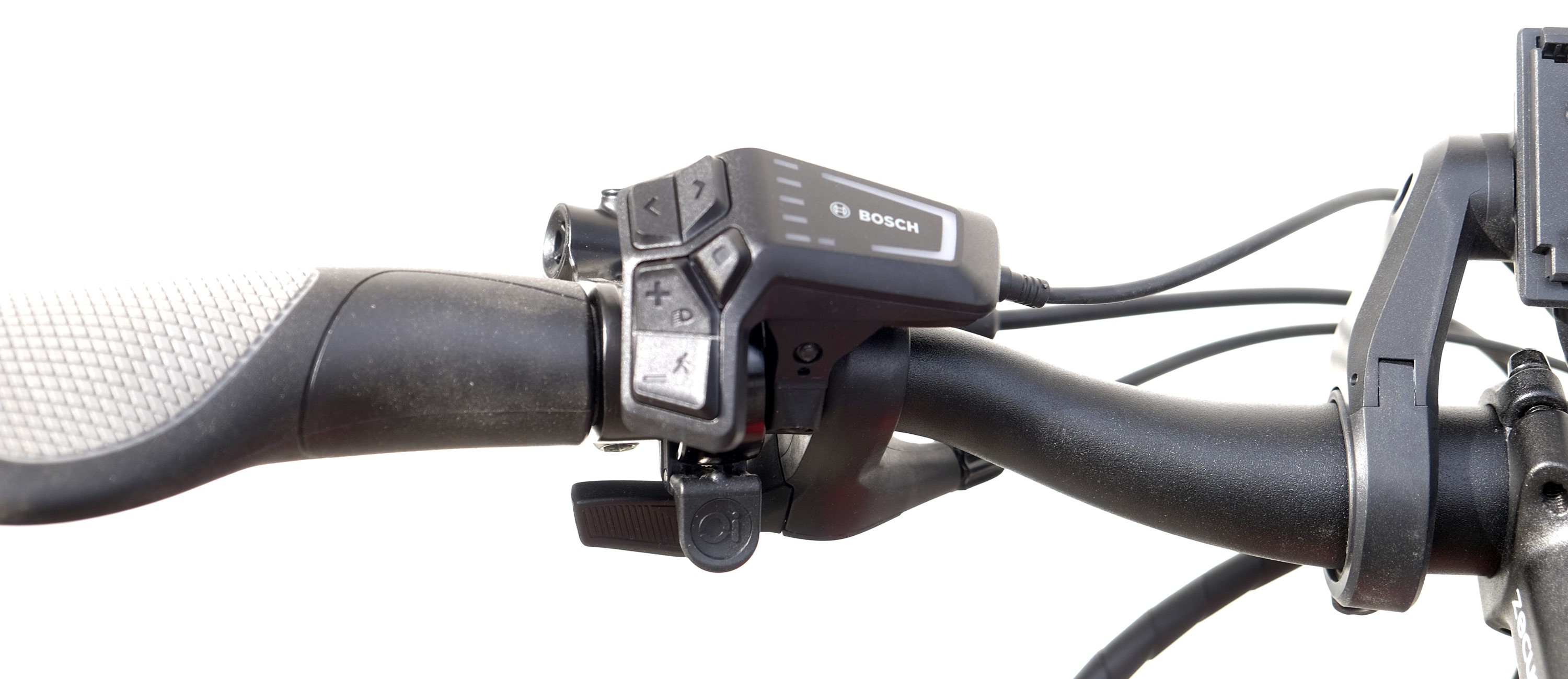

The e-bike system can also be controlled without an additional display using the LED Remote control unit
Grippy tyres, 100 mm front suspension travel and a suspended and lowerable seat post (Eurobike Award winner 2019) make the QUADRIGA TOWN & COUNTRY COMP 750 ideal for touring and everyday rides on poor paths and unpaved terrain Equipped with the new smart system from Bosch - consisting of the E-Bike Flow app, control unit, display, battery and drive - the e-bike is fully networked. The high-torque Bosch Performance Line BES3 CX motor provides a powerful boost, while the integrated 750 Wh battery enables long ranges. All relevant fitness data can be displayed on the keyless Kiox 300 colour display, which can be controlled via the LED Remote. It is also connected to the E-Bike Flow app via the LED Remote. The app can be used to customise riding modes, record activities and integrate fitness apps. With 12-speed derailleur gears, pedalling is easy even on steep climbs. The MonkeyLoad system luggage carrier, the extremely bright 100 lux spotlight and the option of easily attaching a child trailer using the K-Link adapter ensure maximum suitability for everyday use.

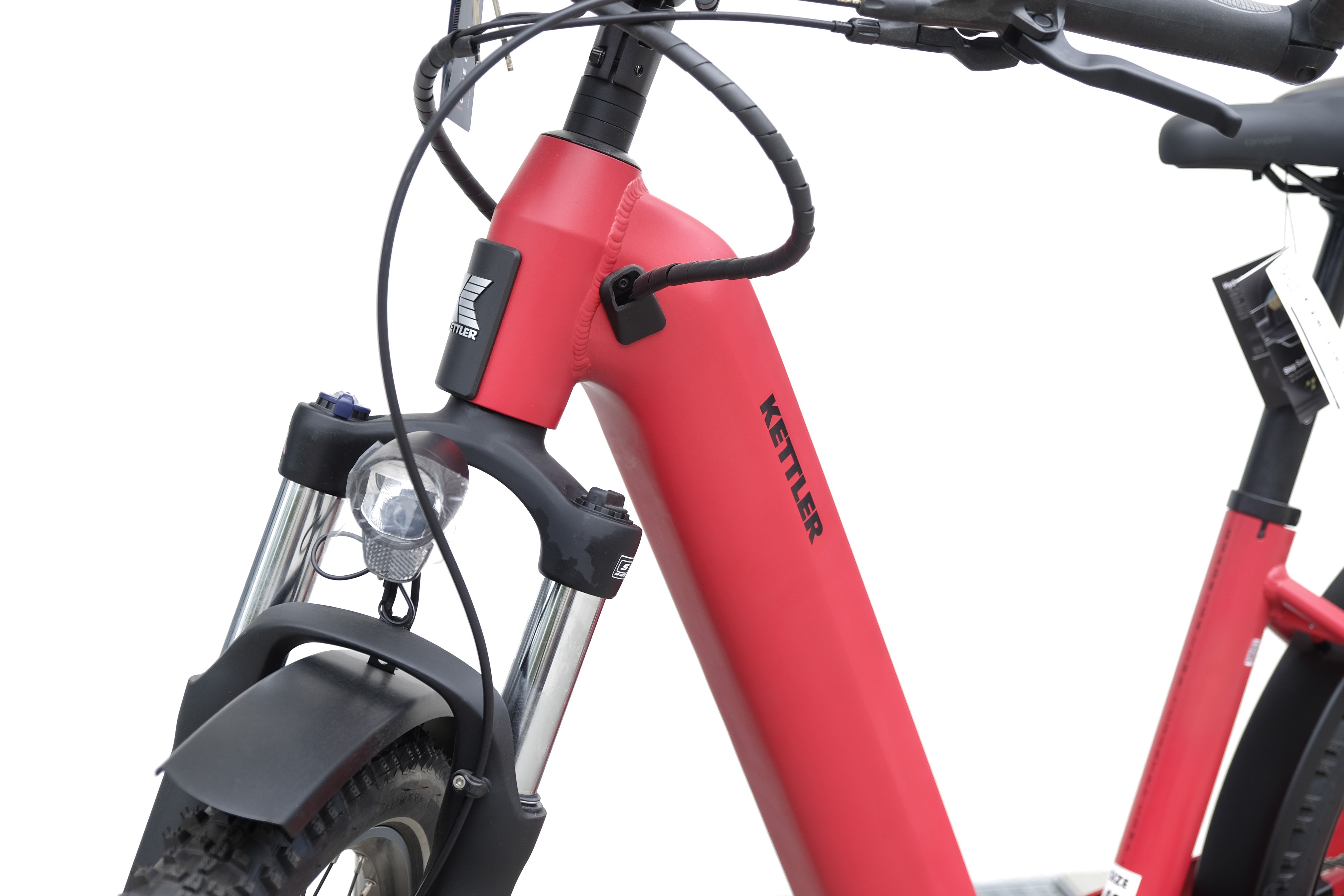

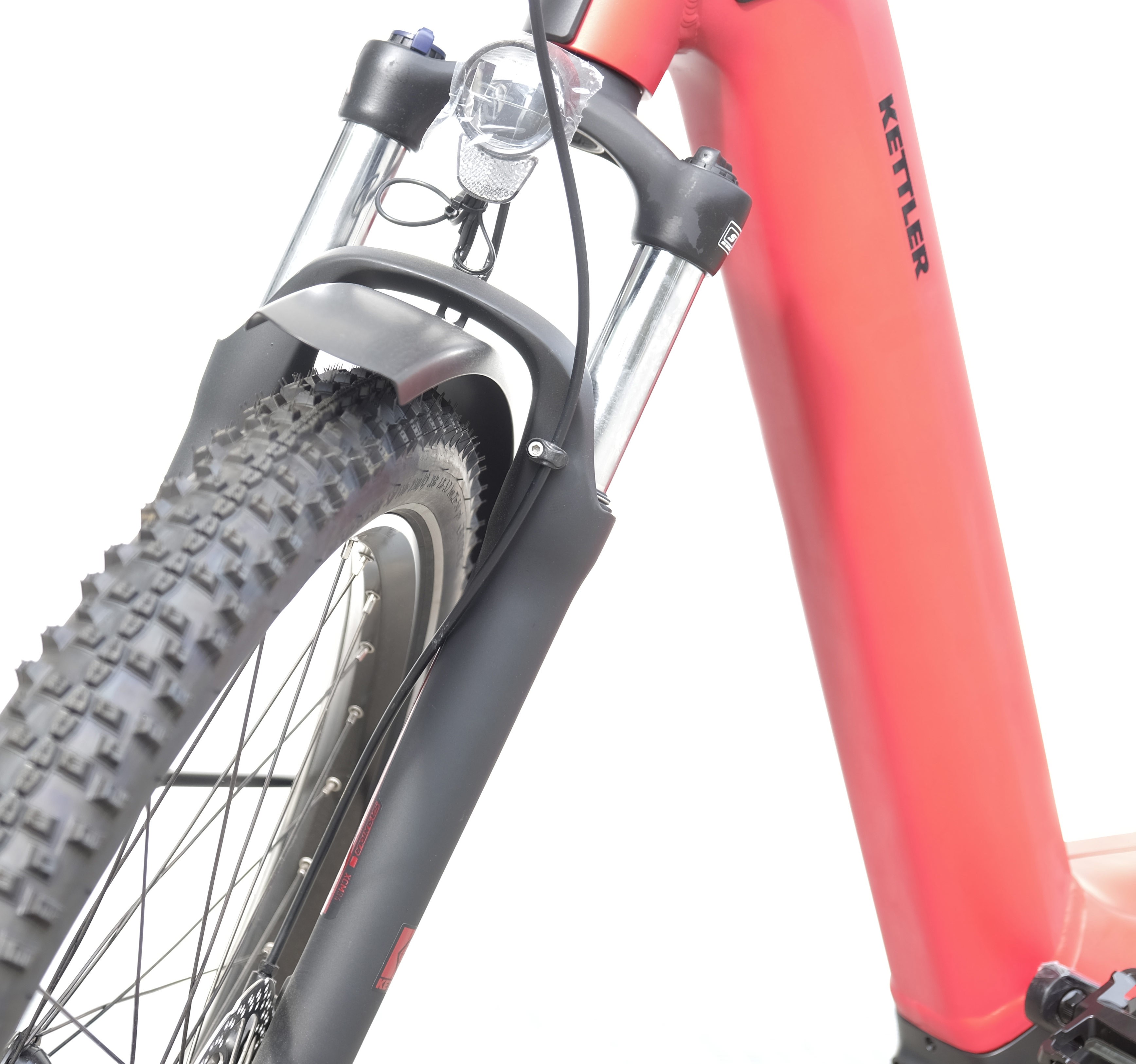

FORK SR SUNTOUR XCM34-Boost SPRING TRAVEL (FRONT)100.0 mm

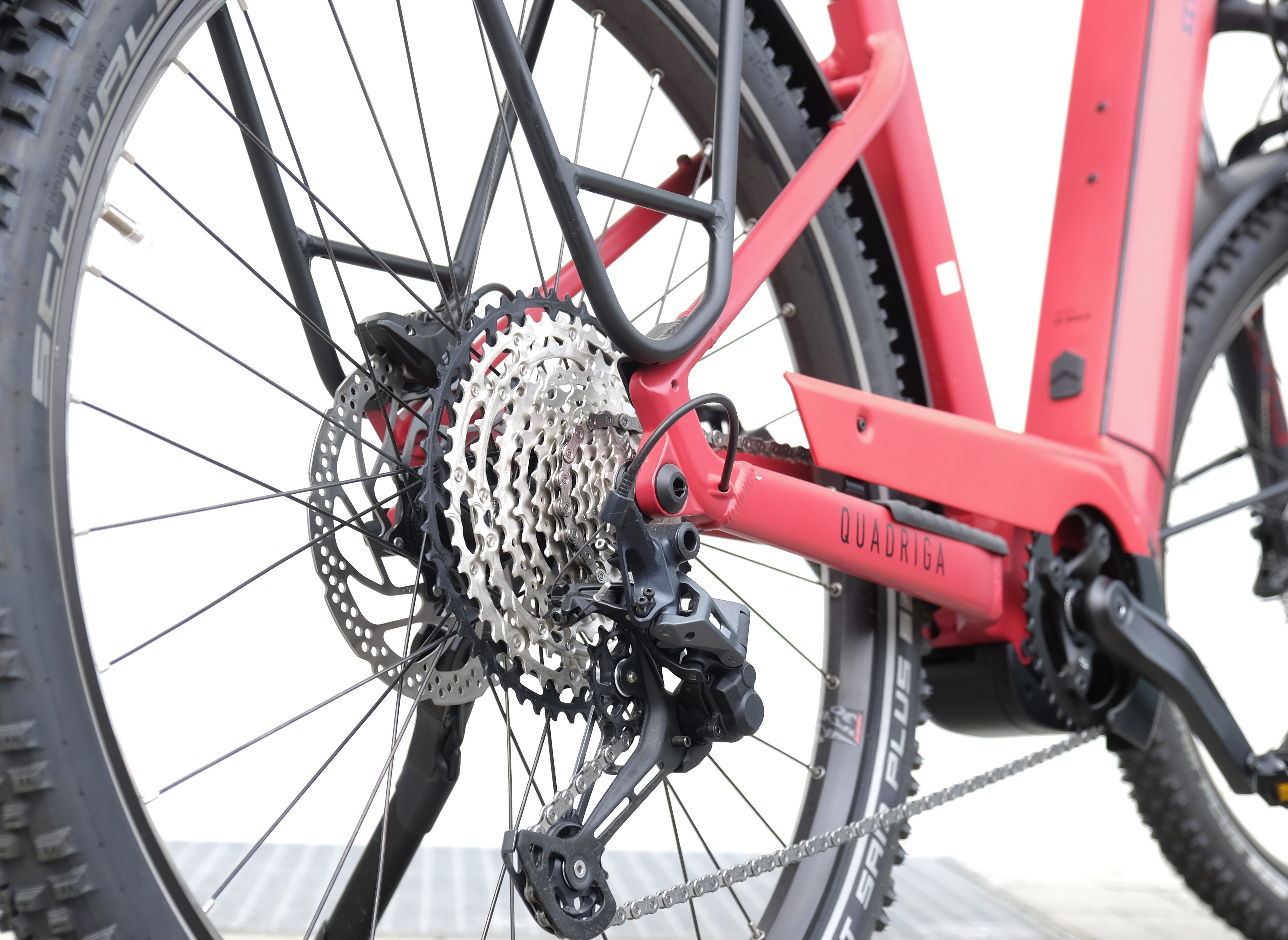

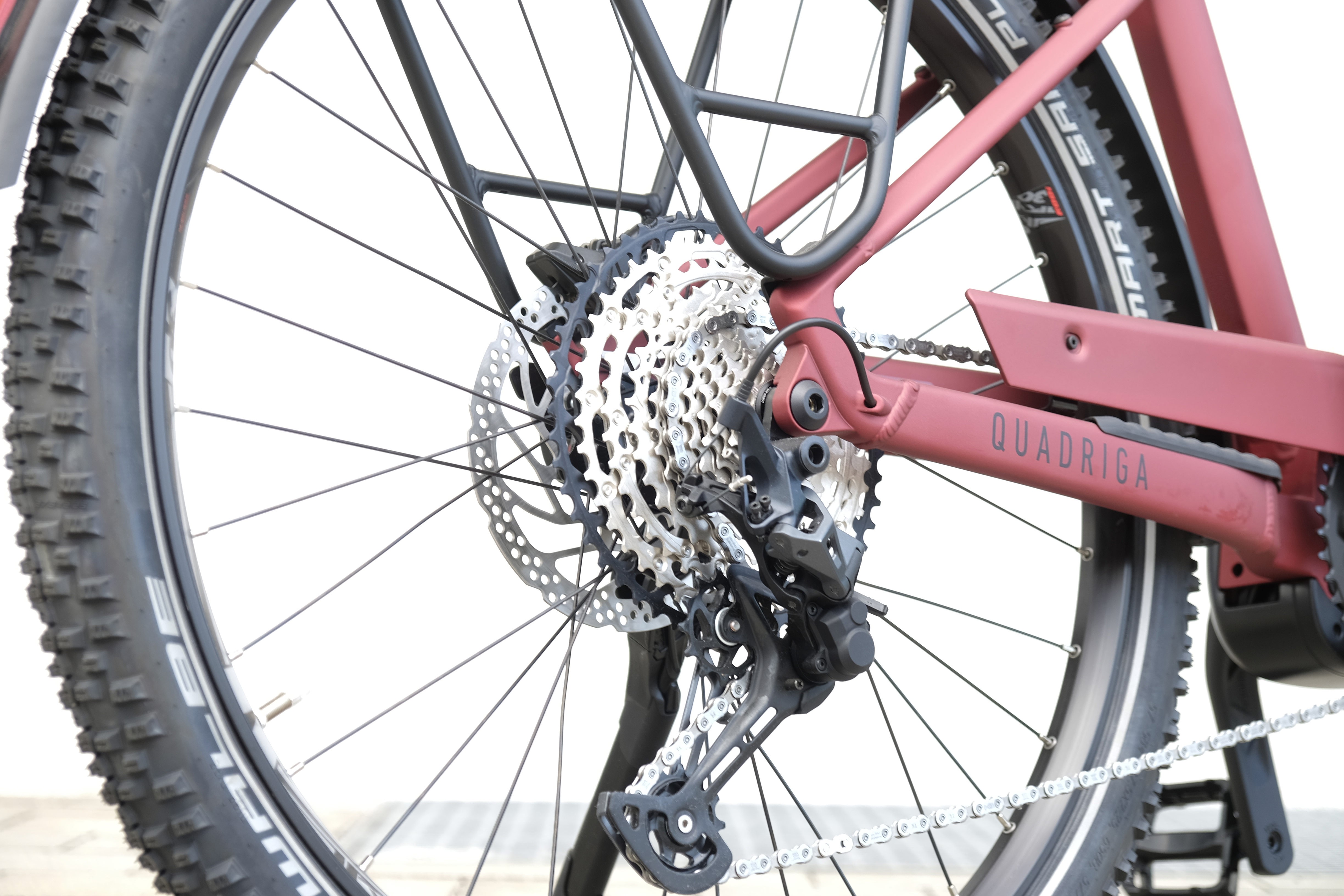

SHIFTING TYPE derailleur | 12-speed SHIFTING SYSTEM SHIMANO SLX RD-M7100 SHIFT LEVER SHIMANO SLX SL-M7100
CRANKSET SAMOX

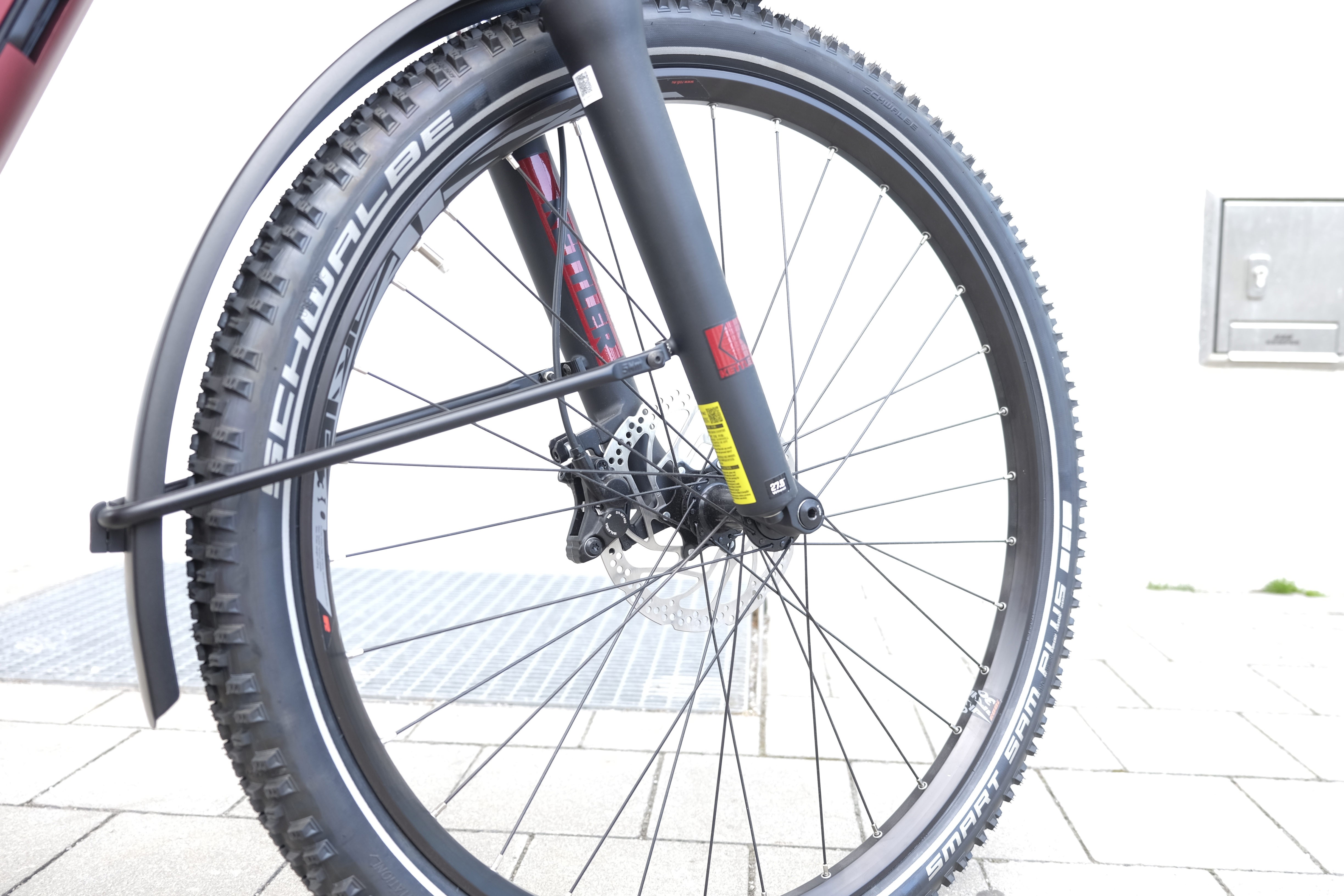

WHEEL SIZE 27.5 inch TYRES SCHWALBE Smart Sam Plus Performance
TYRE SIZE (ETRTO 57-584 TYRE SIZE (INCH 27.5x2.25 RIM REAR))
STEERING BARS ZECURE 640mm 15°
STEM ZECURE UP2+

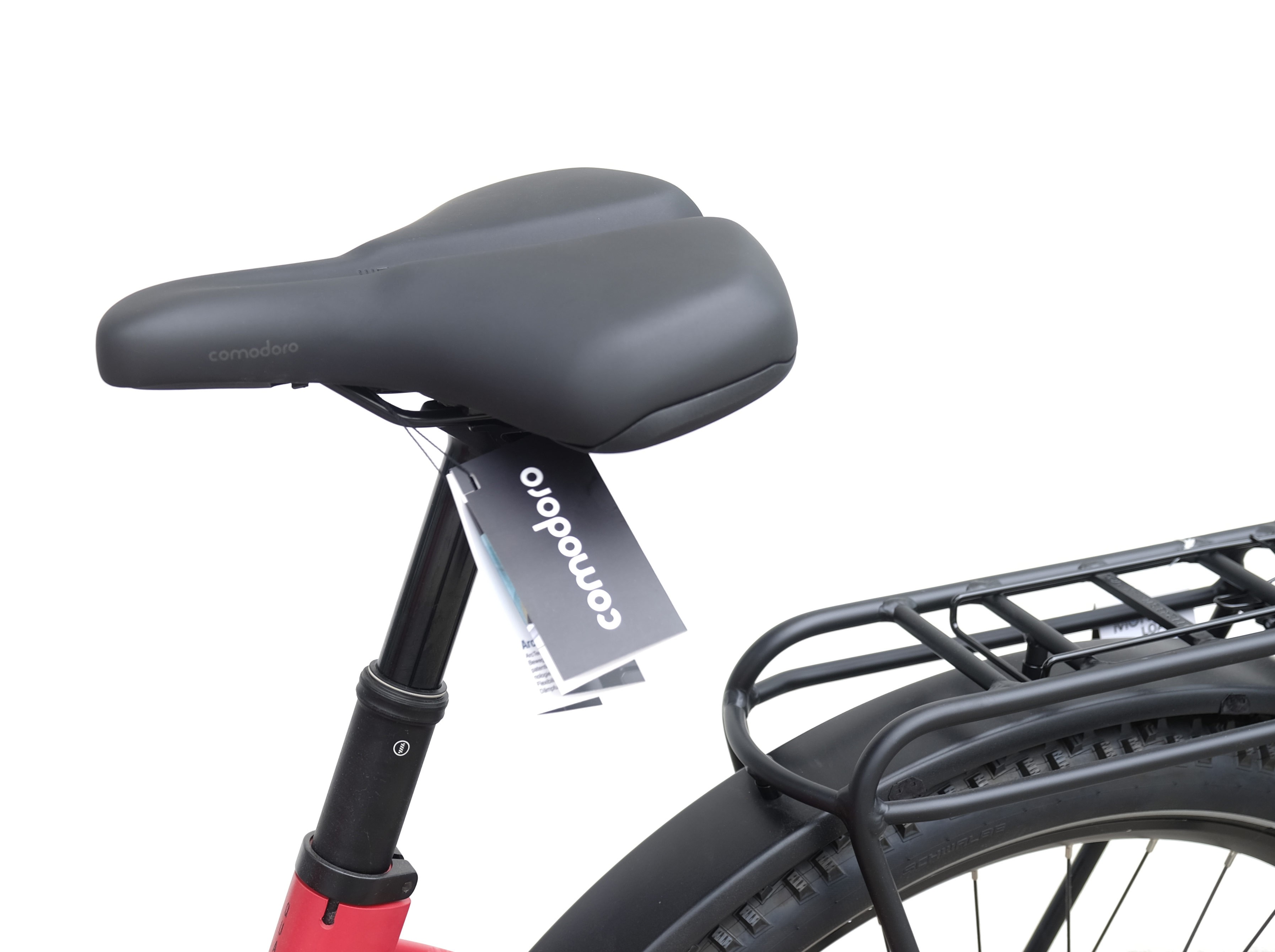

SADDLE Comodoro XL
SEAT POST LIMOTEC A3Z suspension dropper post (140x34.9mm)

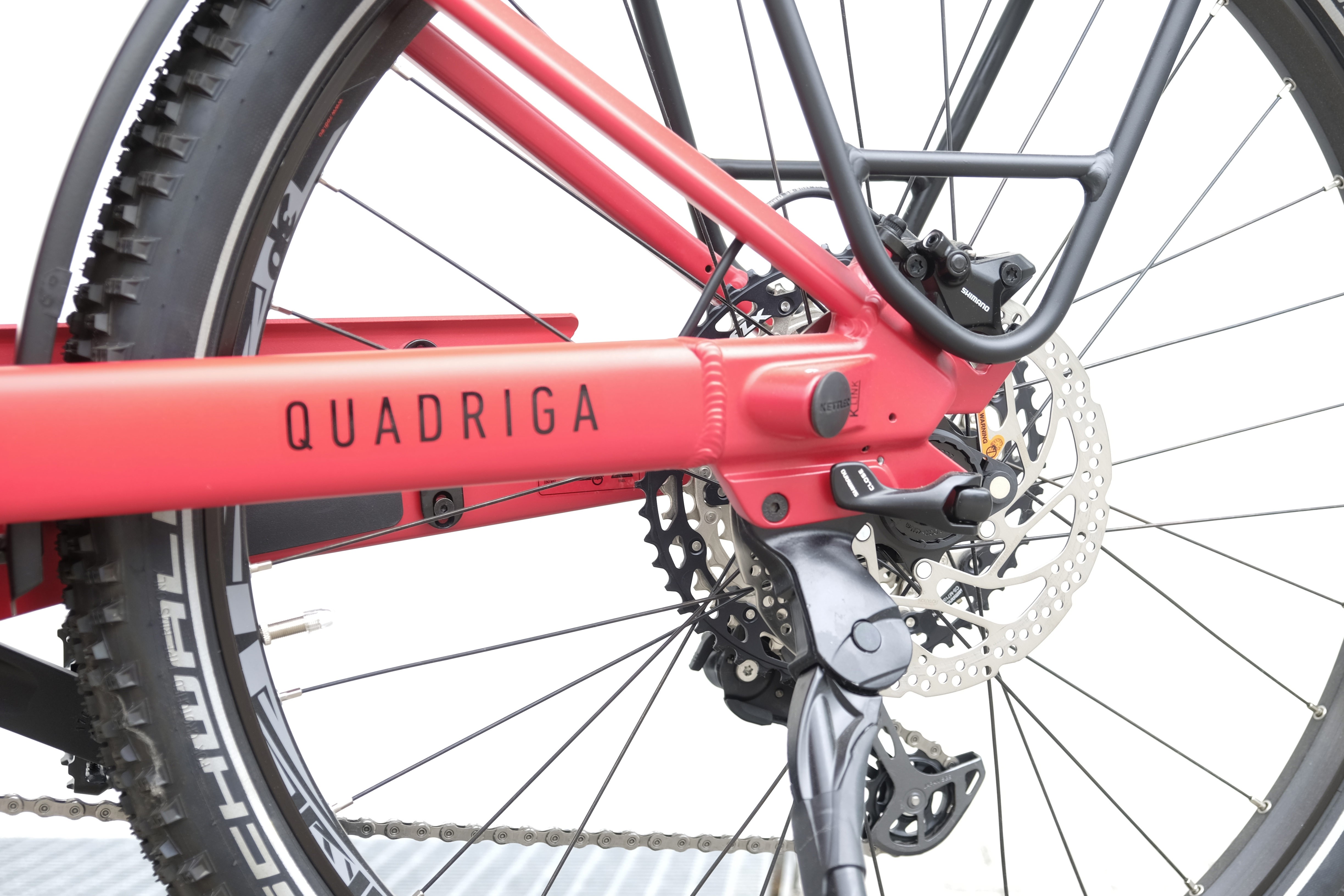

BRAKE TYPE hydraulic disc brake BRAKE SHIMANO BR-MT420 REAR BRAKE SHIMANO BR-MT410 / 2-piston

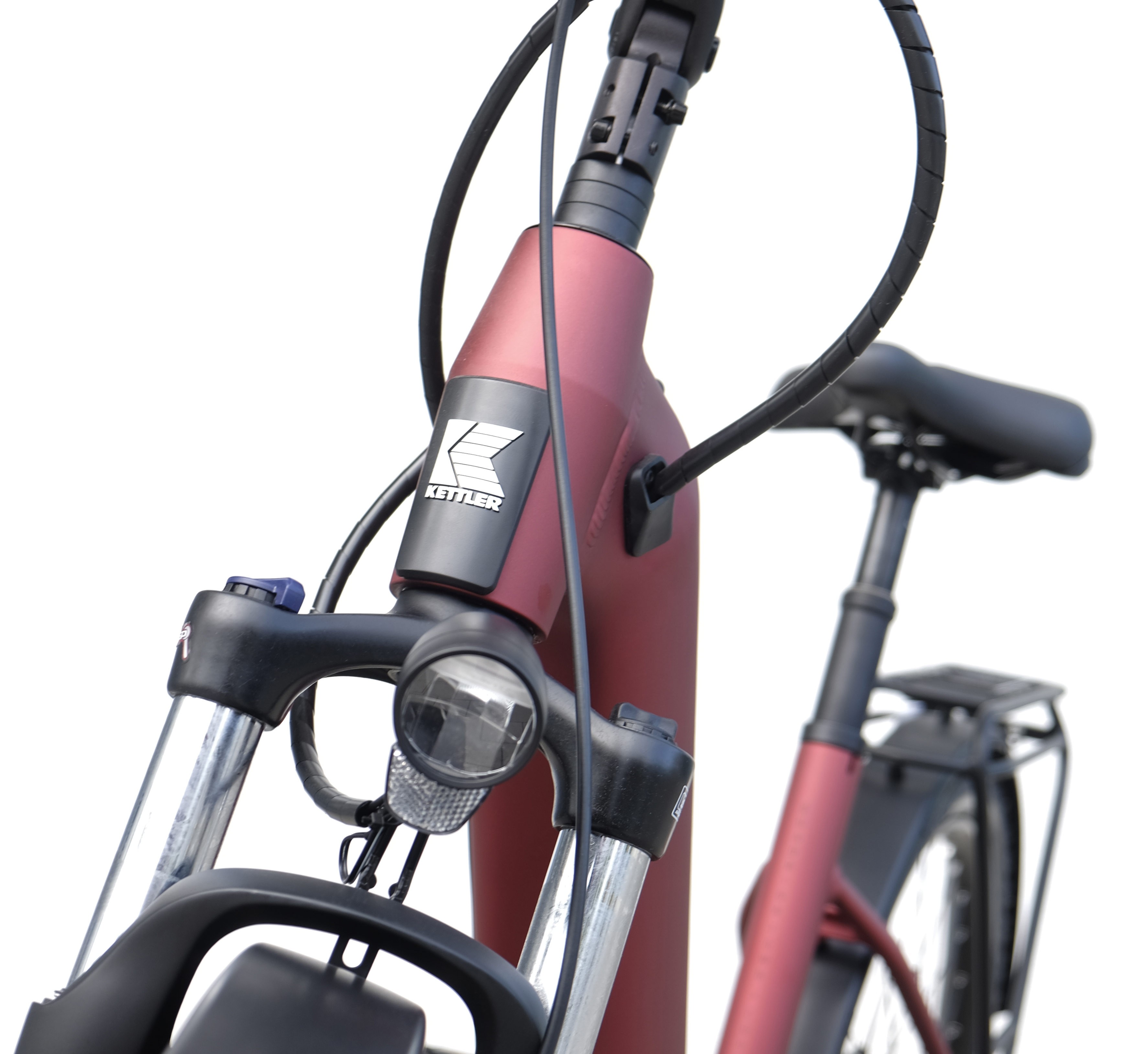

FRONT LIGHT FUXON FF-100 HB, 100 lux REAR LIGHT FUXON R-Glow EB
SHIELD SKS Edge AL C66R
PACKAGE CARRIER MonkeyLoad Carrier
PERMITTED TOTAL WEIGHT 145.0 kg
SPECIFICATIONS
MOTOR Bosch Performance Line CX (Smart System) 25/85Nm MOTOR TYPE Mid-engine MOTOR SUPPORT up to 25 km/h
BATTERY Bosch PowerTube Vertical 750
DISPLAY Bosch KIOX 300
FRAME MATERIAL AluminiumPowerful, long range and fully networked
FRAME SIZE 46 cm (see variations)
High-quality aluminium frame
Maximum range for many metres in altitude and long tours with the PowerTube 750
The e-bike system can also be controlled without an additional display using the LED Remote control unit
Grippy tyres, 100 mm front suspension travel and a suspended and lowerable seat post (Eurobike Award winner 2019) make the QUADRIGA TOWN & COUNTRY COMP 750 ideal for touring and everyday rides on poor paths and unpaved terrain Equipped with the new smart system from Bosch - consisting of the E-Bike Flow app, control unit, display, battery and drive - the e-bike is fully networked. The high-torque Bosch Performance Line BES3 CX motor provides a powerful boost, while the integrated 750 Wh battery enables long ranges. All relevant fitness data can be displayed on the keyless Kiox 300 colour display, which can be controlled via the LED Remote. It is also connected to the E-Bike Flow app via the LED Remote. The app can be used to customise riding modes, record activities and integrate fitness apps. With 12-speed derailleur gears, pedalling is easy even on steep climbs. The MonkeyLoad system luggage carrier, the extremely bright 100 lux spotlight and the option of easily attaching a child trailer using the K-Link adapter ensure maximum suitability for everyday use.
FORK SR SUNTOUR XCM34-Boost SPRING TRAVEL (FRONT)100.0 mm
SHIFTING TYPE derailleur | 12-speed SHIFTING SYSTEM SHIMANO SLX RD-M7100 SHIFT LEVER SHIMANO SLX SL-M7100
CRANKSET SAMOX
WHEEL SIZE 27.5 inch TYRES SCHWALBE Smart Sam Plus Performance
TYRE SIZE (ETRTO 57-584 TYRE SIZE (INCH 27.5x2.25 RIM REAR))
STEERING BARS ZECURE 640mm 15°
STEM ZECURE UP2+
SADDLE Comodoro XL
SEAT POST LIMOTEC A3Z suspension dropper post (140x34.9mm)
BRAKE TYPE hydraulic disc brake BRAKE SHIMANO BR-MT420 REAR BRAKE SHIMANO BR-MT410 / 2-piston
FRONT LIGHT FUXON FF-100 HB, 100 lux REAR LIGHT FUXON R-Glow EB
SHIELD SKS Edge AL C66R
PACKAGE CARRIER MonkeyLoad Carrier
PERMITTED TOTAL WEIGHT 145.0 kg
| --- SUBCATEGORIES ---: | E-BIKE |
|---|---|
| - Brake variant: | Front & rear brake, Hydraulic |
| - Control system: | PEDALS with sensor |
| - Drive variant: | Mid-engine |
| - Flashing light: | Optional |
| - Folding function: | Not foldable |
| - Gradability: | Extreme gradients (>20%) |
| - Operating voltage range: | 36 - 43 Volt |
| - Payload (kg) up to: | 120 |
| - Quick change or additional battery: | Quick change |
| - Reach: | Extremely large range EXTREMELY LARGE > 100 KM |
| - Service / Support / Spare parts supply: | Very good *** |
| - Suitable for air travel: | no |
| - Suspension: | Front frame suspension |
| - Tire type: | Pneumatic tires with inner tube (TT) |
| - Vehicle category: | 25 km/h pedelec |
| - Wheel size: | 27,5" |
