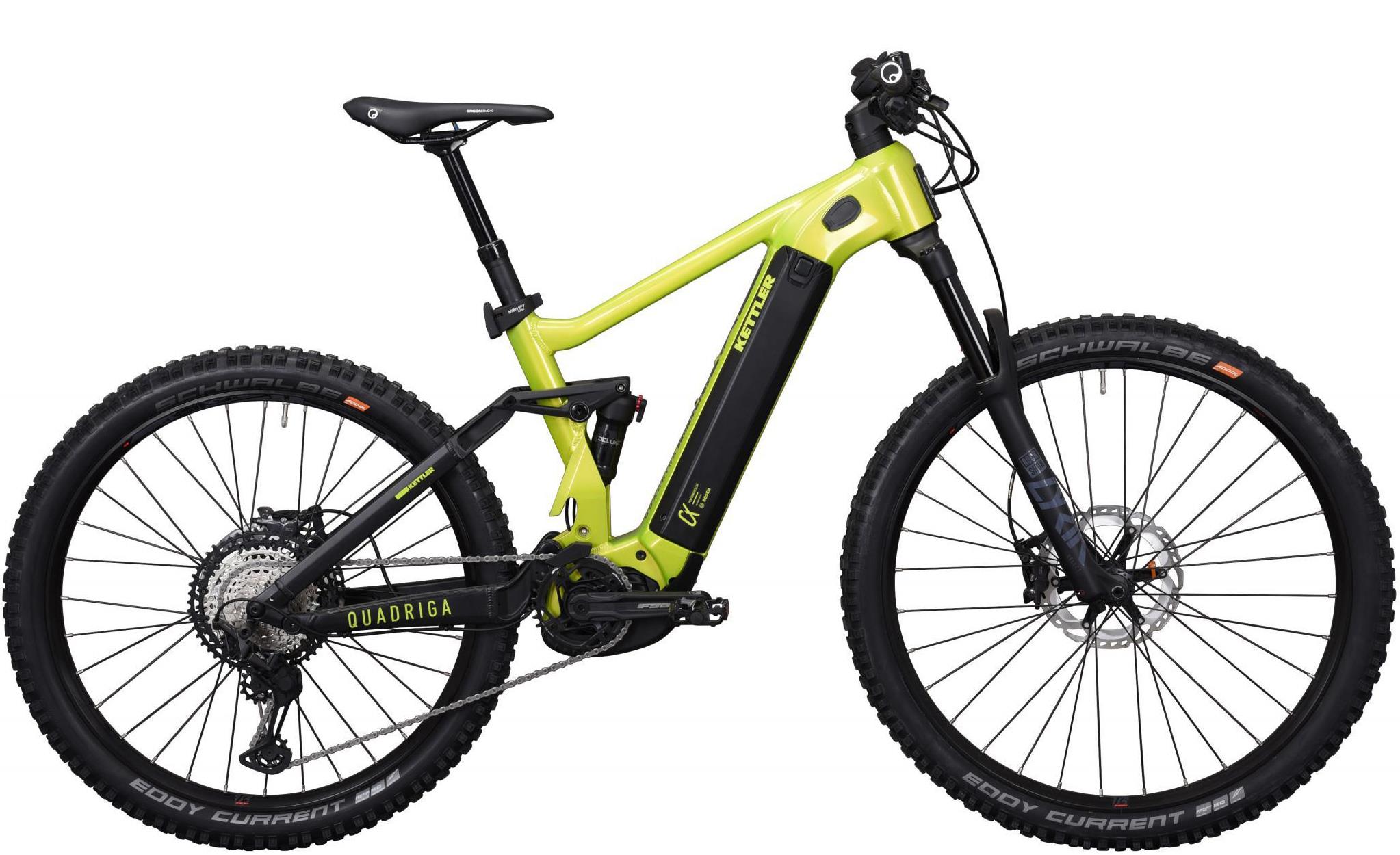

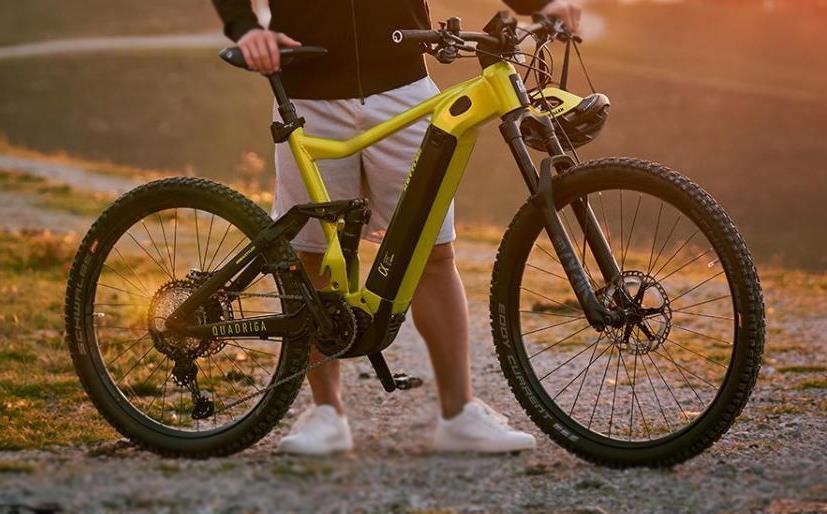

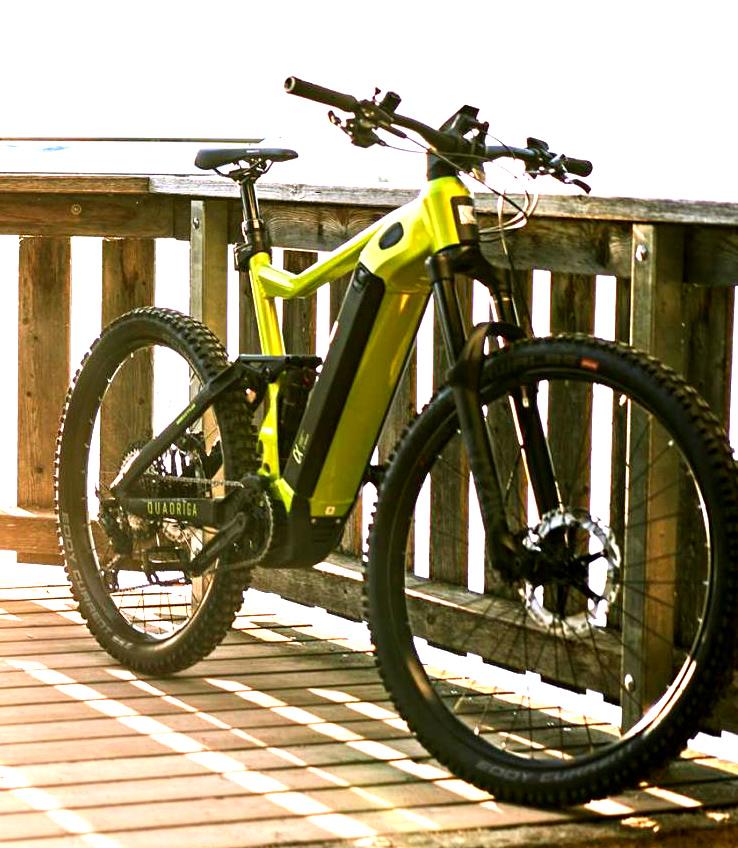

KETTLER eMTB QUADRIGA DUO CX12 FS 1250Wh - lime | Lime

Product information "KETTLER eMTB QUADRIGA DUO CX12 FS 1250Wh - lime"

The KETTLER eMTB is a visual and functional treat - conquer the mountains and serpentines, tracks and mountain ranges!

The QUADRIGA DUO CX12 FS offers top values in terms of suspension travel and range for endless trail fun. The innovative integration of the two PowerTube batteries with 1250 watt hours enables high endurance; the bike then impresses on the downhill thanks to 150 mm suspension travel at the front and rear and lowerable seat post. The modern geometry with a long top tube and short stem enables easy handling and safe directional stability; with voluminous 27.5 inch tyres at the rear and slightly narrower 29er tyres at the front, the trail bike achieves the perfect balance of traction and tracking. In addition to Shimano Deore XT derailleur gears with twelve gears and sturdy disc brakes, the MonkeyLink light sockets linked to the drive battery are an important safety feature.
Innovative frame design made from the best aluminium
Two innovatively integrated PowerTube batteries with up to 1250 Wh offer an unprecedented range
Stable Shimano 4-piston disc brakes provide the necessary deceleration

Drivetrain Bosch Performance Line CX Gen4 motor 36V / 250W I Bosch Unit Kiox display

2 x 625Wh: 36V / 17.4Ah Powertube!

ColourColorlime green shiny or black
FrameFrame Aluminium 6061, Intube
Frame heightFramesizeDiamond 44
ForkForkRockShox Lyrik Select suspension fork,150 mm
ShockShockRockShox DLX SEL+, 150 mm
DerailleurRear DerailleurShimano RD-M8100Gear 12 speed
ShiftersShimano SL-M8100
CranksetCrankset FSA CK-762
BrakeBrakesShimano BR-M8120 hydraulic disc brake, 4 pistonsHandlebar
Handlebar Satori MTB
Grips eGrips Ergon GA30
StemStemSatori
SeatpostSeatpostLimotec, lowerable
SaddleSaddleErgon SCM40
RimsRims Rodi TRYP35, hollow chamber
TyresSchwalbe Eddy Current, front wheel: 62-622 (29 x 2.4), rear wheel: 65-584 (27.5 x 2.6)
PedalsPedal VP-469 Permissible total weight
Permissible To t al We i g h t 150 kg

Frame sizes 44 cm

--- SUBCATEGORIES ---:	E-BIKE
- Brake variant:	Front & rear brake, Hydraulic
- Drive variant:	Mid-engine
- Flashing light:	No
- Folding function:	Not foldable
- Gradability:	Extreme gradients (>20%)
- Operating voltage range:	36 - 43 Volt
- Payload (kg) up to:	120
- Quick change or additional battery:	Quick change
- Reach:	Extremely large range EXTREMELY LARGE > 100 KM
- Service / Support / Spare parts supply:	Very good ***
- Suitable for air travel:	no
- Suspension:	Full suspension
- Tire type:	Pneumatic tires with inner tube (TT)
- Vehicle category:	25 km/h pedelec
- Wheel size:	27,5", 29"

| Manufacturer "KETTLER"

KETTLER Alu-Rad GmbH

Longericher Straße 2

D-50739 Köln

E-Mail: info@kettler-alu-rad.de

Please enter a valid email address.

Your question *

Please enter a valid question.

I agree that my data will be processed to answer the question. I have taken note of the Privacy Policy and agree to the information described therein.*

Fields marked with * are mandatory.

Question : Gibt es das Kettler Quadriga Duo CX 12 FS auch in einer anderen Größe als 44? Ich bin 188 cm groß und benötige

From : customer

Answer:

Ja, das Kettler Quadriga Duo CX 12 FS gibt es aktuell in 41, 44, 49, 54 cm Rahmen.

Kettler bietet online einen Rahmengrößenberater an - siehe: https://www.kettler-alu-rad.de/de-de/service/rahmengroessenberatung

Bei MTB-Bikes wird eher kleiner als größer empfohlen wenn man an den Grenzwerten liegt.

MfG escooter.de efahrrad.de

Question : Willkommen! Ketteler Quadriga Duo CX 12 FS 1250 WhIch möchte mich nach einem Fahrradtyp aus Ungarn erkundigen(Artikel-Nr.: 13679.1 EAN: 4251238550911) Welche Größe hat das Fahrrad? Können sie nach Ungarn versenden und wie viel kostet es?

From : customer

Answer:

Hallo - es ist ein 44er Rahmen und die Versandkosten sind 85,- Euro + 125,- Euro Sperrgutzuschlag = 210,- total nach Ungarn. MfG efahrrad.de escooter.de
