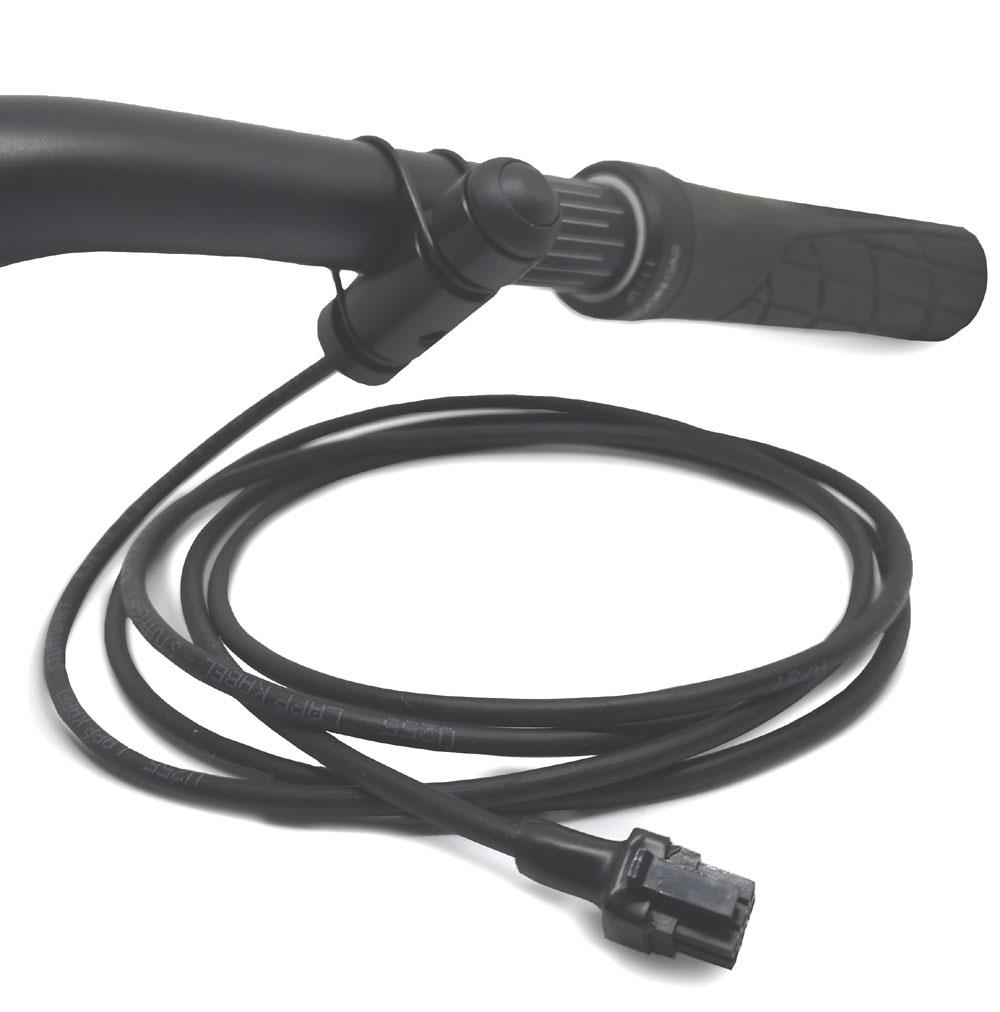

On/off switchInconspicuous button for the handlebars for switching on and off, single-stage without battery indicator (battery status directly visible on the battery)Support programmable for MTB, Tour, Trekking with 75 rpm or road bike with 90 rpm cadence.
...suitable for battery and DirectPower control unit, fits 26" and 28" with top spring flap 870-00-350-0396

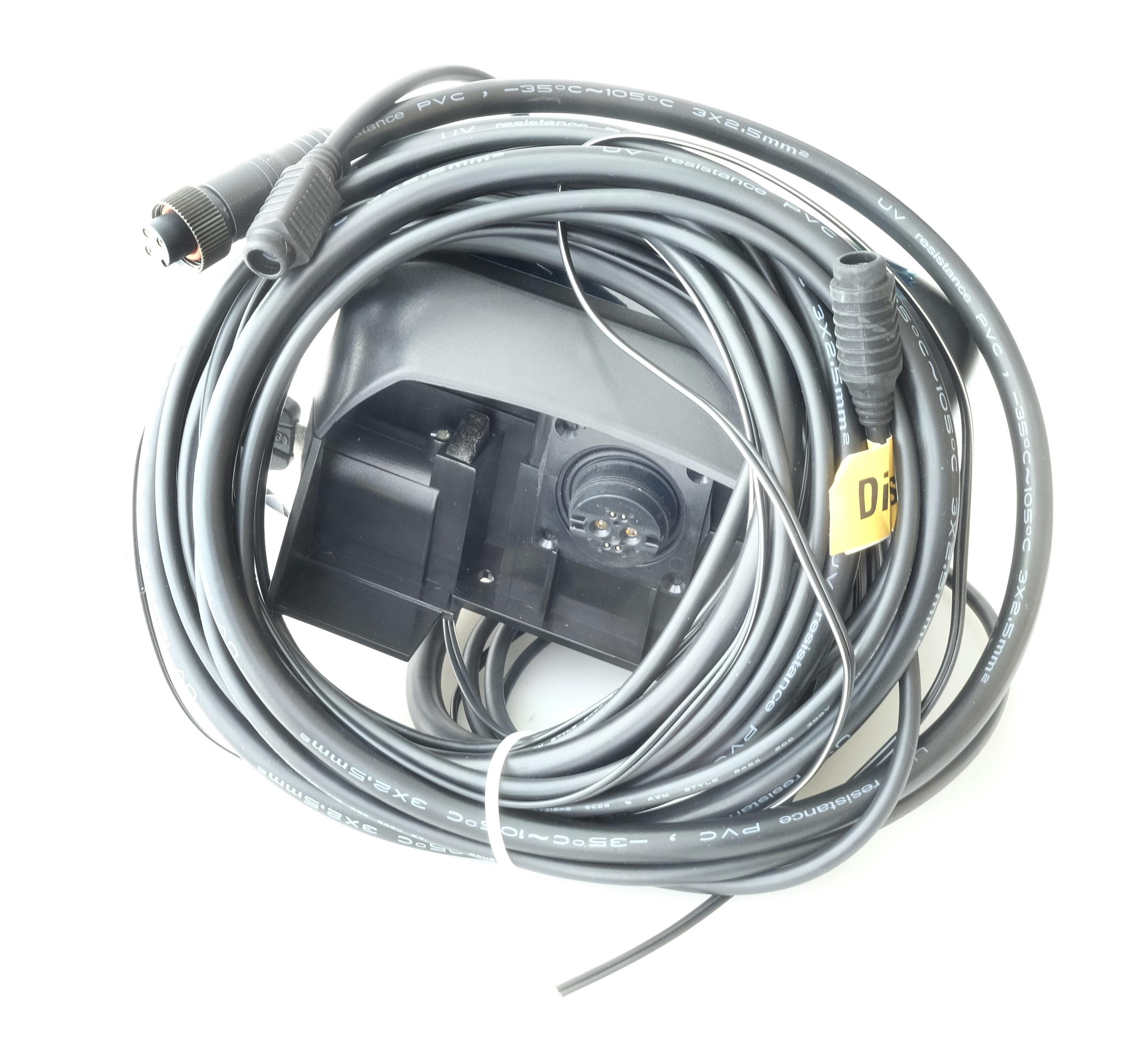

Control unit suitable for luggage carrier DirectPower Heinzmann 880-80-266-00 here with standard cable lengths motor 2350 mm, sensor 2350 mm, display 2100 mm. Other cable lengths available on request; please contact us.Controller box carrier battery with standard assembly: 2350/2400/850/2100/0/2000/1300Used controller checked and technically OK. - good condition - sale according to differential tax law §25a USTG without VAT shown. Reduced warranty of 12 months (instead of 24 months as with new appliances).
Charging stand for upright charging (base) of a Pendix battery. The Pendix ePower can be placed on the charging base thanks to the option of integrating a Pendix charger, making it a visual highlight.The charging stand can be used for both the Pendix ePower300 and the Pendix ePower500 and is compatible with both chargers.

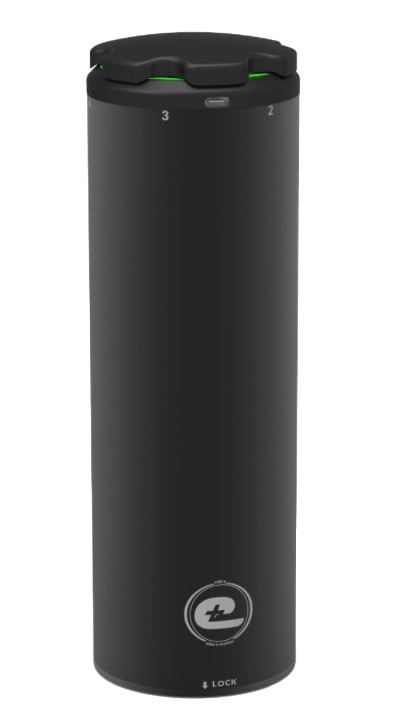

3 different battery variants for different uses:The long-distance battery among the add-e batteries with 450 Wh.Dimensions: 80 x 250 mmWeight: 2.3kgCapacity: 20.4 AhEnergy: 450 WhVoltage: 25.2 VCharging current max: 9AThe all-rounder among the add-e batteries with 300 Wh. Compact dimensions and yet good endurance performance.Dimensions: 80 x 183 mmWeight: 1.6 kgCapacity: 13.6 AhEnergy: 300 WhVoltage: 25.2 VCharging current max: 6A150 Wh The smallest of the add-e batteries is a compact lightweight at 900 grams.Dimensions: 80 x 116 mmWeight: 0.9 kgCapacity: 6.8 AhEnergy: 150 WhVoltage: 25.2 VCharging current max: 3A

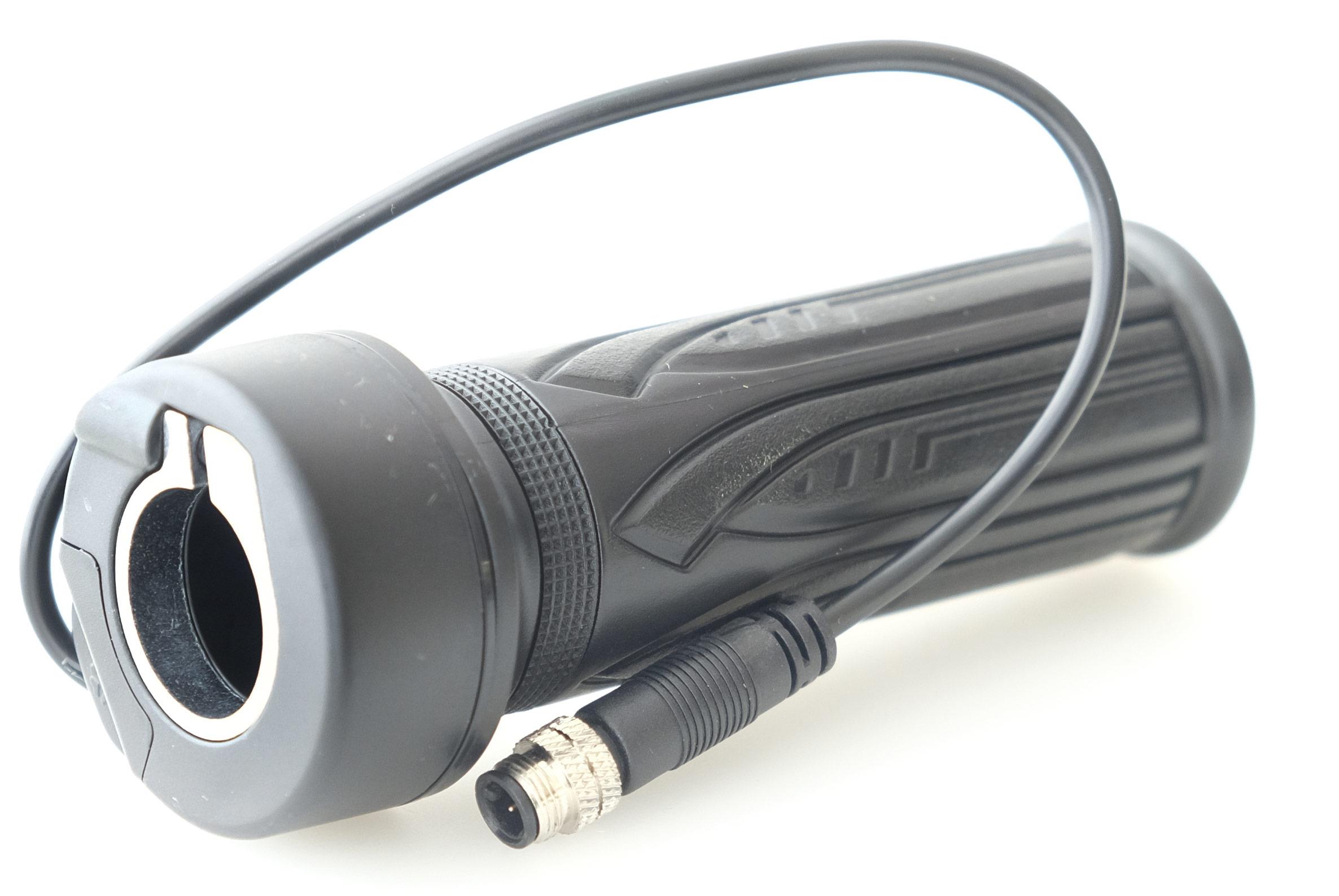

Heinzmann twist grip - push-assist function (pedelec) or drive function (e-bike) with DirectPower drive - with short cable and plug.

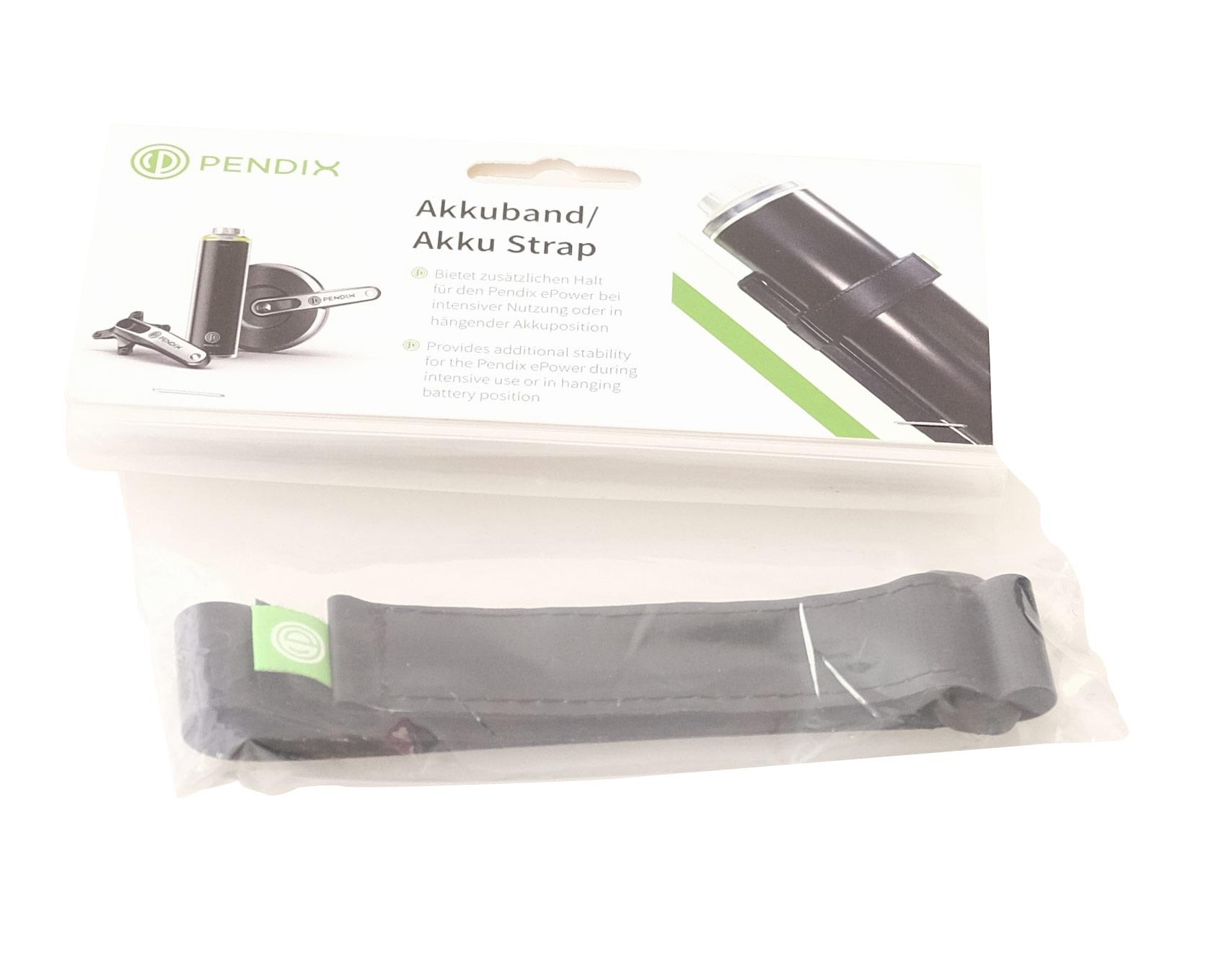

Provides additional support for the Pendix ePower during intensive use or when the battery is in a horizontal position.

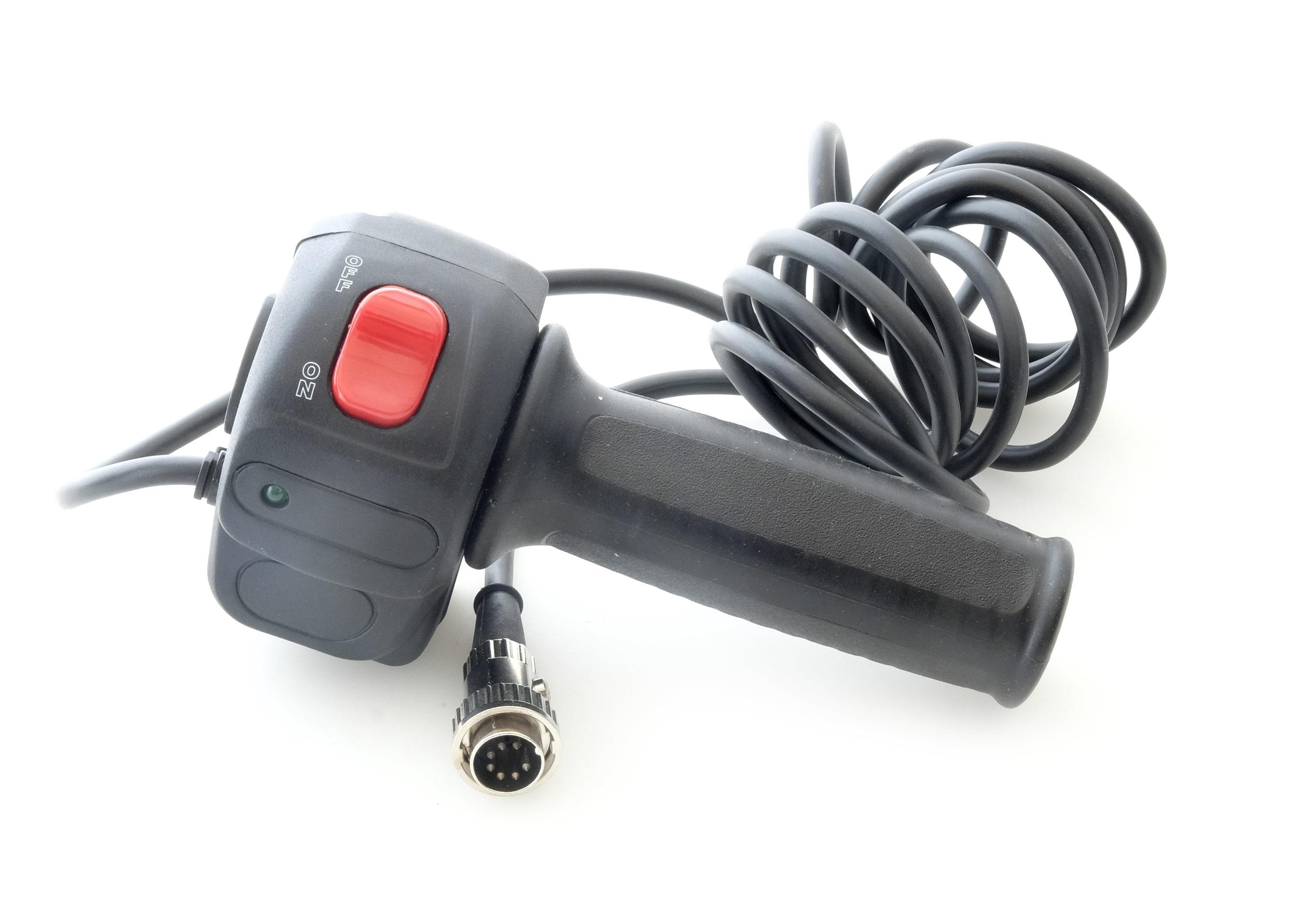

Hand control handle Heinzmann Motor System Digital Classic (from ~2008) with cable length 1.7 metres
WS control unit Motor controller built into the seat postStandard seat post with 350 mm length; optional suspension seat post or other lengths on request.

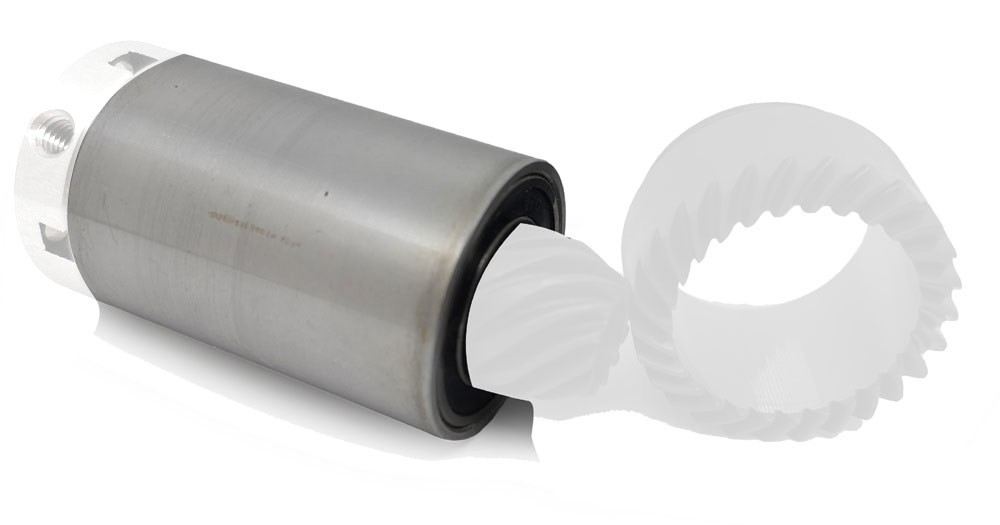

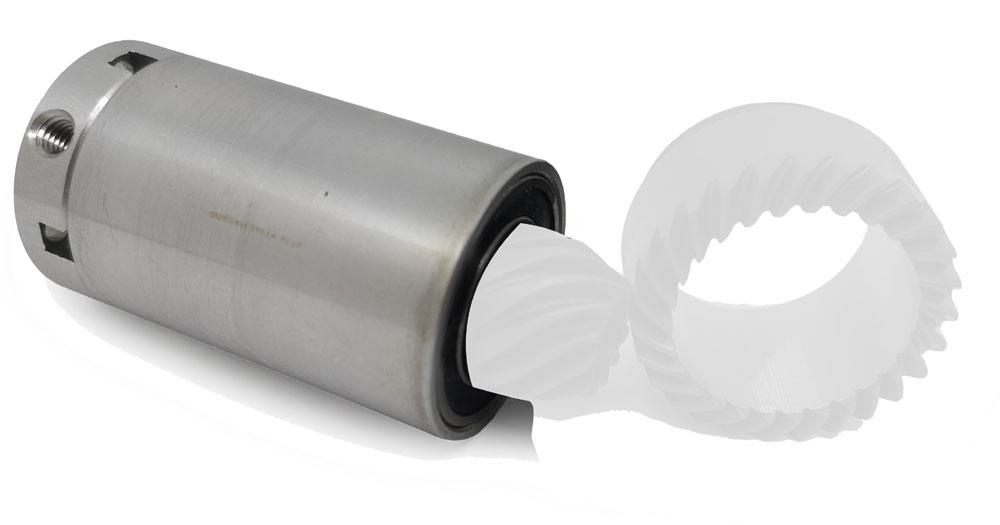

Pinion mounting sleeve, aluminum with ball bearing for bevel pinion mounting and thread for mounting on motor unit.

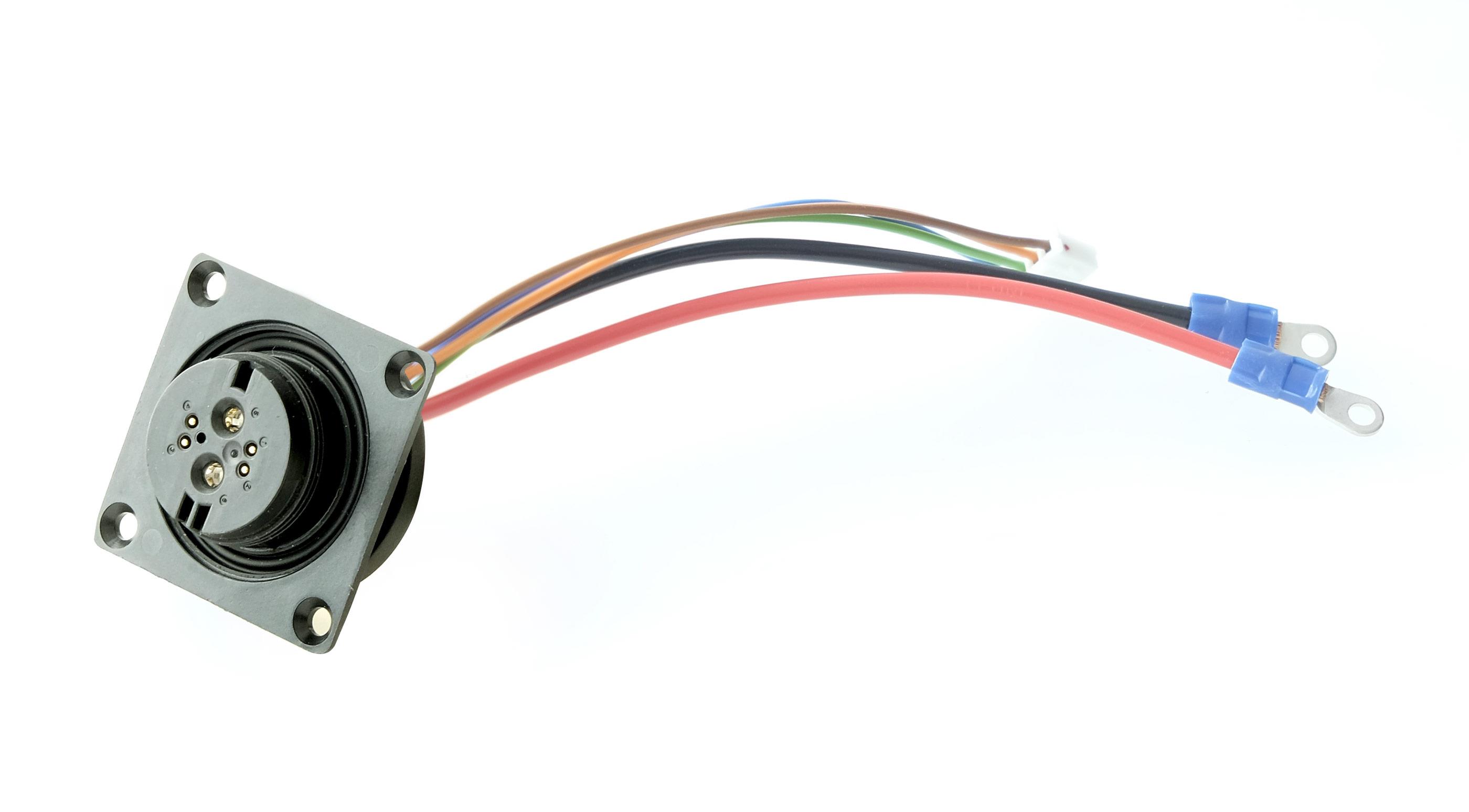

RoPD® - Rosenberger Power Data connectors have been specially developed for LEVs such as e-bikes, e-scooters and pedelecs.They ensure a fast and reliable magnetic connection and are particularly suitable for data communication and power transmission at voltages of up to 60 V and current loads of up to 40 A. The magnetic interlock and precise self-finding function prevent damage to the connector or the device due to interruptions. In addition, the pin and coupler design enables a large number of mating cycles.Magnetic self-finding & breakaway function - this function is used to break the connection if the connector or cable is subjected to an acute (intentional or unintentional) tensile force.Here for connection to the control board of Heinzmann® DirectPower systems.

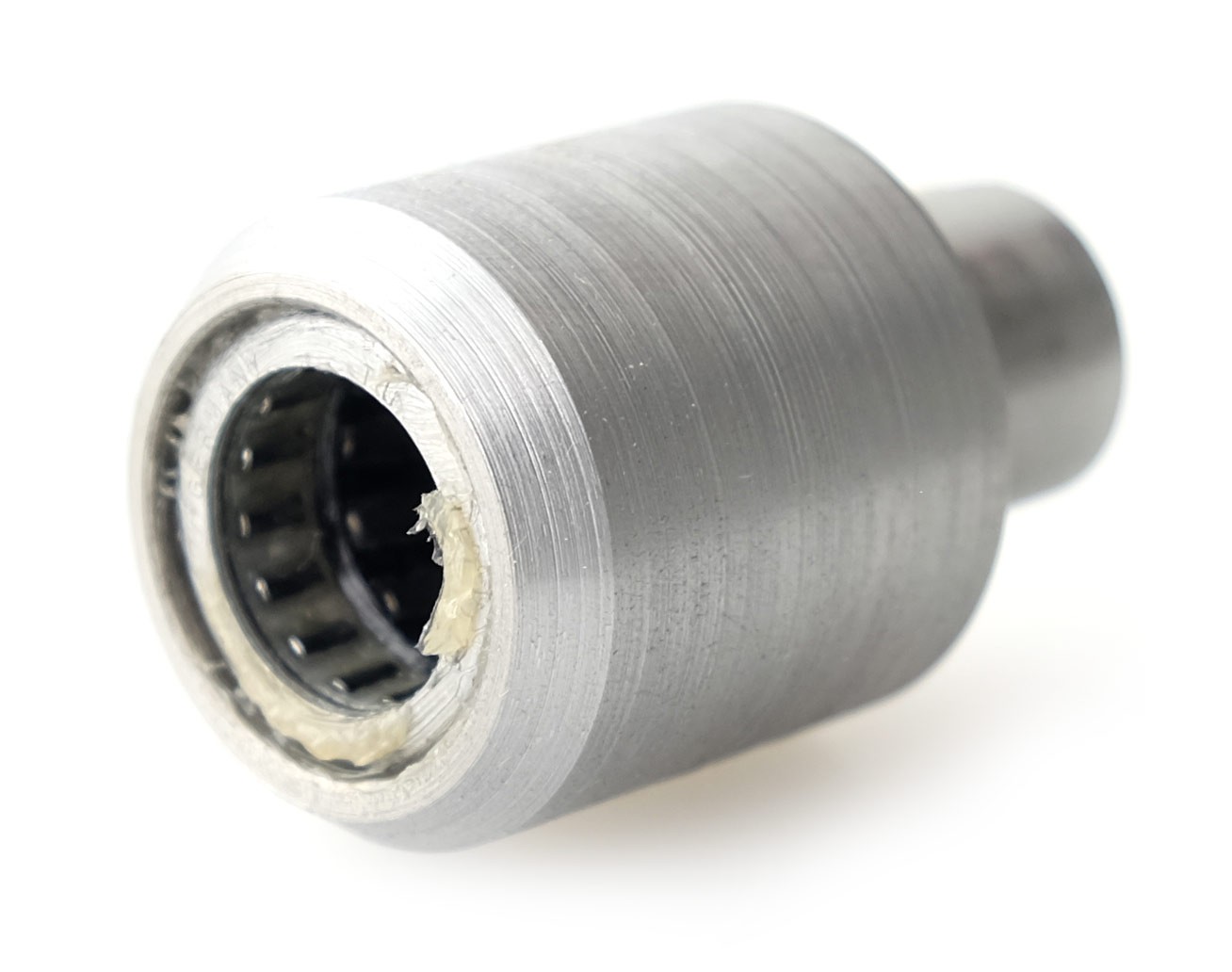

Sleeve freewheel, freewheel sleeve steel / keyway (needle freewheel)

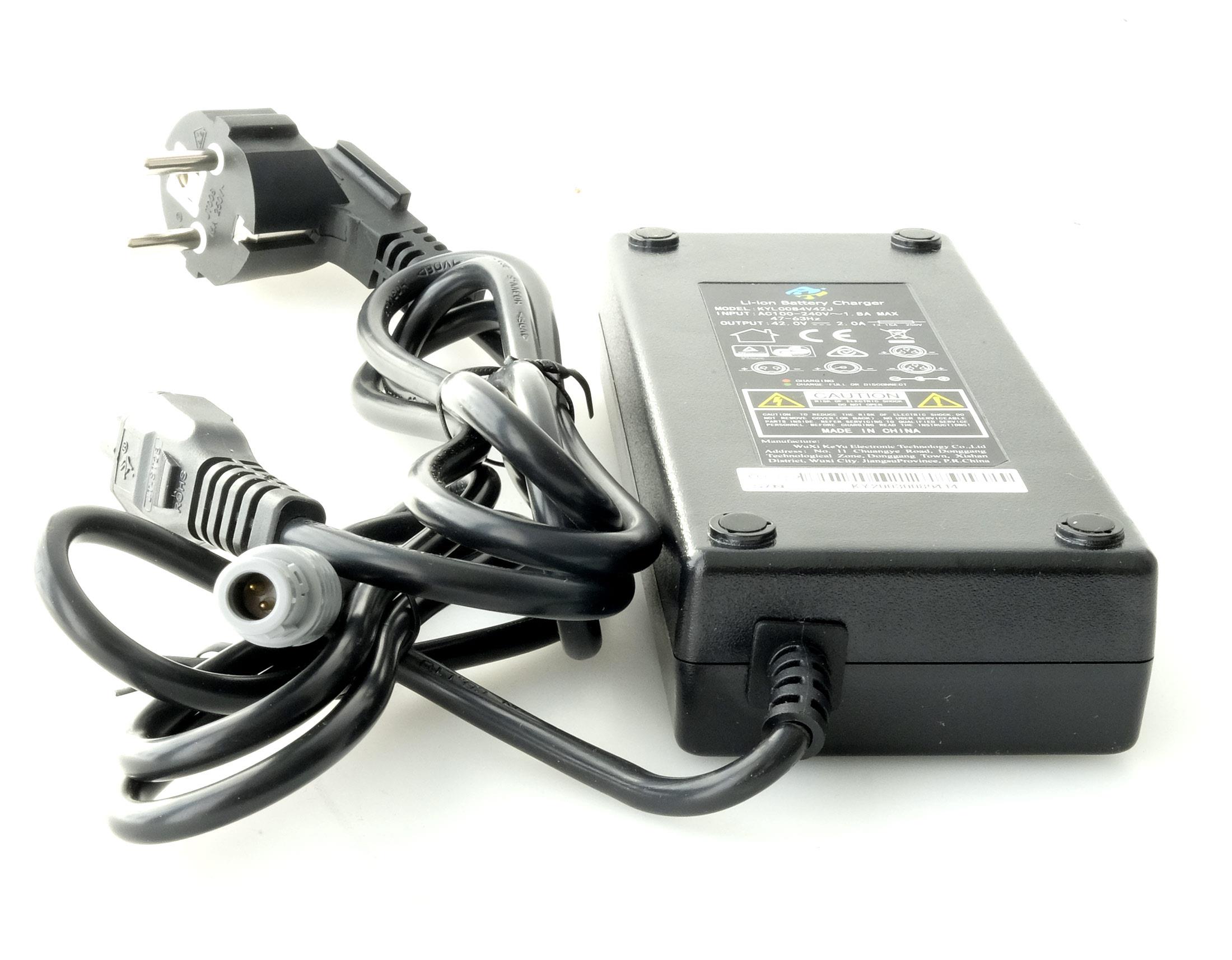

...suitable for lithium battery DirectPowerSystem Output 42V 2A

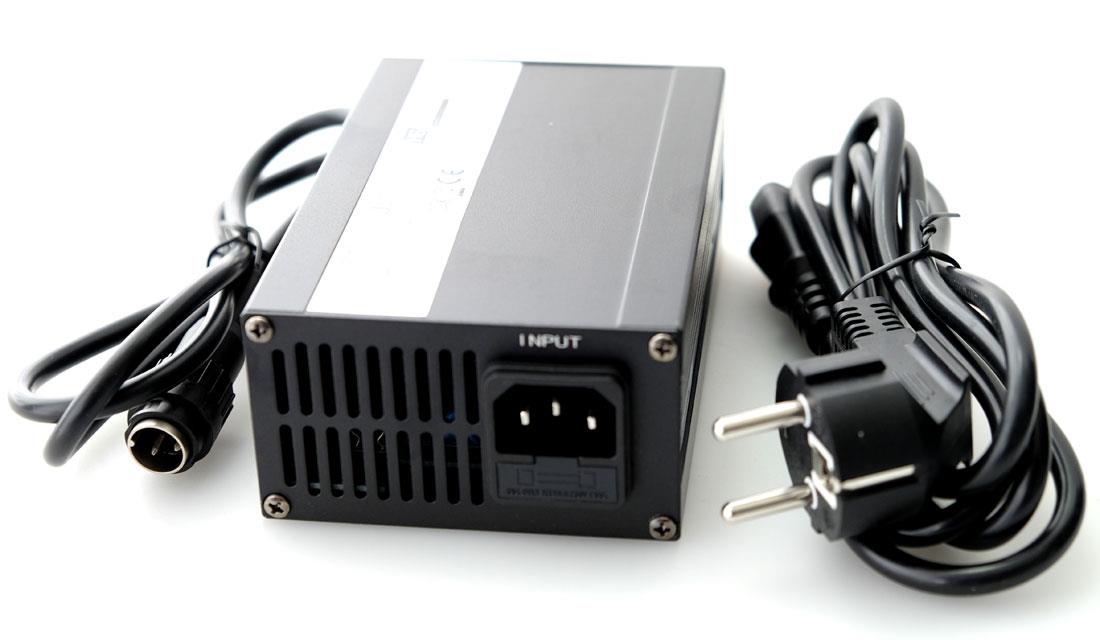

Charger 33.6V DC max. 3.8A (130W) with Vivax connection for WS battery add-on VIVAXsystem IP10 Input 100-240V max 170VA Weight 0.42 kg - Dimensions 9x14x5cm (chassis).

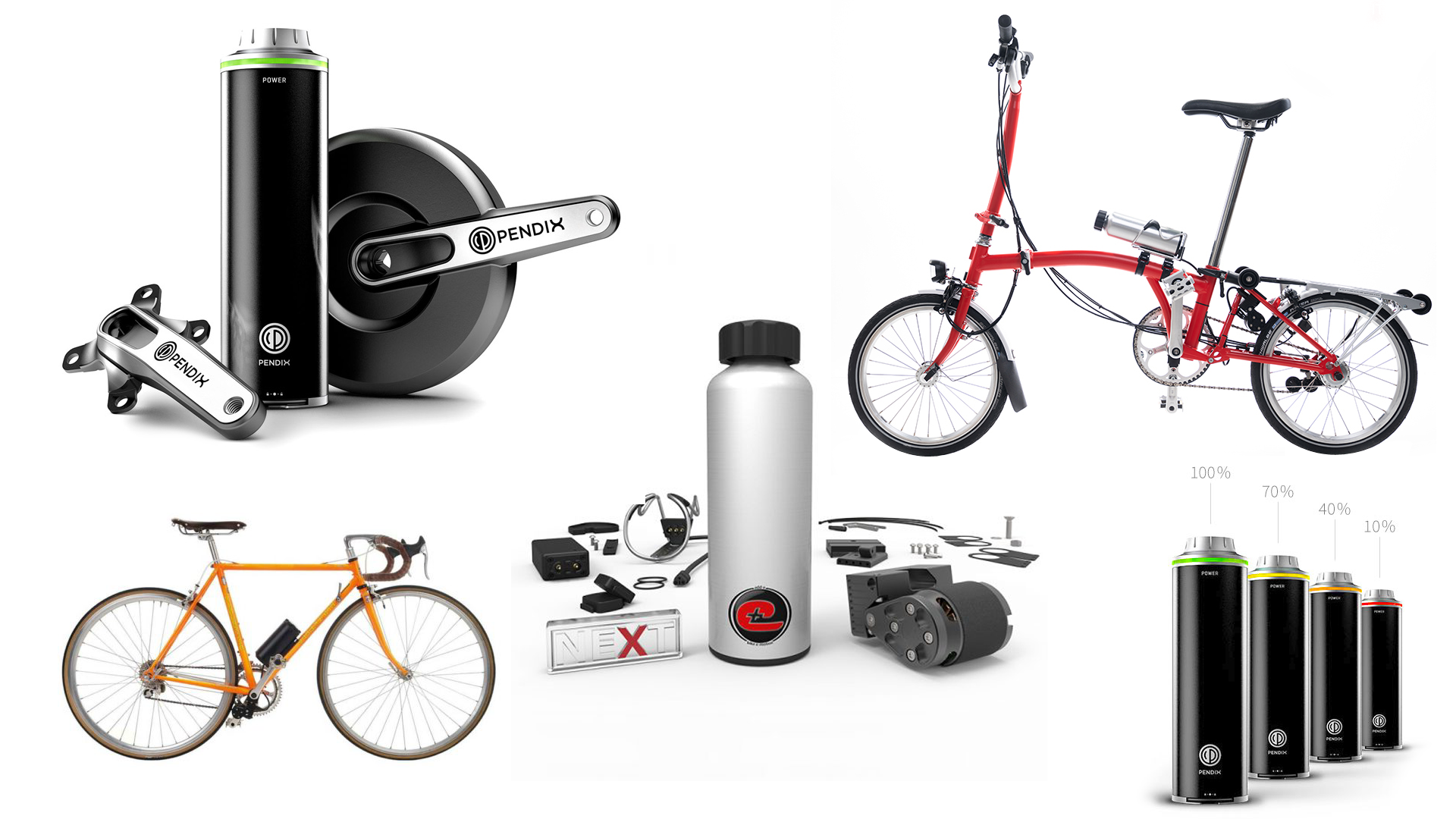

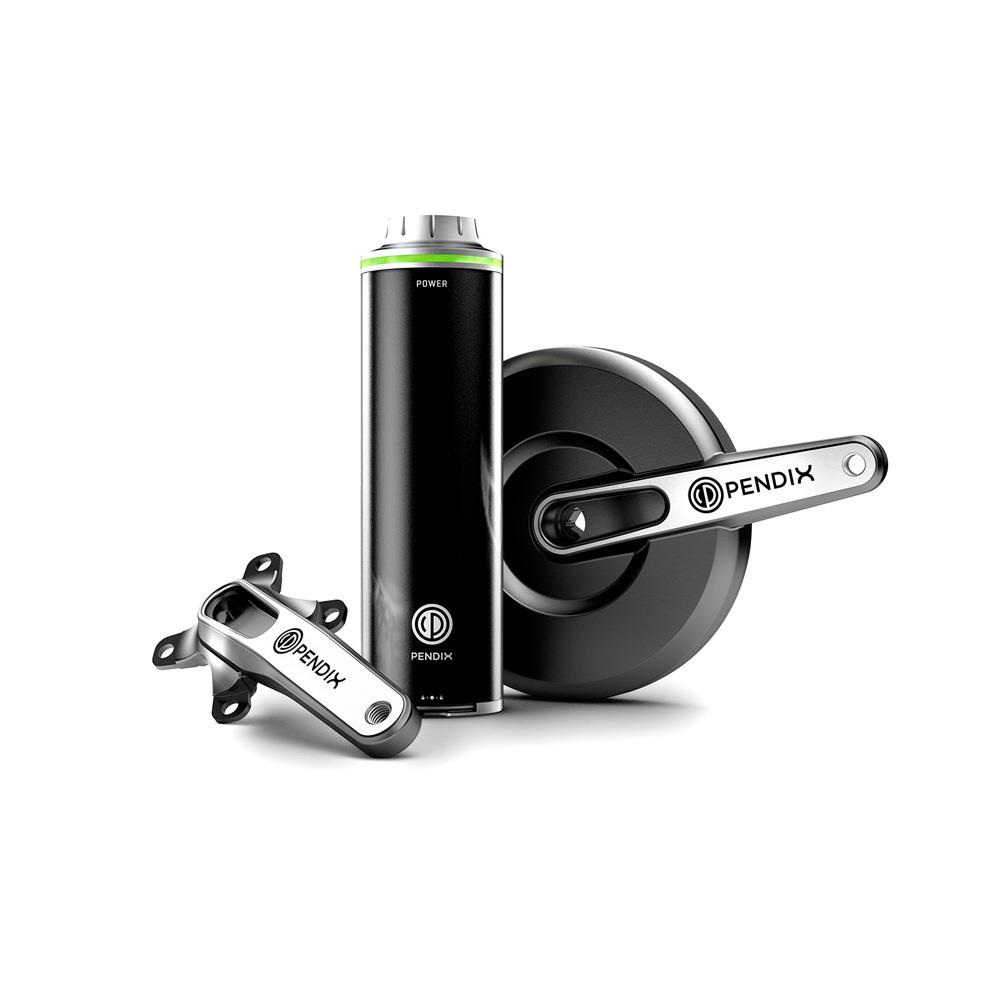

For those who want more.With the Pendix eDrive300 or eDrive500, you can enjoy electrically assisted journeys of up to 120 km (500 Wh battery). On your way to the office, in the city or on tours in the countryside, the 250 watt motor supports you absolutely silently.Thanks to the Pendix eDrive conversion kit, your bike becomes a reliable and powerful eBike. The system fits almost any type of frame, whether city, trekking, cargo or mountain bikes, there just needs to be enough space for the battery and motor on the frame. It can be fitted regardless of the wheel size, gearing or brake system. The system supports both belt and chain drives. This must be located on the right-hand side of the bike. It is also necessary for your bike to have a BSA bottom bracket. The complete system weighs approx. 7 kg.The gearless mid-motor is mounted in place of the left-hand crank. Thanks to its design and position on the bike, it provides a particularly natural riding experience and is completely silent. 250 watts of power and a maximum torque of 65 Nm support your pedalling performance up to a speed of 25 km/h (legally permitted maximum value for EU countries). Higher speeds can be achieved by using pure muscle power. As the motor has no gearbox, there is no noticeable pedalling resistance when the battery is switched off, so you can still use your bike as before.During the ride, the battery shows you the current charge level via the colour-changing LED ring. The assistance levels can be selected using the rotary wheel above the battery. This smart design means you don't need an additional display on the handlebars. If you still want to have current data visible on the handlebars, you can use the battery's Bluetooth function to connect it to your smartphone and the Pendix.bike app. The battery has a USB interface for charging external devices such as your mobile phone. The Pendix ePower is mounted directly on the bike frame using a metal bracket.Requirements for installation:*under ideal conditions- BSA bottom bracket- Sufficient space for the Pendix components -> Use our mounting template- 4-hole chainrings with the connection dimensions 4 x 104 mm or 4 x 64 mm, can continue to be used on the Pendix crank- Bike must have at least 2 functioning brakesThese points can also be found in detail on our "Installation requirements" page.If you are unsure, please have your bike fitted by a specialist dealer, who will check it again before fitting.Before fitting, check that your bike fulfils all the necessary requirements and that it is in good condition. If your bike is fitted by one of our certified specialist dealers, they are obliged to check the condition of your bike. Additional costs may be incurred for replacing wearing parts, repairing defective parts or replacing chainrings or centre stands, for example, if these are no longer compatible due to the Pendix installation.- The gearless mid-motor is completely silent, maintenance-free and offers a natural pedalling feel- Simple operation, 3 support levels, LED ring to display the current charge status, incl. USB interface for charging external devices, incl. Bluetooth function- Dimensions Pendix ePower500 (battery): 80 mm x 342 mm with 2.9 kg or ePower300 (battery): 80 mm x 276 mm with 2.3 kg- Pendix eDrive (motor) dimensions: 292 mm x 206 mm x 50 mm- Total weight: 6.9 kg*under ideal conditionsScope of delivery:x Pendix eDrive (motor) with pre-assembled clutch ring and motor cable1 x Pendix ePower500 (battery),1 x 172.5 mm crank handle1 x wheel speed sensor unit consisting of- Wheel speed sensor mounting kit- Spoke magnetPower station consisting of- Charger 160 W1 x Measuring bottom bracket unit consisting of- Measuring bottom bracket- Measuring bottom bracket assembly- 2 x spacer rings- spring washer- 2 x crank bolts- Bearing shell right aluminiumBattery metal holder incl. 2 x screw for battery holder attachment and 2 x screw for plug coverAssembly instructionsSystem instructions

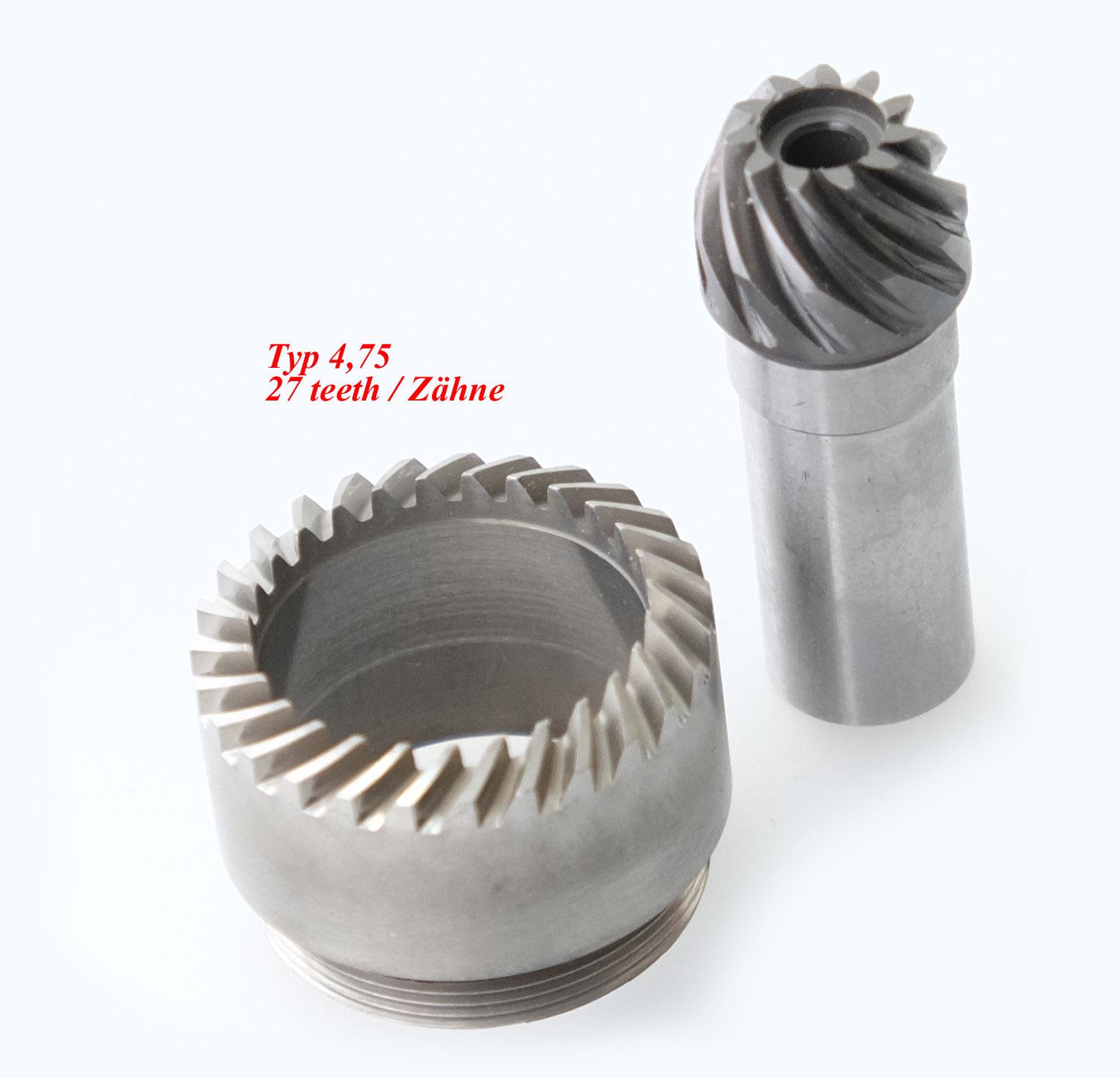

Pinion set on the motor side and press-on ring pinion on the bottom bracket side - variants: 4.75 / 27 teeth (75 cadence - touring MTB bikes) or 4.90 / 20 teeth (90 cadence - sports bikes / road bikes)
Spoke rim 20 inch, 24, 26 or 28 in black or silver - please enter your choice in the free text field when ordering! Delivery time extension approx. 14 days.
Service adapter (PC - controller box) ODU plug soldered to USB adapter, connection between DirectPower and software on PC - is connected instead of display for programming ODU plug to FTDI adapter.

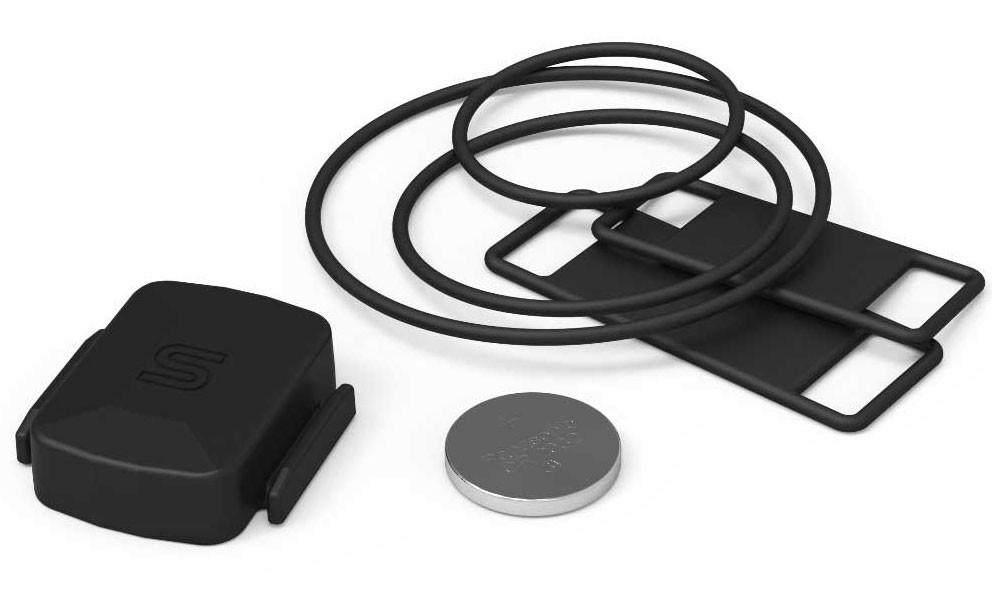

add-e NEXT Bluetooth Sensor Speed (S) for pedal arm mounting or PAS (P) for wheel axle mounting.add-e NEXT has intelligent sensors that continuously calculate speed and crank speed while you are riding. This information is transmitted in real time without cables and enables unrivalled precision in motor control. This makes it possible to optimise the switch-on delay after starting.An additional advantage of the new Bluetooth sensors can be seen during installation.From now on, it doesn't matter which chainring is combined with which crank and bike.Installation is so simple and fits every bike.The Bluetooth sensors transmit the crank movement and speed 10 times per second. This ensures precise motor control.Scope of delivery:1x Bluetooth speed sensor incl. CR2032 button cell1x O-ring set

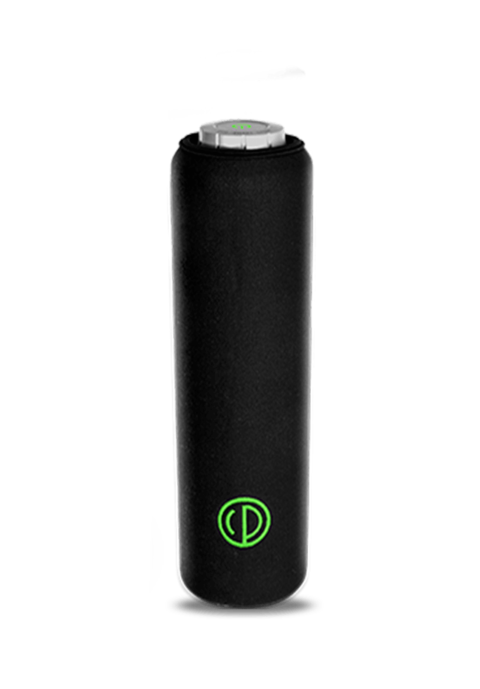

Neoprene cover for Pendix battery. Pendix Motor Cover Weather protection: Ideal for the cold season to keep the heat in the battery during operation - almost full performance at sub-zero temperatures. Against damage such as scratches, impact and stone chips.

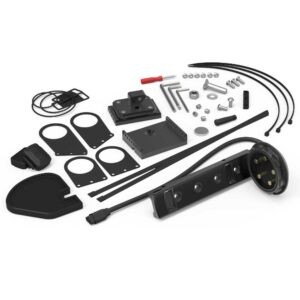

For all bikesDo you have a second bike and want to enjoy the benefits of electric assistance here too? Why not equip more than one bike with add-e? One of the great advantages of add-e is that you can transfer the drive and battery from one bike to the other in a matter of seconds. Everything you need is included in our mounting kits.

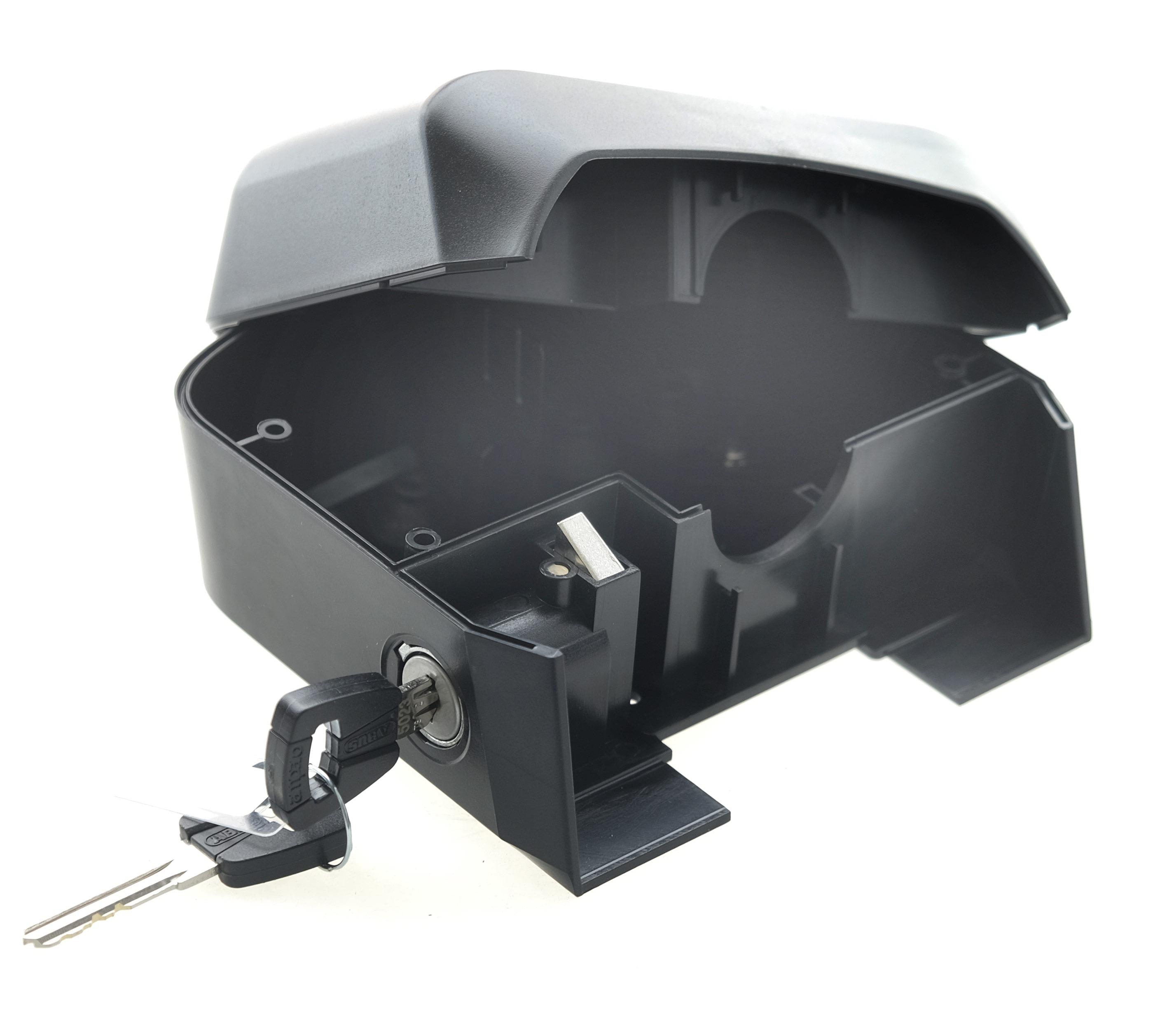

Lock with 2 keys for VRI controller box (ABUS lock)
...fuer Analogsysteme von Heinzmann - hier als superrobuster Drehgriffregler mit An- Abschalter und LED Signal. Kabellänge: 2,4 Meter

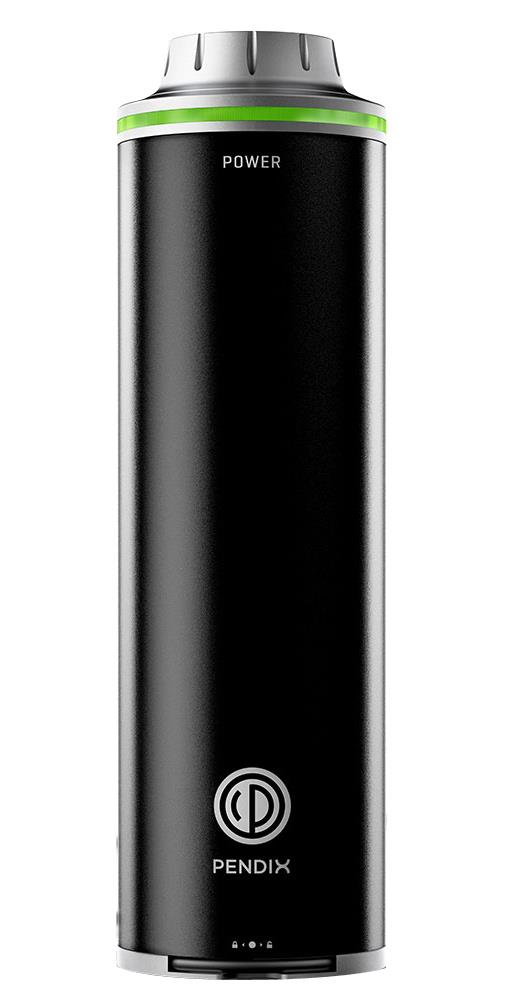

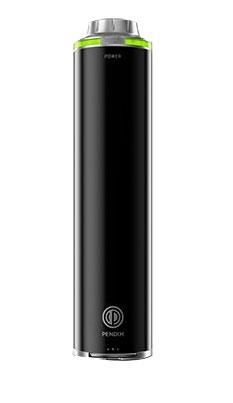

Pendix battery 497 Wh48 volt battery with 80 x 342 mm dimensions and 2.9 kgRange forecast 62-120 kilometres depending on riding style and other environmental parameters. Environmental parameters.USB - yesBluetooth - yes

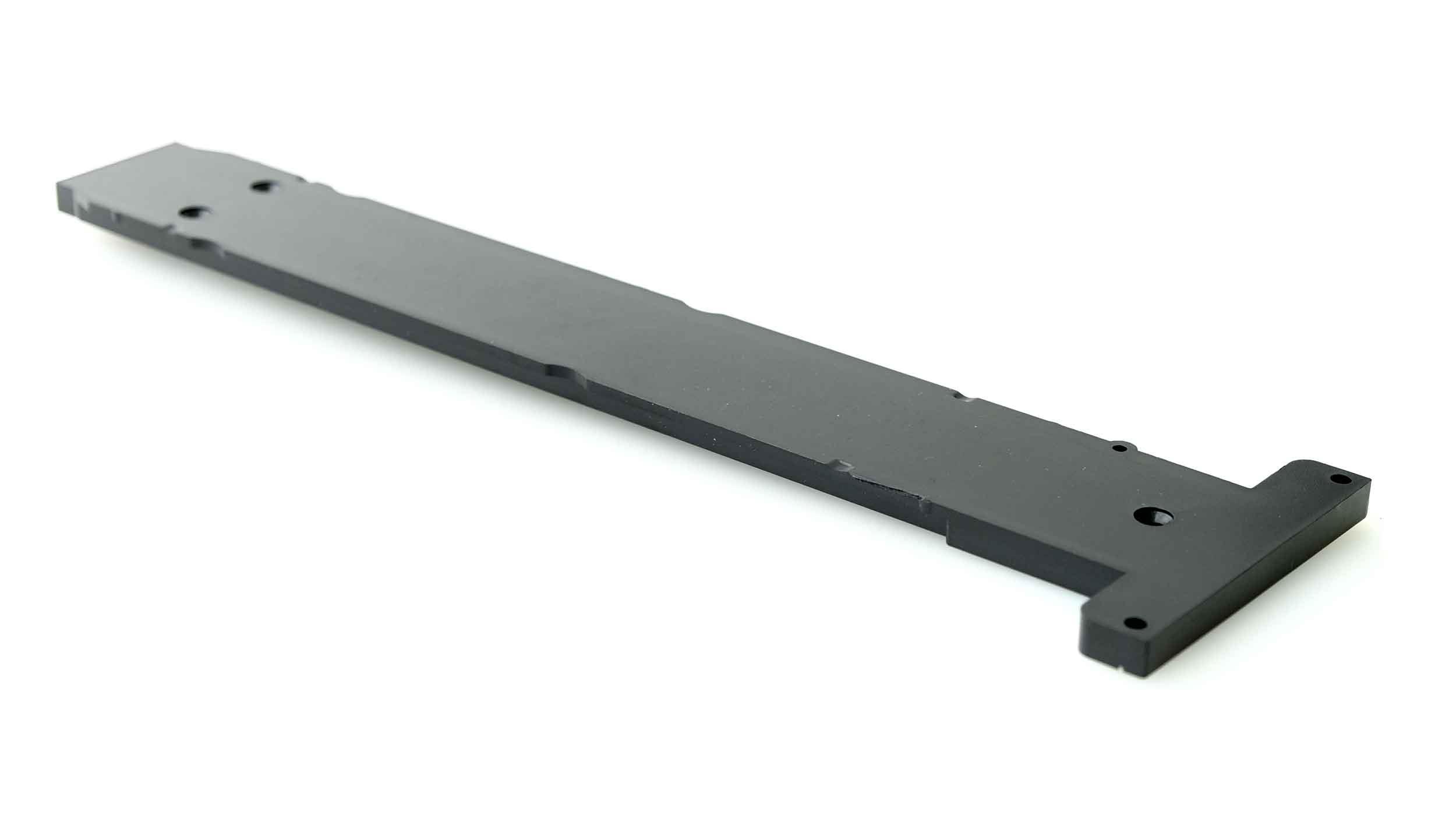

Akkuschiene für Gepäckträgerakku DirectPower Heinzmann
Control unit suitable for luggage carrier DirectPower Heinzmann 880-80-266-00 here with standard cable lengths motor 2350 mm, sensor 2350 mm, display 2100 mm. Other cable lengths available on request; please contact us.

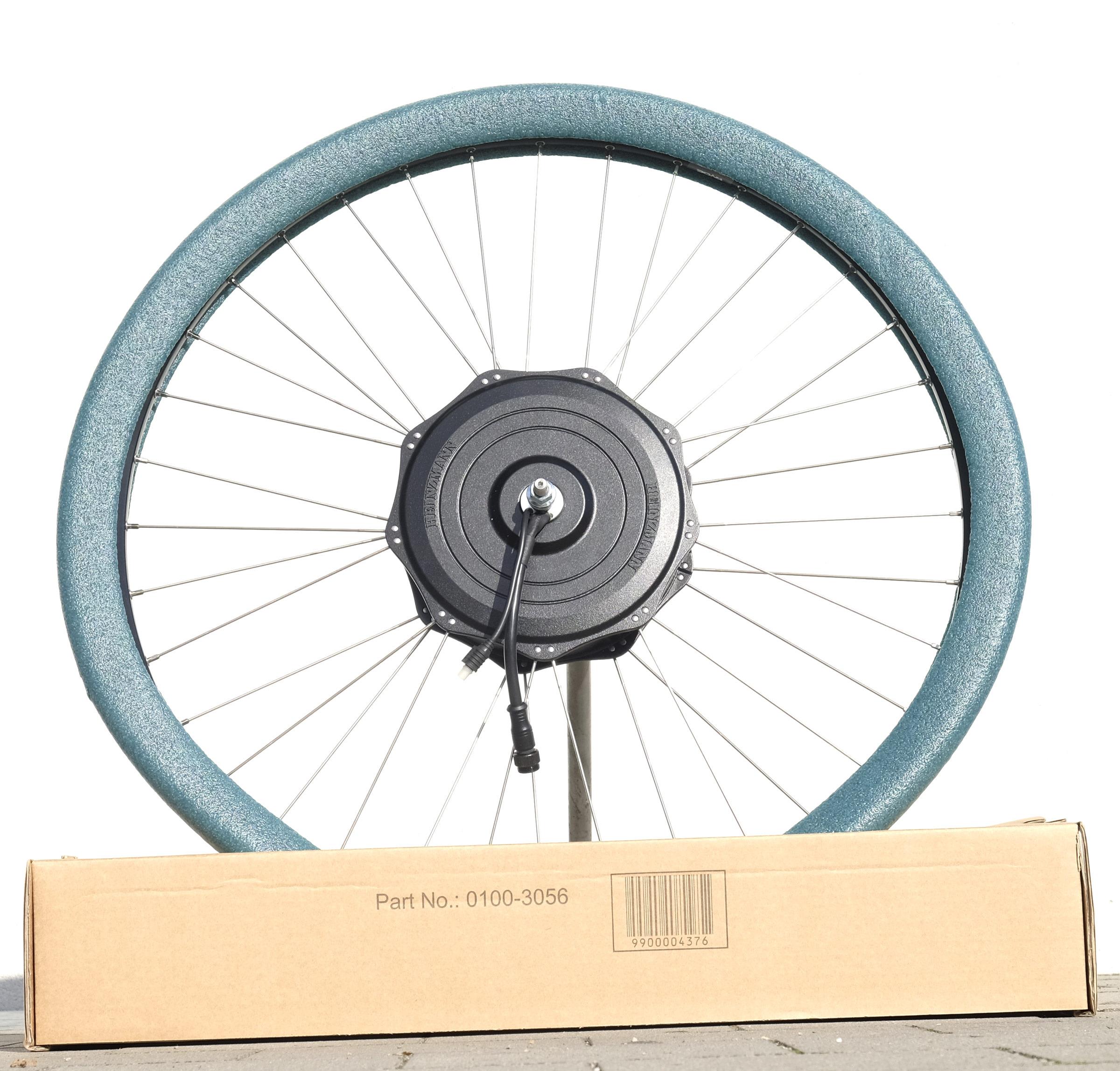

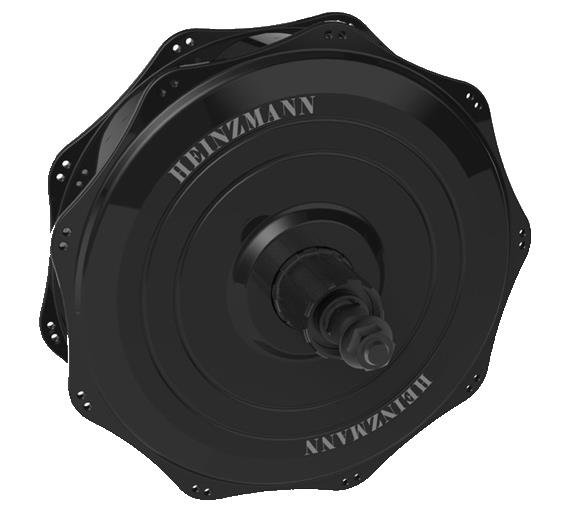

Built-in hub motor 24V 250W in 26" rim with tyre and inner tube
The docking station is the interface between the battery and the charger. It can be charged safely and quickly with any suitable charger.Included as standard in every drive set, the docking station can of course also be ordered separately, e.g. for additional chargers etc.
Software for updating to version 1.32 of Heinzmann Direct Power Systems on USB stick (Intenso® 64 GB).No variables can be set; only the BMS and controller software can be updated. USB stick can be used freely.
THE BLUETOOTH THUMB SWITCH With RELO, your bike can be operated intuitively and without cables. Use either the MyRELO app or the wireless thumb switch on the handlebars to select one of the three drive levels. It connects to the drive unit via Bluetooth LE at the touch of a button and allows you to always ride your bike with the right power.
RELO gearbox Gear With additional gearbox modules, you can equip more bikes with RELO. Thanks to our modular system, you can swap the motor and battery between bikes at any time. The gearbox adapts exactly to the shape of your bike. The crown wheel gearbox and the two chain stages are encased in magnesium and ensure safe and efficient power transmission to the bottom bracket: light, stable and absolutely maintenance-free! Thanks to the integrated freewheel, pure cycling is also possible at any time.Weight: 1.5 kgFreewheel: YesHousing: MagnesiumTorque: 45 NmSpeed: 25 km/h regulated by lawScope of delivery:1 x gearbox1 x bracket + mounting parts1 x bottom bracket adapter1 x thumb switch

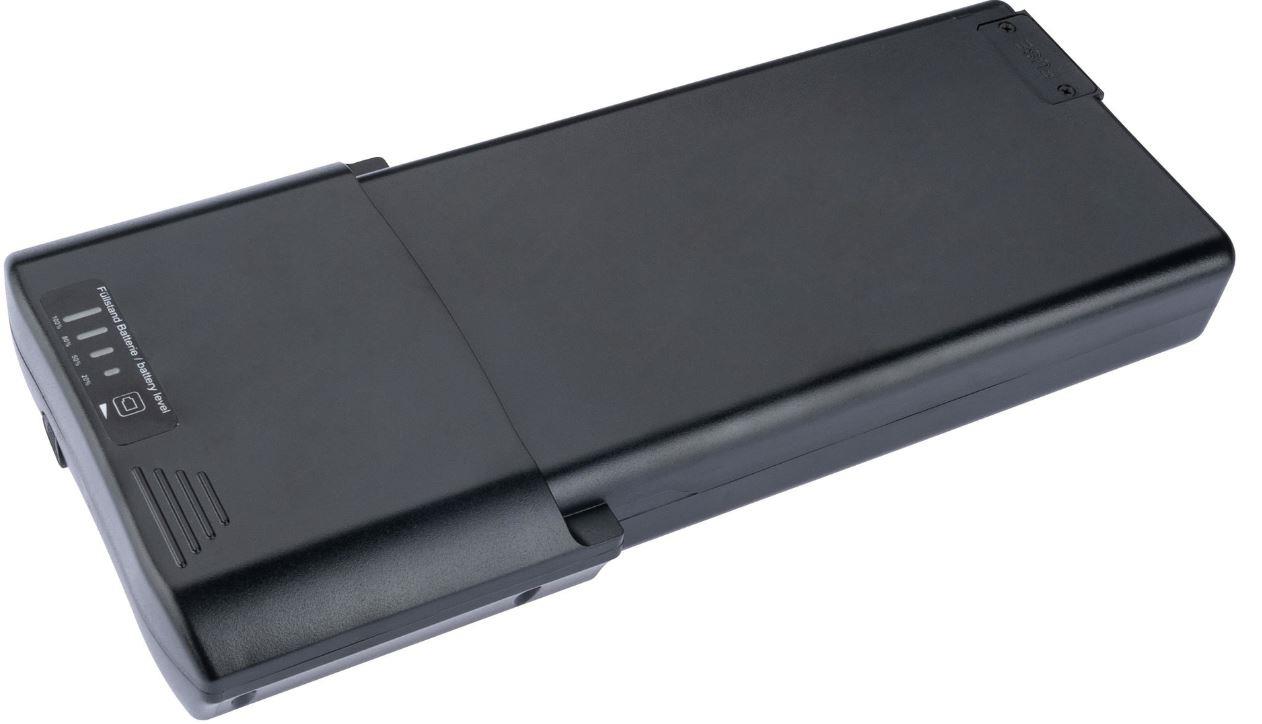

Original Ansmann lithium battery for Ansmann electric drives - rack battery 36 volt systemLiNiMnCo02 lithium battery, 36VMeets the highest safety standards. Overvoltage protection, overtemperature protection, charge and discharge balancing, short-circuit protection (fuse) and range optimisation management(Panasonic cells)Versions 9 Ah / 11.4 Ah / 14 Ah~ 2.5 kg
36Volt charger HEINZMANN with 3-pin XLR plug

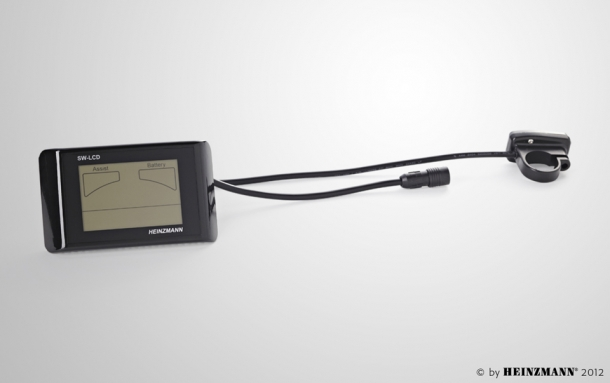

All important indicators on one display and a push-button module for operation directly next to the handlebar grip - for DirectPower Heinzmann system The display provides information on the assistance level, speed and battery status. It can also be operated safely while riding using the separate control unit on the handlebars. 010-69-236-00 LED backlighting Easy to read, even in bright/sunny surroundings Clear display of assistance level, speed and battery status Simple, quick switching on of the starting aid Theft protection through user-specific PIN

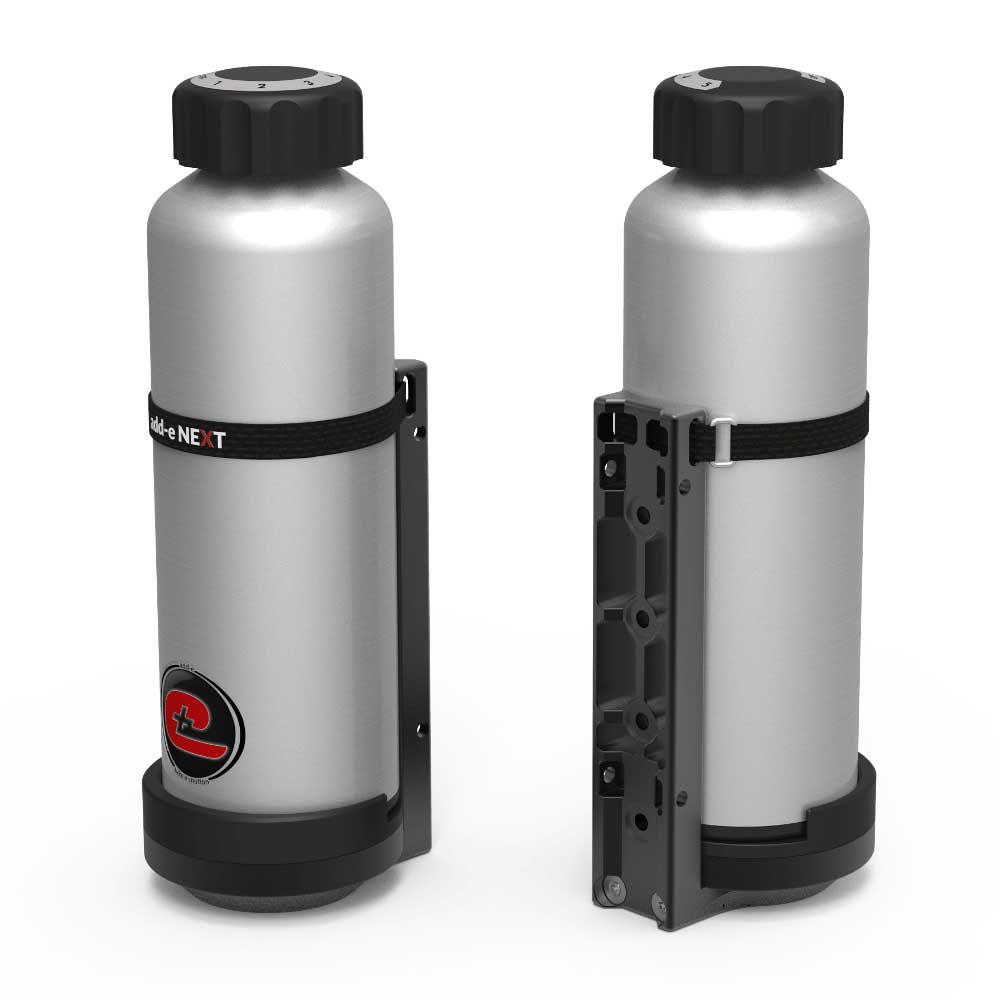

Adapter for drinking bottle battery to the latest add-e NEXT system - With this adapter, it is possible to use the classic drinking bottle battery in combination with the NEXT battery holder. The adapter is fixed to the battery holder with a twist and the water bottle battery is plugged into the holder. The battery must also be secured with the enclosed "strap".

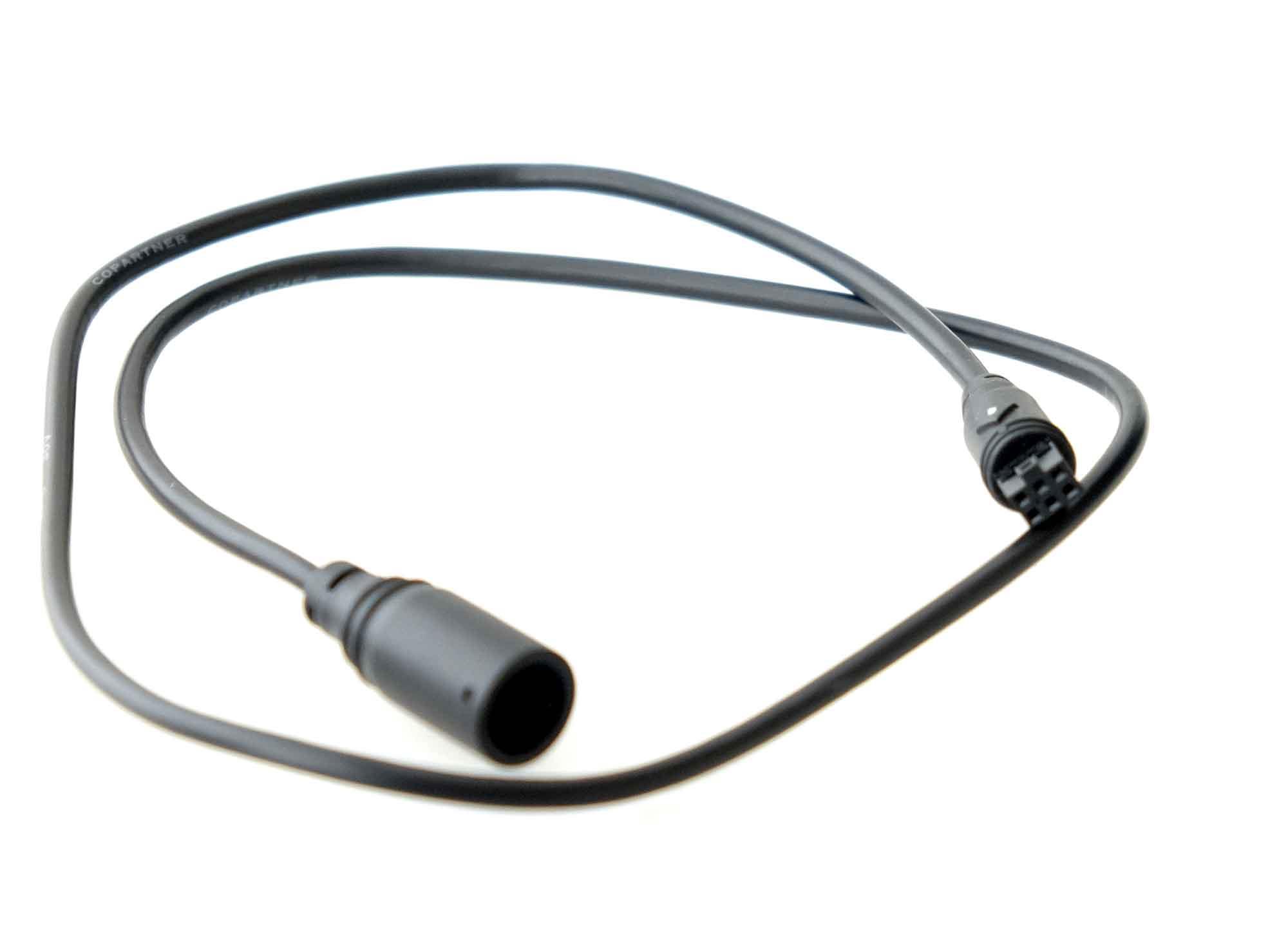

...wenn das Sensorkabel nicht bis zum Steuerungskabel langt; hier die Verlängerung mit 0,5m
