HEINZMANN the PIONEER FOR BICYCLE MOTORS
...proven for decades!
LINK to the manufacturer: Bicycle & Wheel Hub Motors - HEINZMANN Electric Motors

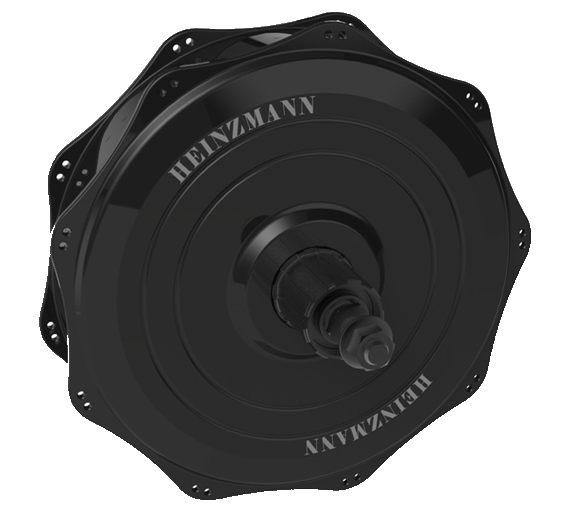

The HEINZMANN PRA 180 bicycle drive is characterised by its innovative technology and flexibility. Brushless and gearless design minimises maintenance and wear. In combination with the system components of the DirectPower System, the PRA 180-25 guarantees maximum drive power. The possibility of rotating the drive in both directions makes it suitable for a wide range of applications in addition to the e-bike market. The rehab sector is just one example. .
• High torque reserve
• Without gearbox
• Noiseless
• Maintenance-free

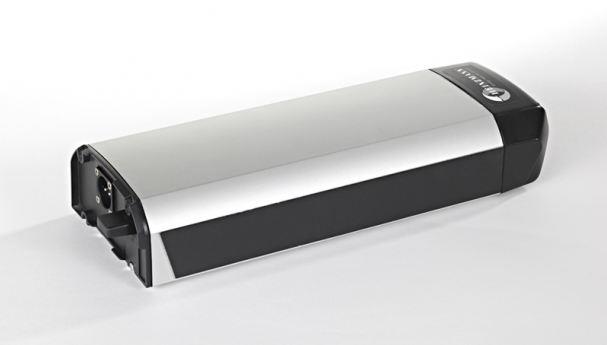

Lithium battery for DirectPower system Heinzmann 36V 14.25 Ah 50 Li-Ion cells 3.7V Pannier rack mounting 870-81-146-03Approx. battery range in km (approx.) (force sensor / motion sensor)* with 14.25 Ah battery pack and pedelec operationOn level ground 100 / 65Mix of routes 75 / 40Many inclines 40 / 25Approx. range Battery range in km (approx.) (e-bike = all-electric electric bike or speed bike with up to 45 km/h)*with 14.25 Ah batteryOn the flat 40 / 65Mix of routes 25 / 40Many inclines 15 / 25With RoPD® plug connector for high-quality connection between bike and battery - Magnetic self-discovery and breakaway function (used to interrupt the connection if the plug or cable is subjected to an acute (intentional or unintentional) tensile force.


The powerful, quiet motor version PRA 180-30 E-Bike black 880-00-170-00 from Heinzmann Made in Germany - with disc brake mount, recuperation, brushless and stable incl. cassette sprocket mount. Please specify in the free text of the order for which rim size. 135 mm fork installation width is necessary, disc brake mount left in direction of travel) with recuperation function - here for rear wheel installation (order spokes separately - see article 10620) - This 500 watt version is only approved for use on public roads with a light motorcycle approval! 880-00-170-00

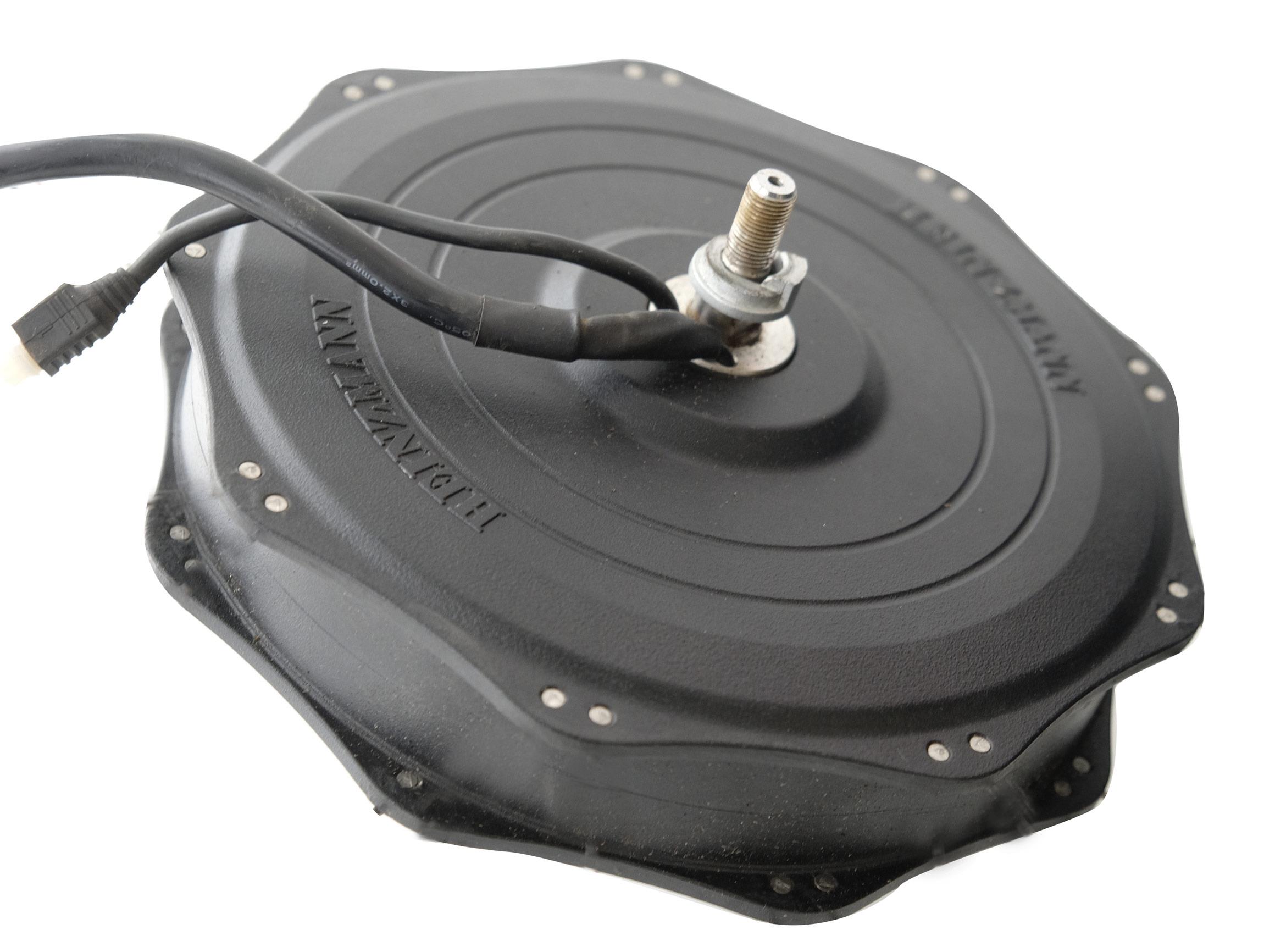

The powerful, quiet direct drive motor PR180-25 from Heinzmann - Made in Germany - with disc brake mount, recuperation, brushless and stable. Please specify in the free text of the order for which rim size (20 inch, 24 inch, 26 inch or 28 inch) 100mm fork installation width is required, disc brake mount on the left in the direction of travel) with recuperation function - here for front motor installation (order spoking separately - see article 10620).

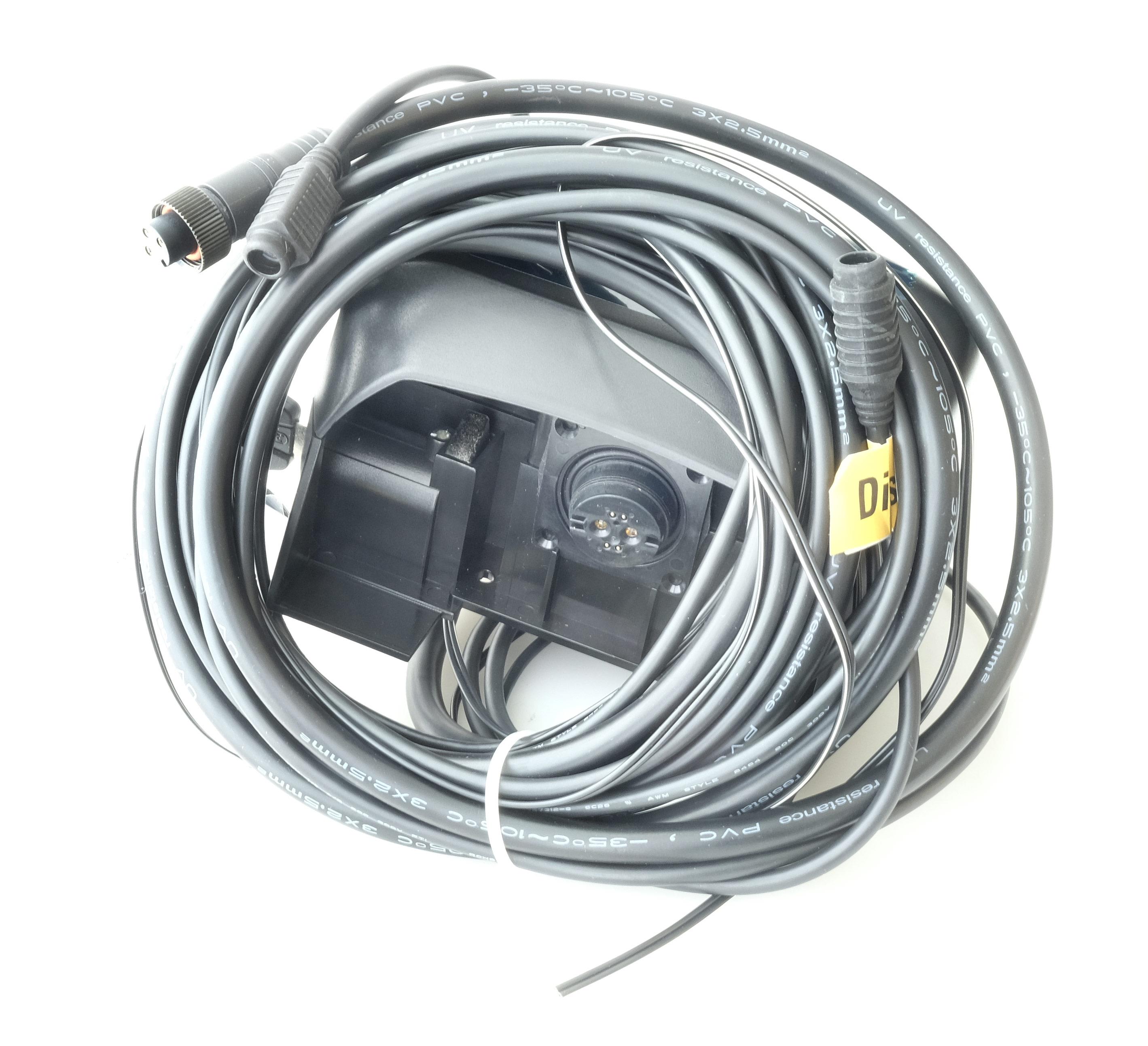

Control unit suitable for luggage carrier DirectPower Heinzmann 880-80-266-00 here with standard cable lengths motor 2350 mm, sensor 2350 mm, display 2100 mm. Other cable lengths available on request; please contact us.


Control unit suitable for luggage carrier DirectPower Heinzmann 880-80-266-00 here with standard cable lengths motor 2350 mm, sensor 2350 mm, display 2100 mm. Other cable lengths available on request; please contact us.Controller box carrier battery with standard assembly: 2350/2400/850/2100/0/2000/1300Used controller checked and technically OK. - good condition - sale according to differential tax law §25a USTG without VAT shown. Reduced warranty of 12 months (instead of 24 months as with new appliances).


estelle Heinzmann digital controller for retrofitting or as a replacement - please state the motor number in the free text of the order so that we can send the appropriate controller.

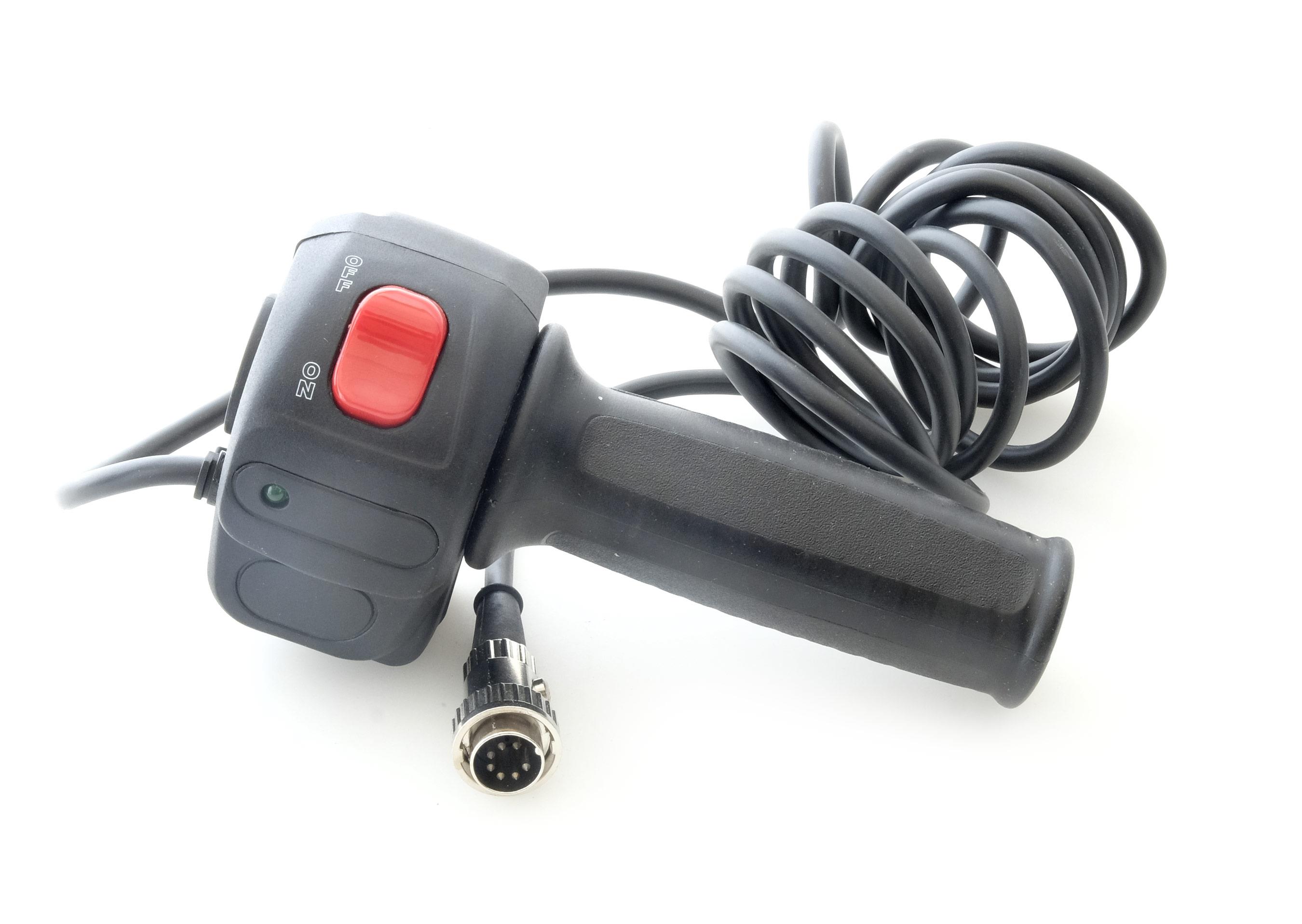

...fuer Analogsysteme von Heinzmann - hier als superrobuster Drehgriffregler mit An- Abschalter und LED Signal. Kabellänge: 2,4 Meter

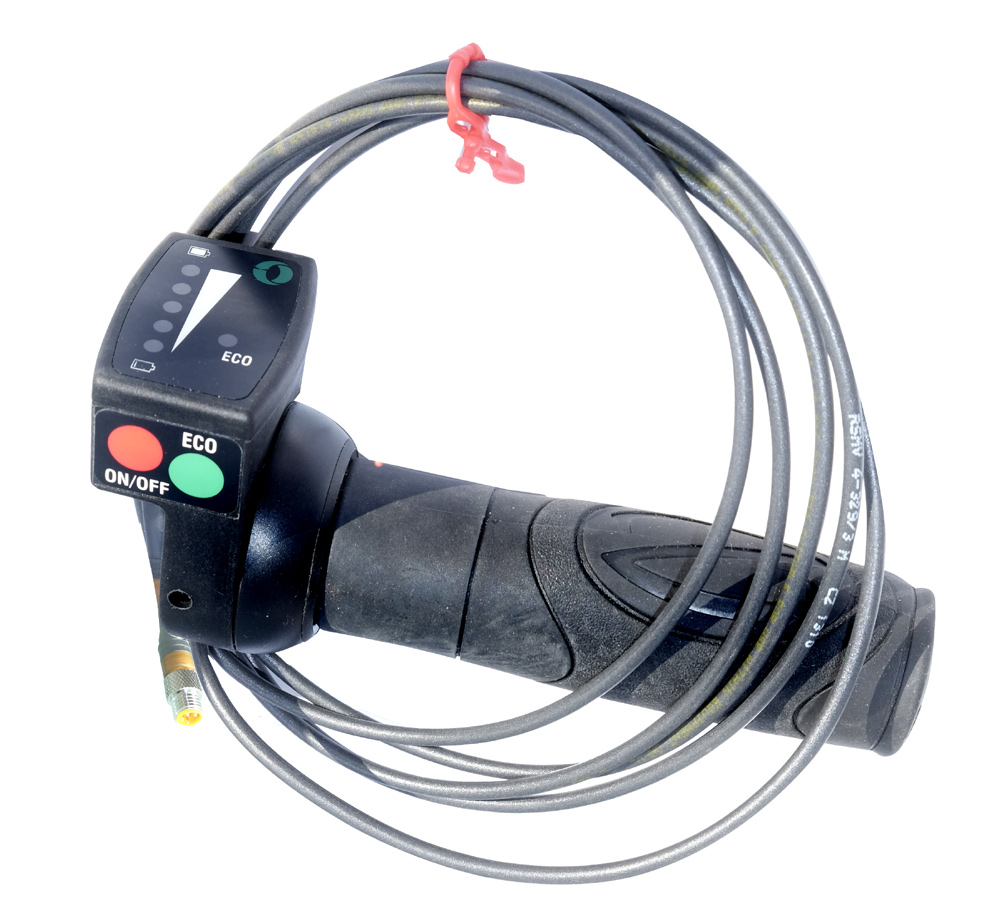

Hand control handle Heinzmann Motor System Digital Classic (from ~2008) with cable length 1.7 metres

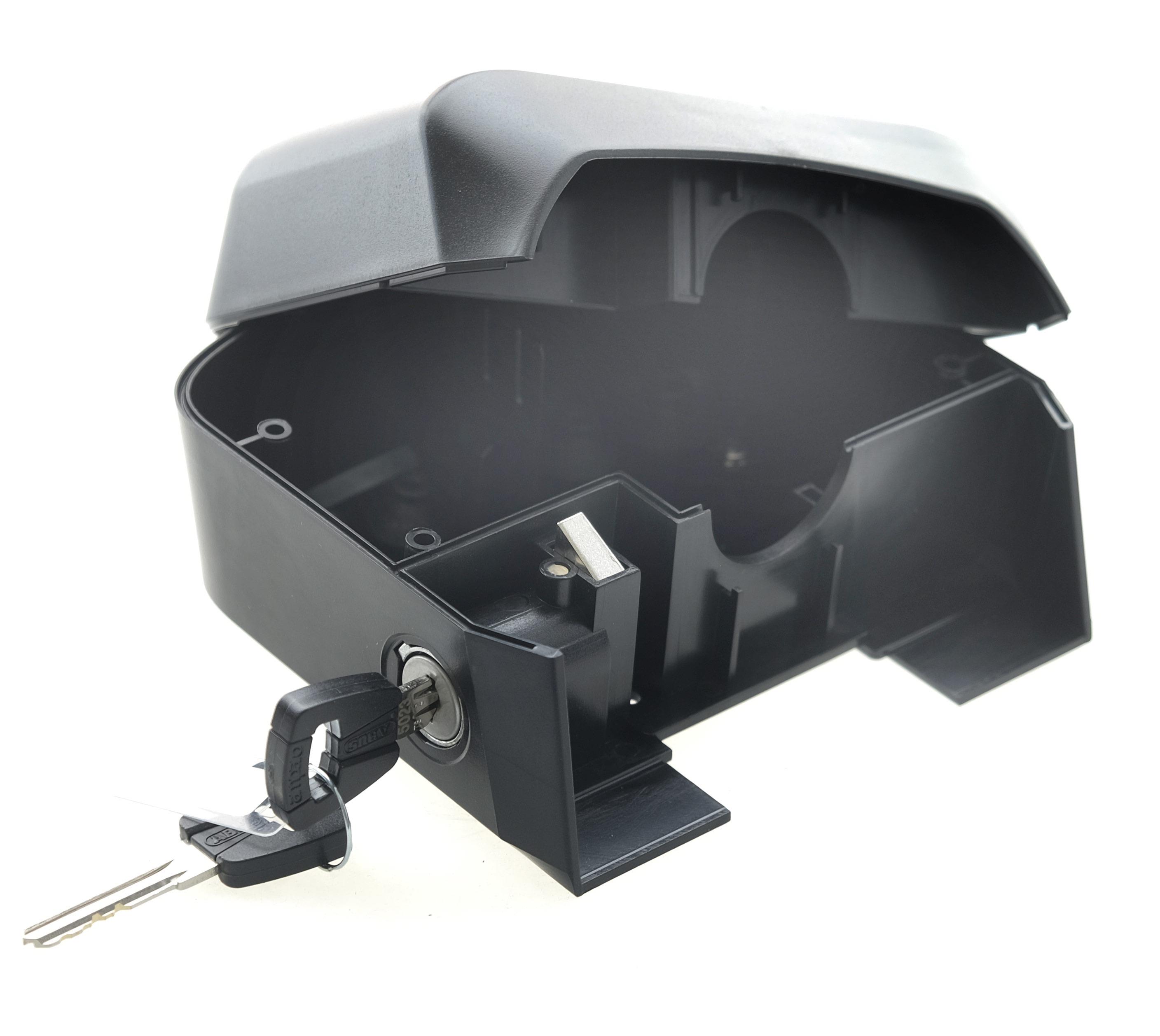

...Luggage carrier control box empty / controller box luggage carrier battery incl. lock and pair of keys

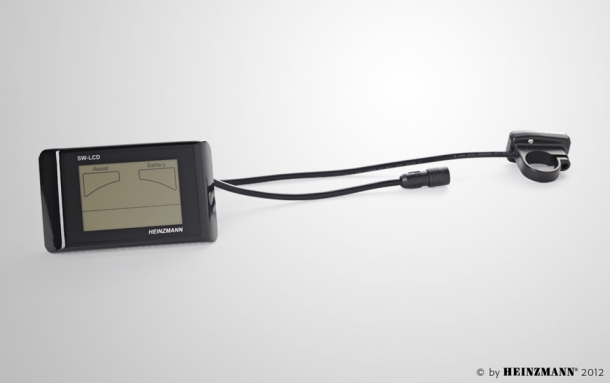

All important indicators on one display and a push-button module for operation directly next to the handlebar grip - for DirectPower Heinzmann system The display provides information on the assistance level, speed and battery status. It can also be operated safely while riding using the separate control unit on the handlebars. 010-69-236-00 LED backlighting Easy to read, even in bright/sunny surroundings Clear display of assistance level, speed and battery status Simple, quick switching on of the starting aid Theft protection through user-specific PIN


...suitable for battery and DirectPower control unit, fits 26" and 28" with top spring flap 870-00-350-0396


Service adapter (PC - controller box) ODU plug soldered to USB adapter, connection between DirectPower and software on PC - is connected instead of display for programming ODU plug to FTDI adapter.


for 36Volt Heinzmann lithium batteries of the Heinzmann Classic System.Replica.Output current (max.) 1.87 AOutput current (max.) - rounded 1.87 AHeight 50 mm Length 190 mm Width100 mmOutput 4-pin XLR plugInput voltage 90 V/AC 264 V/ACInput voltage (max.) 264 V/ACInput voltage (min.) 90 V/ACOutput voltage 48 V/DCPower (max.) 90 WWeight 450 g

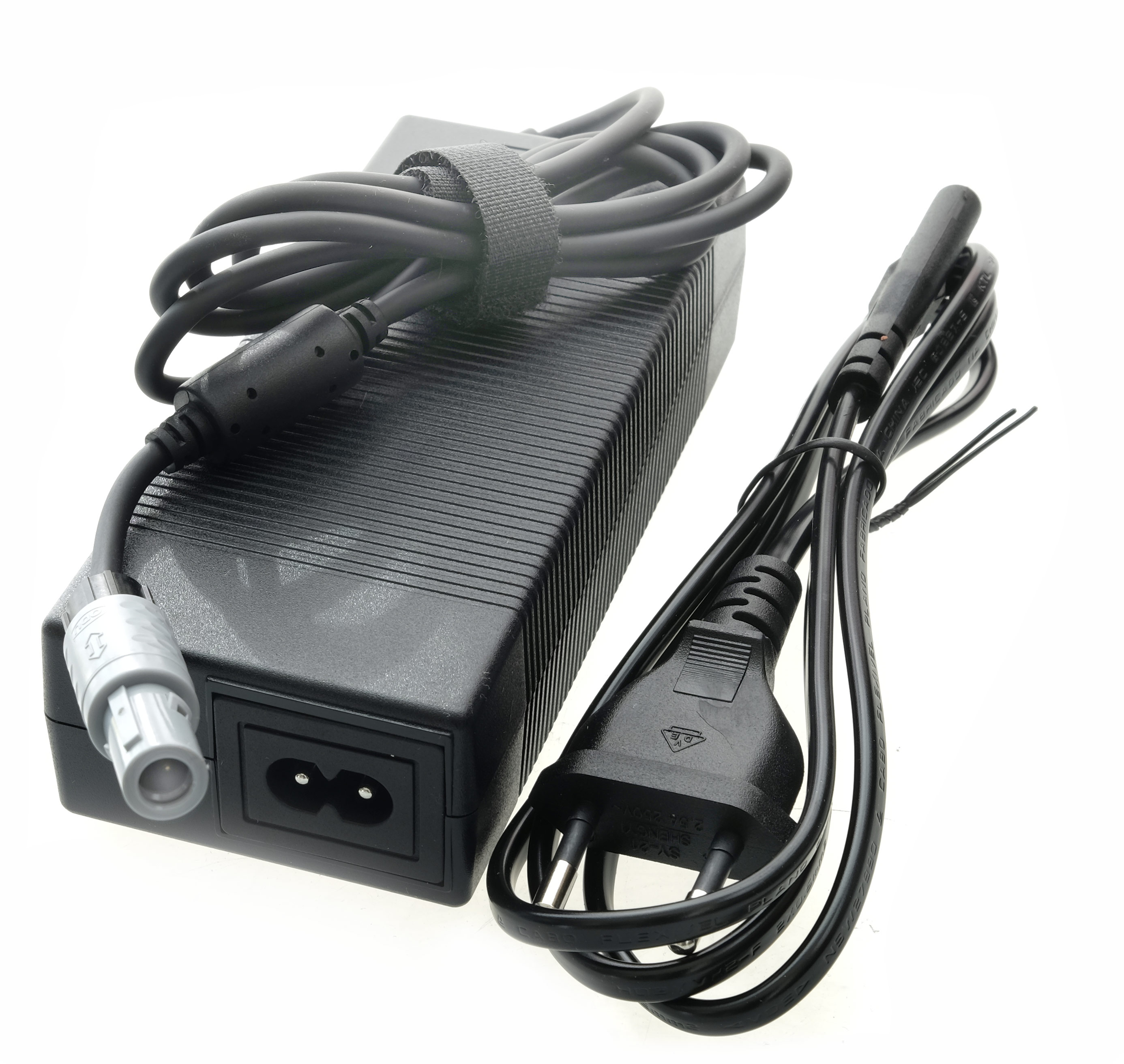

...suitable for lithium battery DirectPowerSystem Output 42V 2A


Spoke rim 20 inch, 24, 26 or 28 in black or silver - please enter your choice in the free text field when ordering! Delivery time extension approx. 14 days.

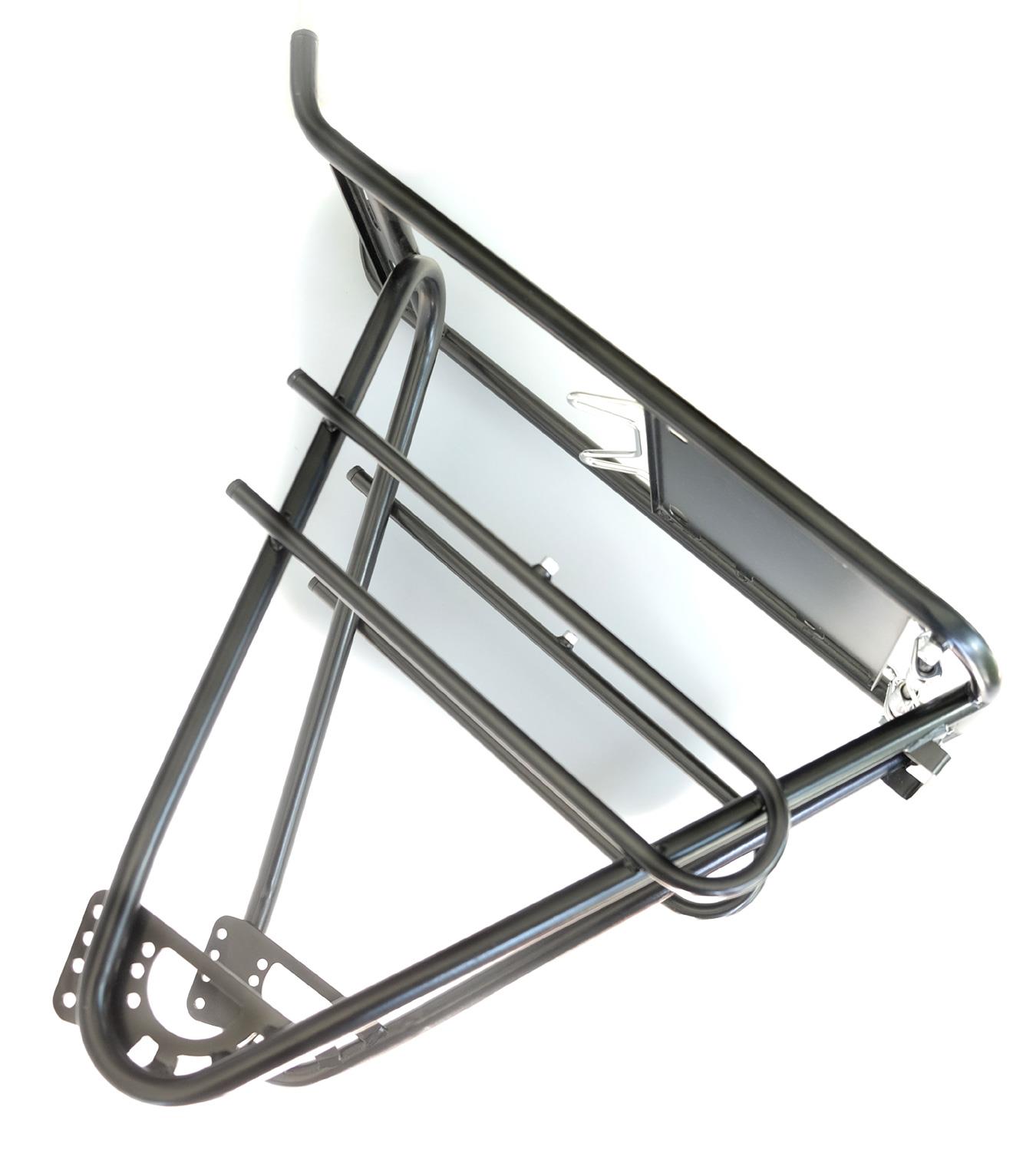

Fits (almost) every commonbike without exception and offers an optimal mounting optionfor the control unit and the battery bag of the Heinzmann Classic Systems. Here minimal small scratches on the rack therefore 10% cheaper than EVP.


RoPD® - Rosenberger Power Data connectors have been specially developed for LEVs such as e-bikes, e-scooters and pedelecs.They ensure a fast and reliable magnetic connection and are particularly suitable for data communication and power transmission at voltages of up to 60 V and current loads of up to 40 A. The magnetic interlock and precise self-finding function prevent damage to the connector or the device due to interruptions. In addition, the pin and coupler design enables a large number of mating cycles.Magnetic self-finding & breakaway function - this function is used to break the connection if the connector or cable is subjected to an acute (intentional or unintentional) tensile force.Here for connection to the control board of Heinzmann® DirectPower systems.

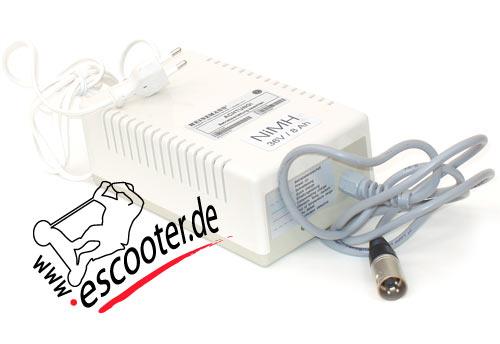

36Volt charger HEINZMANN with 3-pin XLR plug


Heinzmann twist grip - push-assist function (pedelec) or drive function (e-bike) with DirectPower drive - with short cable and plug.

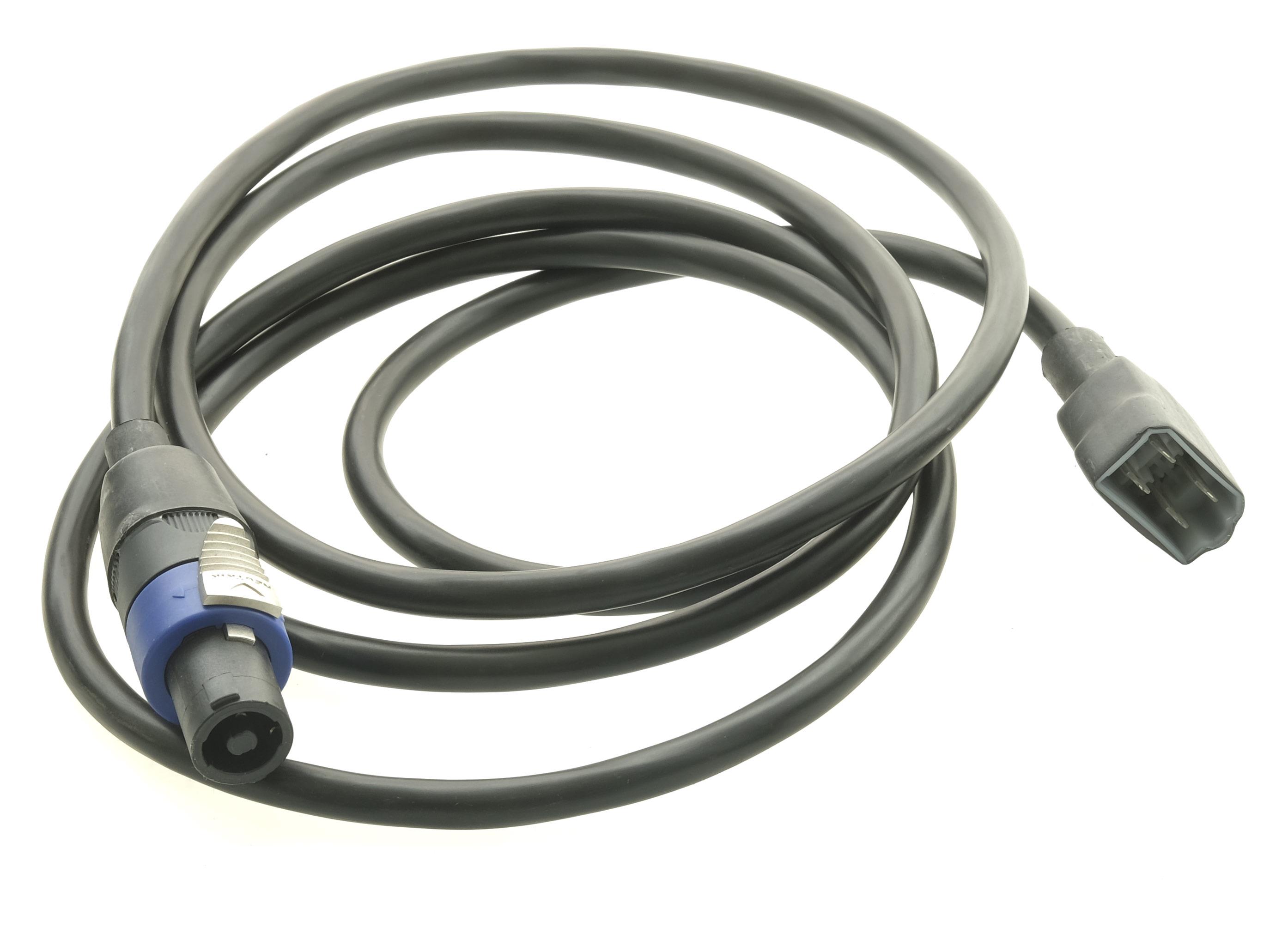

Motor cable extension for Heinzmann Classicsystem ~ 2000 mm length.


Motorkabel Powerkabel fuer Heinzmann DirectPowersystem bis 3000 mm länge - offen.


Lock with 2 keys for VRI controller box (ABUS lock)


Akkuschiene für Gepäckträgerakku DirectPower Heinzmann


...wenn das Sensorkabel nicht bis zum Steuerungskabel langt; hier die Verlängerung mit 0,5m


Software upgrade to the latest version


Heinzmann cable 010-02-923-00 / Throttle to control box up to 3000 mm to control box


Software for updating to version 1.32 of Heinzmann Direct Power Systems on USB stick (Intenso® 64 GB).No variables can be set; only the BMS and controller software can be updated. USB stick can be used freely.
