add-e small but powerfull.

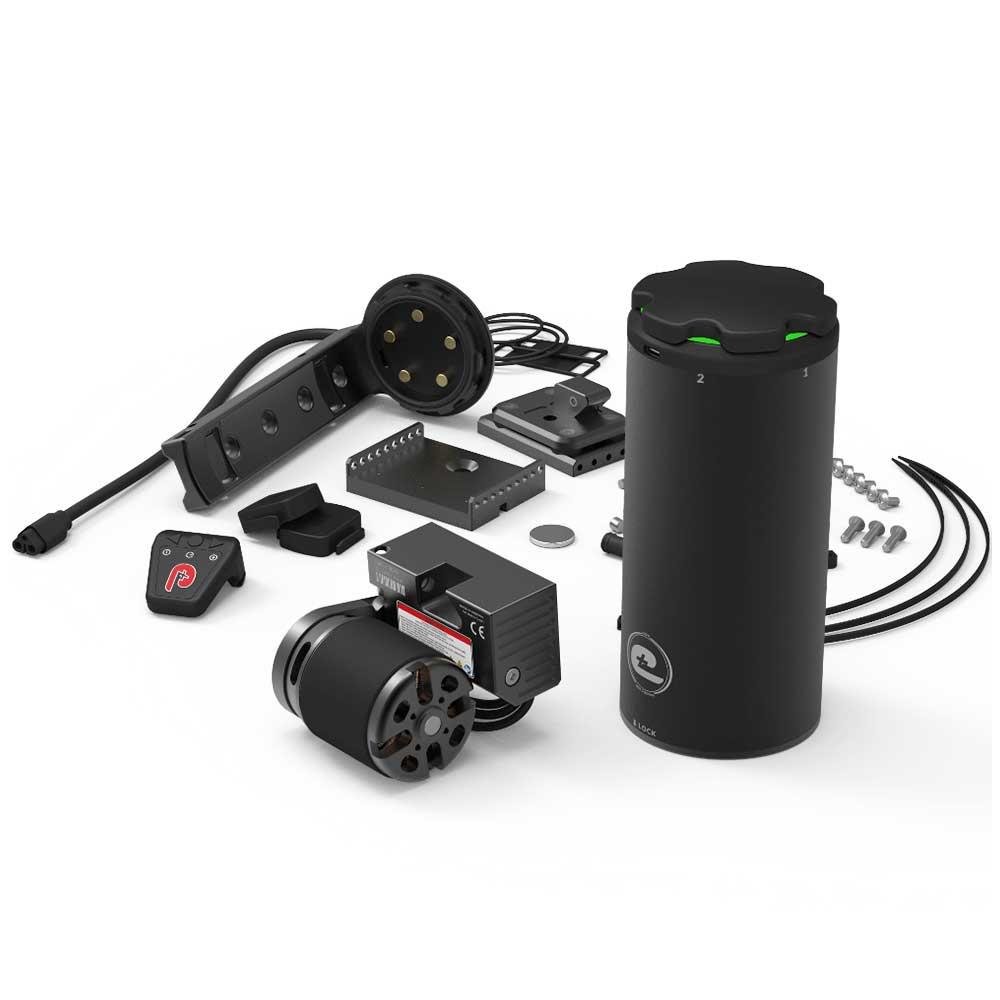

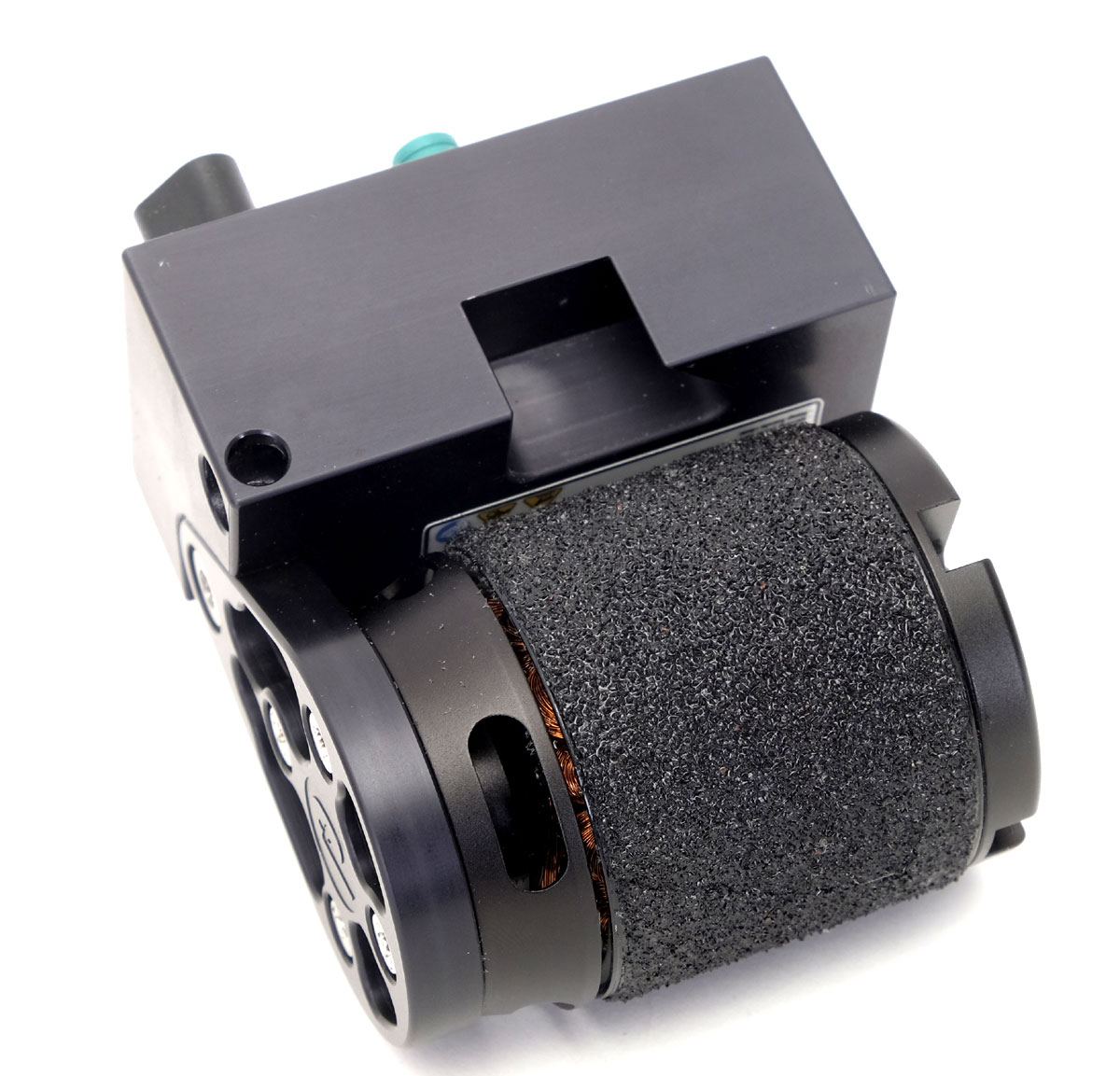

Turn your existing bike into a super light e-bike in no time at all. With the add-e retrofit drive, you can easily upgrade almost any existing bike and enjoy the advantages of two worlds. Powerful support whenever you want it, without the weight and inertia of a normal e-bike.The add-e NEXT Sport Edition is delivered with a throttle of 25 km/h AND CAN BE LEGALLY USED WITHOUT FURTHER CONVERSIONS - WITHOUT REGISTRATION. This throttling can be lifted using a dongle, BUT THE MOTOR IS NOT LEGAL TO USE ON ROADS IN MOST EU COUNTRIES.Drive unit:Power: max. 600 WSpeed: up to max. 45 km/h (delivered with a throttle of 25 km/h only)Weight: 800 gMotor: brushless synchronous motor (external rotor)Dimensions: 7x8x8 cm (H/W/D)You can choose between 5 support levels using the power adjustment on the battery. This allows you to compensate for certain deficits when riding in a group with low support (50 watts - first level), or to effortlessly overcome annoying climbs, e.g. at the 4th level (200 watts). The actual range depends heavily on the selected assistance level, the rider's own performance and external influences.We have also taken a significant step forward with the new electronics of the add-e NEXT. The significantly higher computing power of the controller used now makes it possible to deliver the motor power up to 1000 times more precisely and much more evenly. This not only leads to more torque and more powerful assistance on the mountain, but also reduces noise to almost zero.add-e NEXT has intelligent Bluetooth sensors that continuously calculate speed and crank speed while riding. Without cables, this information is transmitted in "real time" and enables unprecedented precision in motor control. This makes it possible to further optimize the switch-on delay after starting and to provide support even at the lowest speeds.An additional advantage of the new Bluetooth sensors can be seen during installation. From now on, it doesn't matter which chainring is combined with which crank and bike. Mounting is even easier and fits "every" bike.A Bluetooth handlebar switch is available as an option exclusively for all add-e NEXT editionsIncluded in delivery:add-e NEXT drive unitadd-e battery depending on choiceadd-e power supply incl. Country-specific charging cableadd-e NEXT mounting set with new Bluetooth sensors (incl. silent block)DongleLegal informationAccording to the pedelec standard EN 15194/2017, the maximum assistance speed is 25 km/h with a nominal continuous output of 250 W. The add-e NEXT Sport is supplied with mapping 2. This means with a maximum assistance speed of 25 km/h and a maximum power of 600 W. This corresponds to the standard stated above, as the 600 W is an indication of the peak power.The add-e NEXT Sport Edition makes it possible to ride at an average higher speed (max. up to 45 km/h). In order to use the add-e NEXT Sport in the EU in compliance with the law, it is delivered from the factory with mapping 2 (25 km/h, 600 W peak power). These parameters can only be changed if a dongle is fitted to the drive unit. If this dongle is not carried along after the adjustment, there is no risk of tampering even in the event of an accident and the set maximum speed (25 km/h) also applies to add-e NEXT Sport as the maximum design speed in accordance with the approval-free pedelec standard EN 15194/2017.The parameters can be changed at your own request using a dongle, both for the motor power and for the maximum speed, but this then no longer complies with the EN 15194/2017 standard.If the selected configuration does not comply with the applicable legal regulations of the current country, the add-e NEXT may only be used with special permission and/or for racing and/or on private property.The legislator provides for different regulations for the use of e-drives on bicycles in different countries. As a rule, the entire bike is always used for the assessment. Whether different regulations generally apply when retrofitting an electric motor, e.g. for lighting, also depends on the country and must be observed by the user. The user is responsible for informing themselves about the applicable legal regulations and acting accordingly.

Turn your existing bike into a super lightweight e-bike in no time at all. With the add-e retrofit drive, you can easily upgrade any* existing bike and enjoy the advantages of two worlds. Powerful support whenever you want it, without the weight and inertia of a "normal" e-bike.add-e NEXT is even better than its predecessor. State-of-the-art drive technology and engineering skills from Austria, the land of mountains, make it possible.On the outside, add-e NEXT may hardly differ from its predecessors, but inside the drive unit, especially in the electronics, everything is new.Drive unit:Power: max. 250 WSpeed: up to max. 25 km/hWeight: 800 gMotor: brushless synchronous motor (external rotor)Dimensions: 7x8x8 cm (H/W/D)You can choose between 5 support levels via the power adjustment on the battery. This allows you to compensate for certain deficits when riding in a group with low support (50 watts - first level), or to effortlessly overcome annoying climbs, e.g. at the 4th level (200 watts). The actual range depends heavily on the selected assistance level, the rider's own performance and external influences.We have also taken a significant step forward with the new electronics of the add-e NEXT. The significantly higher computing power of the µController used now makes it possible to deliver the motor power up to 1000 times more precisely and much more evenly. This not only leads to more torque and more powerful assistance on the mountain, but above all reduces noise to almost zero.add-e NEXT has intelligent Bluetooth sensors which continuously calculate speed and crank speed while riding. Without cables, this information is transmitted in "real time" and enables unprecedented precision in motor control. This makes it possible to further optimize the switch-on delay after starting and to provide support even at the lowest speeds.An additional advantage of the new Bluetooth sensors can be seen during installation. From now on, it doesn't matter which chainring is combined with which crank and bike. Mounting is even easier and fits "any" bike.A Bluetooth handlebar switch is available as an option exclusively for all add-e NEXT editionsIncluded in delivery:add-e NEXT drive unitadd-e battery depending on choiceadd-e power supply unit incl. country-specific charging cableadd-e NEXT mounting kit with new Bluetooth sensors (incl. silent block)Dongle

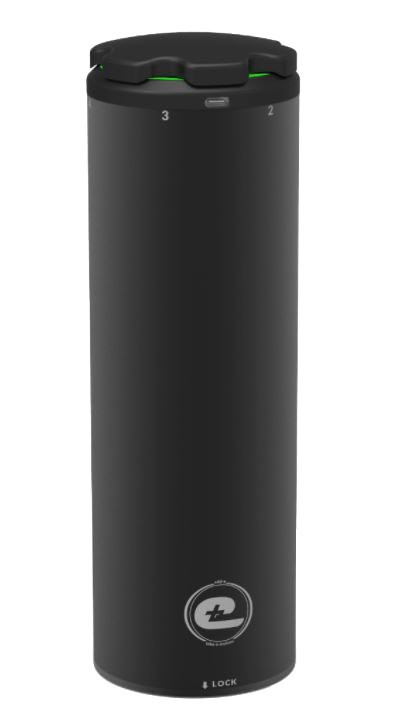

3 different battery variants for different uses:The long-distance battery among the add-e batteries with 450 Wh.Dimensions: 80 x 250 mmWeight: 2.3 kgCapacity: 20.4 AhEnergy: 450 WhVoltage: 25.2 VCharging current max: 9AThe all-rounder among the add-e batteries with 300 Wh. Compact dimensions and yet good endurance performance.Dimensions: 80 x 183 mmWeight: 1.6 kgCapacity: 13.6 AhEnergy: 300 WhVoltage: 25.2 VCharging current max: 6A150 Wh At 900 grams, the smallest of the add-e batteries is a compact lightweight.Dimensions: 80 x 116 mmWeight: 0.9 kgCapacity: 6.8 AhEnergy: 150 WhVoltage: 25.2 VCharging current max: 3A

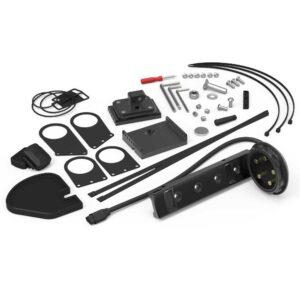

For all bikesYou have a second bike and want to take advantage of electric assistance here too? Why not equip more than one bike with add-e? One of the great advantages of add-e is the ability to transfer the drive and battery from one bike to the other in a matter of seconds. Everything you need is included in our mounting kits.

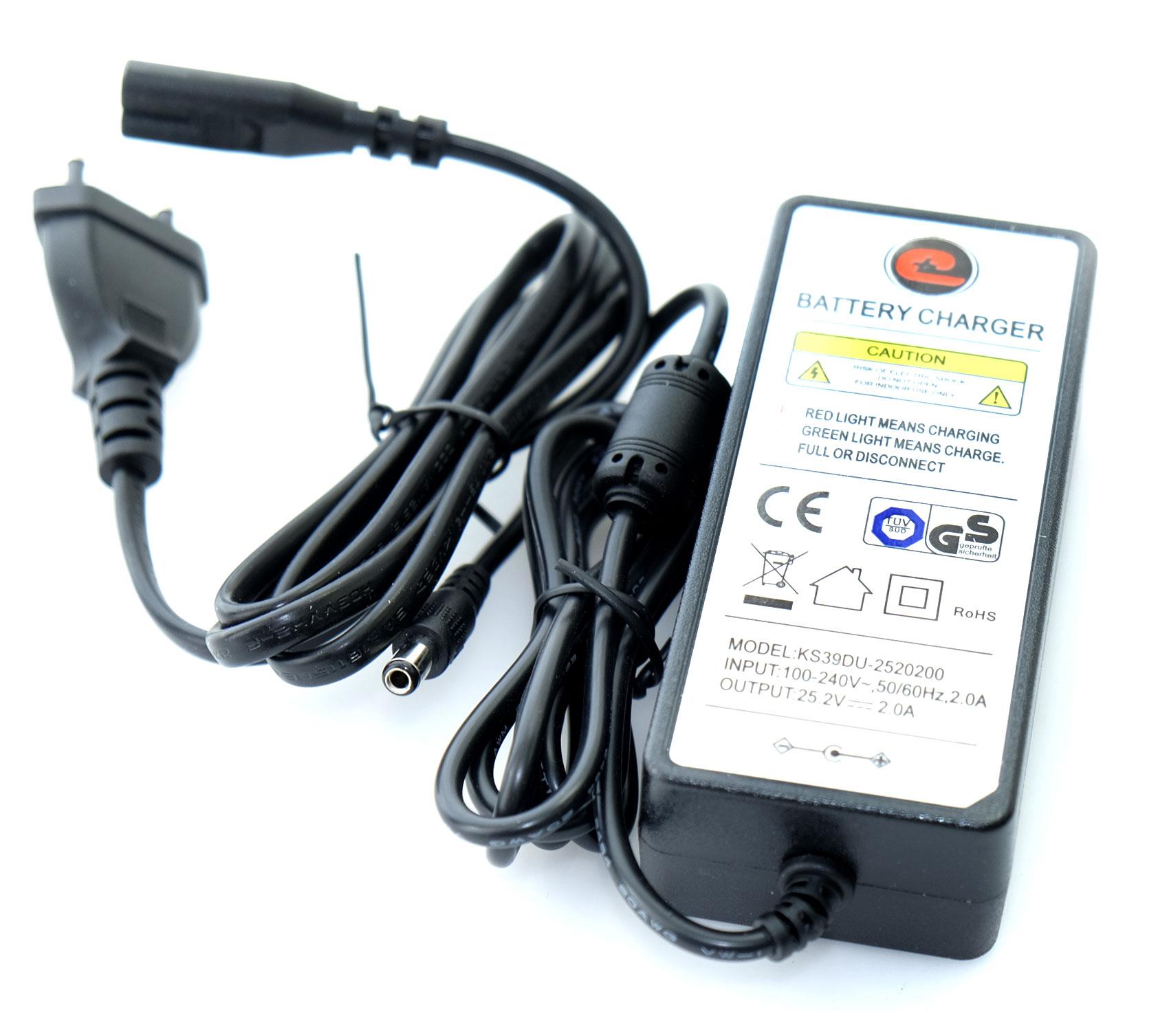

Charger add-e - different versions

Bluetooth handlebar switch add-e

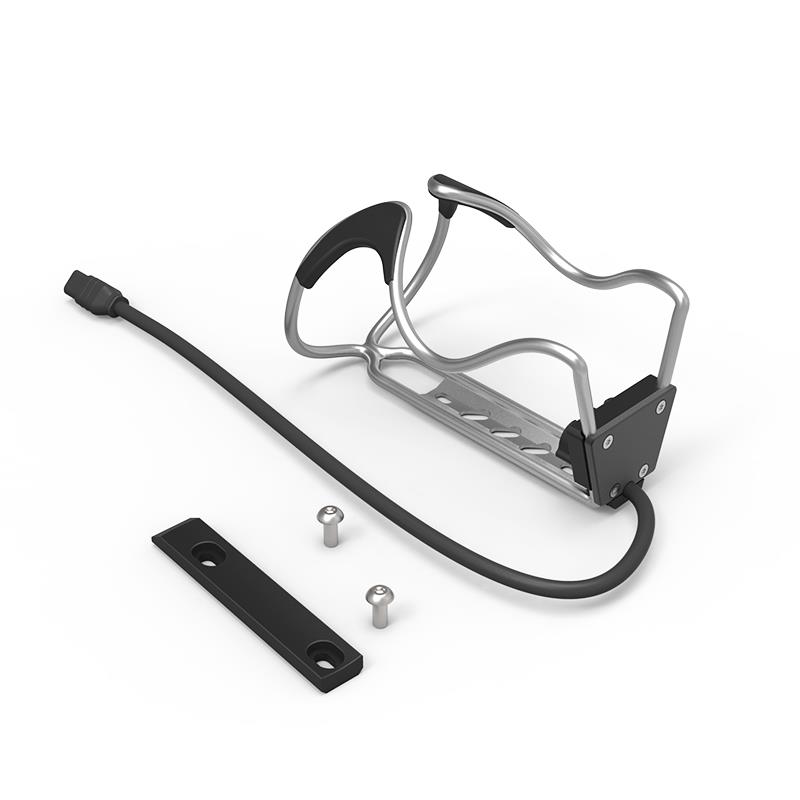

The classic cup holder - compatible only with the water bottle battery - can still be ordered as a single component. Low weight, compatibility with all common sports bottles and absolute understatement were and are the strengths of this generation of battery interfaces.

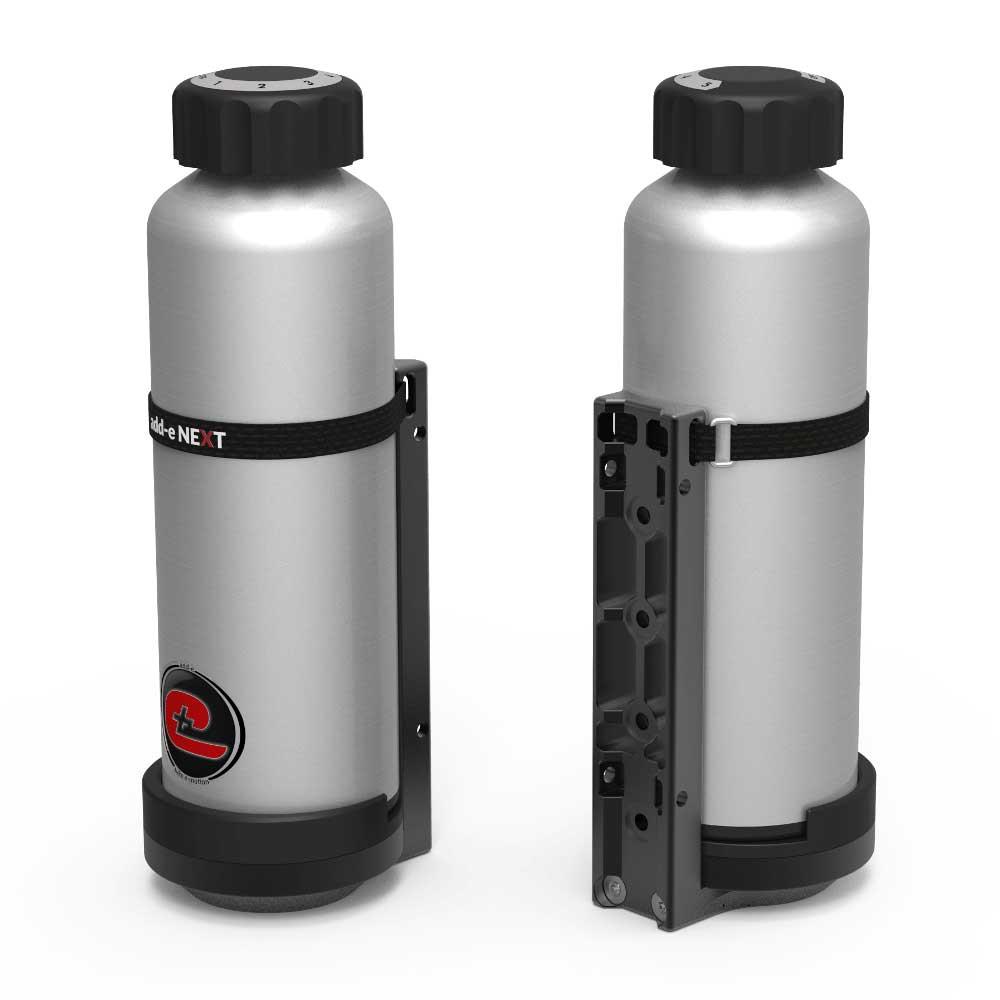

Adapter for drinking bottle battery to the latest add-e NEXT system - With this adapter, it is possible to use the classic drinking bottle battery in combination with the NEXT battery holder. The adapter is fixed to the battery holder with a twist and the water bottle battery is plugged into the holder. The battery must also be secured with the enclosed "strap".

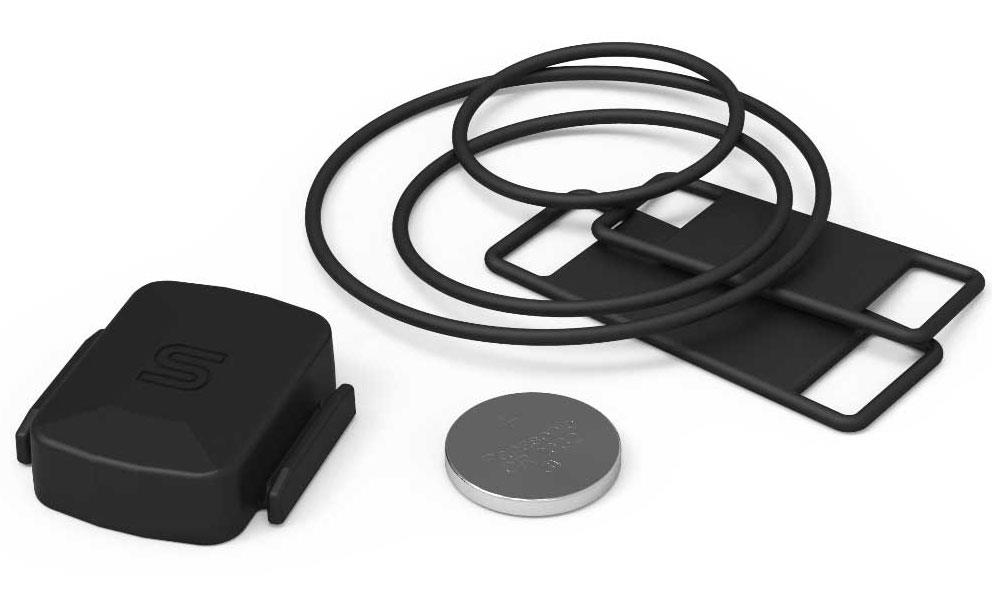

add-e NEXT Bluetooth Sensor Speed (S) for pedal arm mounting or PAS (P) for wheel axle mounting.add-e NEXT has intelligent sensors that continuously calculate speed and crank speed while riding. This information is transmitted in real time without cables and enables unprecedented precision in motor control. This makes it possible to optimize the switch-on delay after starting.An additional advantage of the new Bluetooth sensors can be seen during installation.From now on, it doesn't matter which chainring is combined with which crank and bike.Installation is so simple and fits easily on any bike.The Bluetooth sensors transmit the crank movement and speed 10 times per second. This ensures precise motor control.Scope of delivery:1x Bluetooth Sensor Speed incl. button cell CR20321x O-ring set

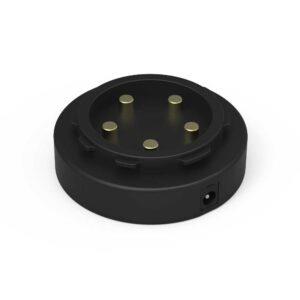

The docking station is the interface between the battery and charger. It can be charged safely and quickly with any suitable charger.The docking station is included as standard in every drive set, but can of course also be ordered separately, e.g. for additional chargers etc.

5 x 3 V lithium, 20x3.2 mm

Mini fuse in battery bottle

3 V lithium, 20x3.2 mm
